Delta 985 Series Installation Manual

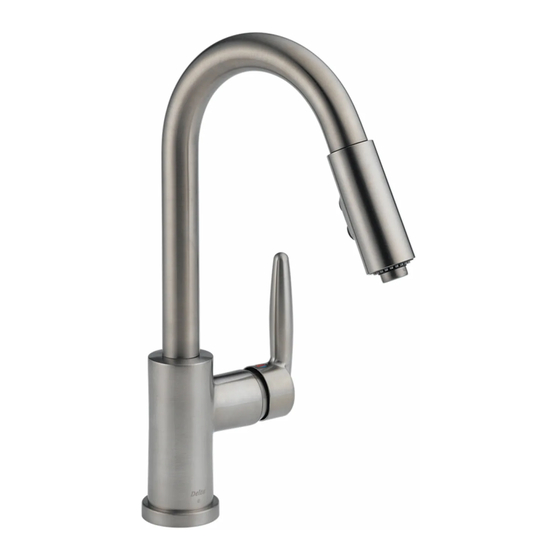

Delta grail single handle pull-down kitchen faucet installation guide
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

U P
®
CSA B125.1 / ASME A112.18.1
Model/Modelo/Modèle
985 Series/Series/Seria
WARNING: THIS FAUCET IS NOT TO BE USED WITH PORTABLE DISHWASHERS! / ADVERTENCIA: SESTA LLAVE NO SE DEBE UTILIZAR CON MAQUINAS LAVAPLATOS
PORTATILES! / AVERTISSEMENT: ON NE DOIT PAS BRANCHER UN LAVE-VAISSELE PORTATIF SUR CE ROBINET!
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
For easy installation of your Delta faucet
you will need:
•
To READ ALL the instructions completely before
beginning.
• To READ ALL warnings, care and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e información
de mantenimiento.
• Comprar las conexiones correctas para el suministro
de agua.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de
débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
C
®
GRAIL SINGLE HANDLE PULLDOWN KITCHEN
FAUCET
MEZCLADORA MONOMANDO DE JALAR HACIA
ABAJO, GRAIL
ROBINET DE CUISINE À UNE POIGNÉE ET BEC
REBAISSABLE
1
203715 Rev. D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 985 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Delta 985 Series

Summary of Contents for Delta 985 Series

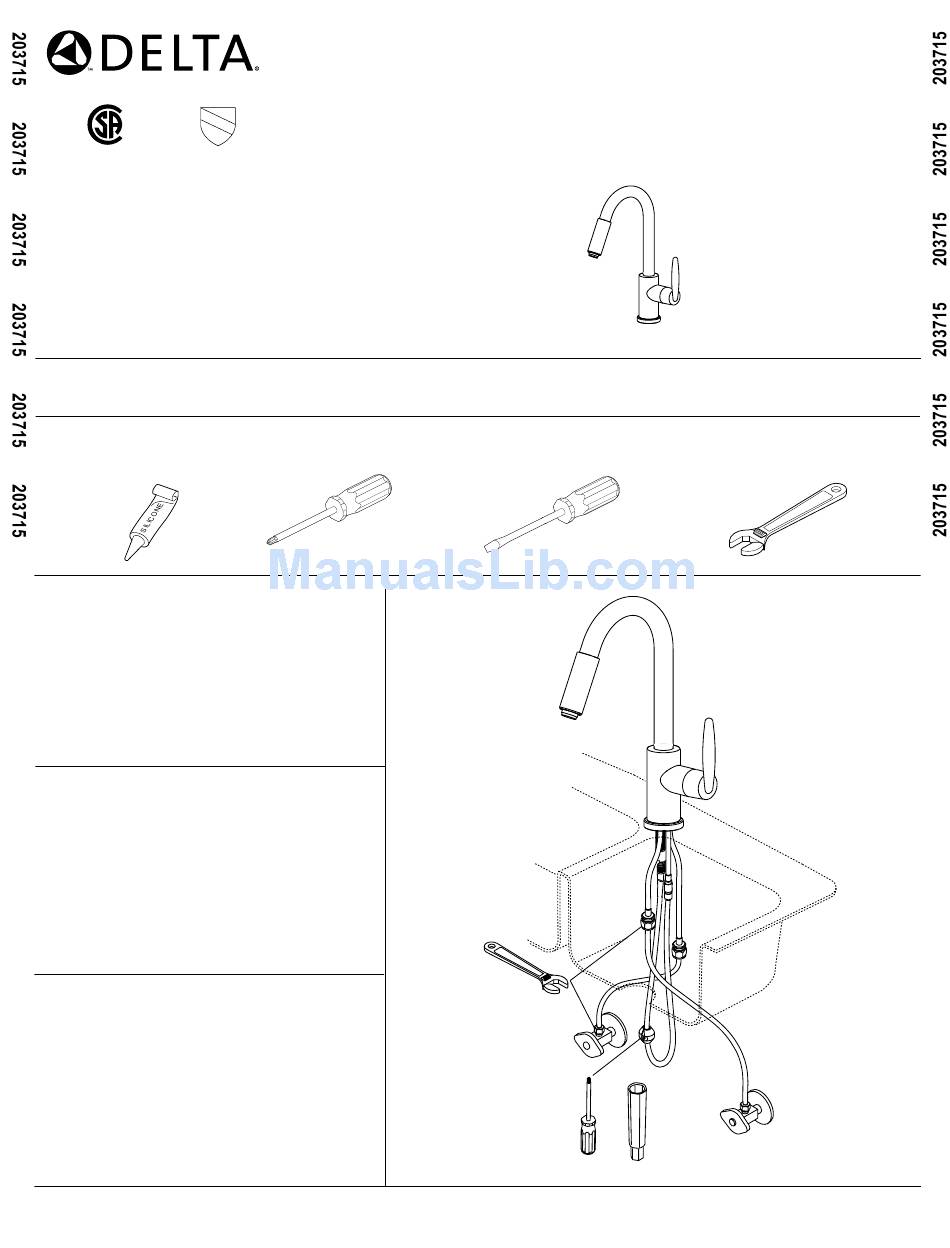

  • Page 1 WARNING: THIS FAUCET IS NOT TO BE USED WITH PORTABLE DISHWASHERS! / ADVERTENCIA: SESTA LLAVE NO SE DEBE UTILIZAR CON MAQUINAS LAVAPLATOS PORTATILES! / AVERTISSEMENT: ON NE DOIT PAS BRANCHER UN LAVE-VAISSELE PORTATIF SUR CE ROBINET! You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin: For easy installation of your Delta faucet you will need: •...
  • Page 2 Verfy that the friction washer (1), clip (2) and spout ring (3) are present on the spout assembly. Align button (4) on clip with hole in back of spout. Using back and forth motion, insert spout assembly into main hub until clip button snaps into hole in hub.
  • Page 3 Hose Installation / Instalacíon de la Manguera / Installation du tuyau souple Press fit hose guide (1) into end of hose (2) as shown. Screw the spray head (3) onto the hose fitting (4) to prevent the hose from being pulled into the spout until you are ready to flush the lines. Feed hose (2) up through spout (5).
  • Page 4 Faucet Operation and Inspection El Funcionamiento de la Llae de Agua y su Inspección Utilisation et inspection du robinet Turn on hot and cold water supplies (1). Pull the hose assembly (2) out of the spout and remove the spray head (3). Be sure to hold the end of the hose down into the sink and turn faucet handle (4) to the mixed position.
  • Page 5 RP40518 Bayonet Ring Aro de bayoneta Anneau à baïonnette RP48641 Wand Assembly Ensamble de la del Rociador Bec-douchette RP49339 Aerator Aireador Aérateur RP40530 Hose Guide Guía de la Manguera Guide-tuyau RP44647 Hose Assembly Ensamble de la Manguera Tuyau souple RP11723 Zinc Weights and Screws Pesas de Zinc y Tornillos Poids en plomb et vis...
  • Page 6 Sistema de protección contra el contraflujo Su llave de agua tipo deslizable Delta tiene un sistema de protección contra el contraflujo, incorporado, que ha sido prohabo para cumplir con los requisitos de ASME A112.18.3, CSA B125.1, ASME A112.18.1. Este incorpora en la pieza de mano dos válvulas de retención o checadoras certificadas en una serie, las cuales...
  • Page 7 Any damage to this faucet (a division of Masco Canada Limited) as a result of misuse, abuse or neglect, or any use of other than genuine Delta® replacement parts WILL VOID THE WARRANTY.
  • Page 8 Also available within the “Grail” series También disponible dentro de la serie del “Grail” Aussi disponible dans la série “Grail” Single Handle Kitchen Faucet Grifo de cocina de una manija Robinet mitigeur pour la cuisine Two Handle Widespread Lavatory Faucets Llaves de lavamanos extendidas de dos manijas Robinets à...
