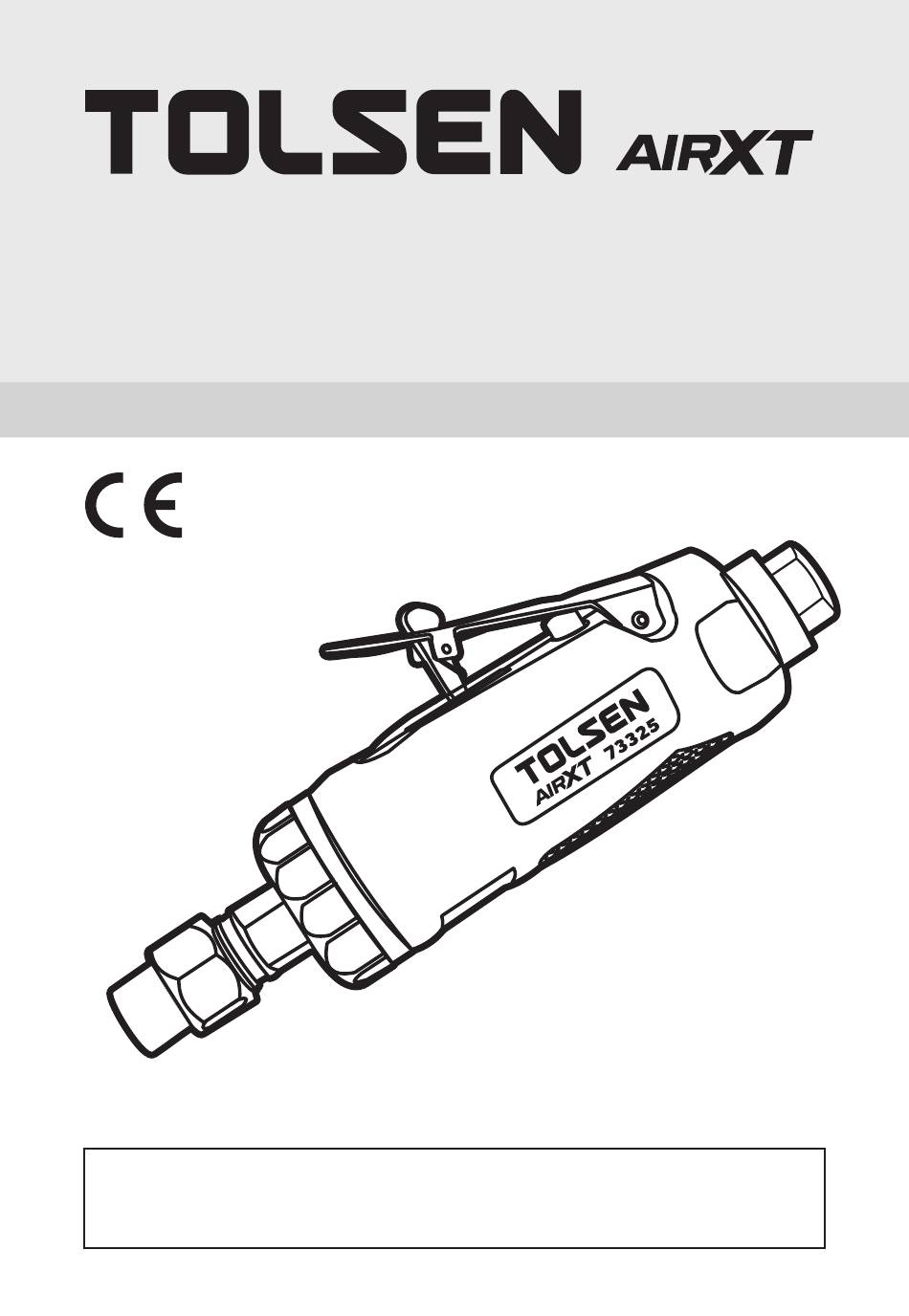

- Page 1 73325 1/4" AIR DIE GRINDER 1/4“ INSTRUCTION MANUAL SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
-
Page 2: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please contact the distributor or sales agent. WARNINGS IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY AND PROPERTY DAMAGE. -
Page 3: Risk Of Injury
RISK OF INJURY WARNINGS WHAT COULD HAPPEN HOW TO PREVENT IT A tool le unattended, or with the air hose attached, Remove air hose when tool is not in use and store tool can be activated by unauthorized persons leading to in secure location away from reach of children and their injury or injury to others. -
Page 4: Risk Of Electric Shock
RISK OF ELECTRIC SHOCK WARNINGS WHAT COULD HAPPEN HOW TO PREVENT IT Using air tools to attach electrical wiring can result Never use nail/staplers to attach electrical wiring in electrocution or death. while energized. This tool is not provided with an insulated gripping Avoid body contact with grounded surfaces such as surface. - Page 5 SETTING UP AIR LINE FOR TOOL OPERATION Air Supply Make sure that the air compressor being used for the air tool operation supplies the correct output CFM or L/min). Have the tool in the “off” position when connecting the tool to the air supply. Use normal 90 psi working pressure for best tool performance while running the tool.
-
Page 6: Specifications
SPECIFICATIONS & PACKAGING CONTENTS Specifications Item number 73325 Capacity 1/4 IN. (6.35mm) Free speed 22,000 rpm Average air consumption 127L/min(4.5 SCFM) Required air pressure 6.2 bar (90 psi) Air inlet 1/4 IN. Air hose 3/8 IN. (inside diameter) Overall length 6.70 IN. -
Page 7: Care And Maintenance
5. Remove the air cap from the tool air inlet and connect the air supply hose to the tool. Set the air pressure at 90 PSI. (See Figure 4) 6. Push forward the throttle lever lock and press down on the throttle lever. How far the throttle lever is pressed determines the tool rotation speed. -
Page 8: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Corrective Action Tool runs slowly 1. Grit or gum in tool. 1. Flush the tool with air-tool oil or gum solvent. or will not 2. No oil in tool. 2. Lubricate the tool according to the lubrication operate 3. -
Page 9: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY SUZHOU TOLSEN TOOLS CO.,LTD. 198 HUASHAN ROAD, ZHANGJIAGANG, JIANGSU, CHINA Declare that the product 73325 1/4" AIR DIE GRINDER Complies with the essential health and safety requirements of the following Directices: Machinery Directive 2006/42/EC Standards and technical specifications referred to: EN ISO 11148-9: 2011 Authorised Signatory and technical file holder... - Page 10 SUZHOU TOLSEN TOOLS CO.,LTD. www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. SCAN TO VISIT TolsenWorld MADE IN CHINA PRODUCT LINK...
