Sealey SDA05 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO
SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE
FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
IMPORTANT: This manual contains WARNINGS and INSTRUCTIONS. Equipment in this manual is exclusively for waterborne paint
drying purpose. DO NOT use for other purposes. The operator shall be fully conversant with the requirements stated in this instruction
manual, including important warnings, cautions, operation and correct handling. Read and understand the instruction manual before
use, and retain for reference.
WARNING
CAUTION
1.1. INTENDED USE
This air dryer gun is used to accelerate drying of waterborne paints. One gun is suitable for manually drying smaller areas such as
doors or fenders. The use of several air dryer guns on a stand is recommended when drying larger surfaces. The use of the dry jet
blow gun for drying solvent-based materials is considered improper use
1.2. GENERAL SAFETY
WARNING
Locate the device in an adequate working area for its function.
9
Keep area clean, tidy, and free from unrelated materials.
9
Ensure there is adequate ventilation and lighting.
9
Keep children and unauthorised persons away from the working area.
9
Before using the device, ensure all connections are tightened and secure.
9
Ensure the air supply is suitable to the dryer consumption, (see specifications).
9
Wear hearing protection whilst using the device. Noise level can exceed 78dB(A), depending on use and working conditions.
9
Wear suitable eye protection.
9
Use only with pressured air. NEVER use any other gas, as these may cause difficult breathing, serious bodily injury, fire and explosion.
9
Maintain the dryer in good condition (use an authorised service agent)
9
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Avoid unintentional operation.
9
When not in use switch the dryer off, and disconnect from the air supply.
9
Disconnect from the air supply before performing any maintenance.
9
Keep the dryer clean for best and safest performance.
9
Anti-corrosive oil is applied inside the device to reduce issues with the paint finish.
9
DO NOT exceed the maximum working pressure for the device.
8
DO NOT use near or towards a person or animal. High air pressure can cause serious injury.
8
DO NOT use the device if faulty operation. Stop immediately and find the cause. DO NOT reuse until the fault has been resolved.
8
DO NOT operate dryer if any parts are missing or damaged as this may cause failure or personal injury.
8
DO NOT use the dryer for any purpose other than for which it is designed.
8
2. INTRODUCTION

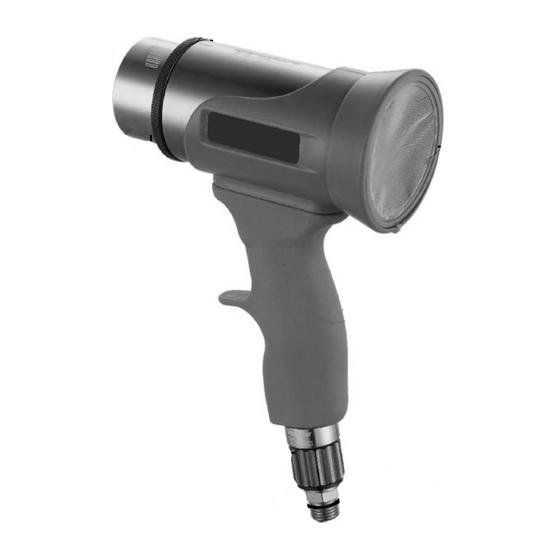

Extending body with lock ring for airflow control. Designed for drying water based paints. Panel dryer operates on workshop air supply.
Mesh filter prevents airborne particles contaminating paint surface. Adjustable airflow to regulate as required. May be handheld or
mounted on optional Double Support Stand - Model No. SDAST.
3. SPECIFICATION
Model No:.............................................................SDA05
Air Consumption: ................................. 13.4cfm @ 50psi
Air Inlet Size: ....................................................1/4"BSPT
© Jack Sealey Limited
AIR OPERATED DRYING GUN WITH
ADJUSTABLE AIRFLOW
MODEL NO:
Wear ear
protection
Indicates a potentially hazardous situation which, if not avoided, may result in serious injury or loss of life.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or
property damage.
Original Language Version
SDA05
Maximum Working Pressure: ................................. 58psi
Nett Weight: ......................................................... 0.42kg
SDA05 Issue 1 13/01/2025
