FXLuminaire CF Install Notes

INSTALL NOTES: CF
We have developed this series of field installation guidelines to assist you in correctly installing fixtures and transformers, ensuring
customer satisfaction and trouble-free service. If you have any questions, please call your local distributor or the FX TechLine at
800-733-2823 before proceeding. Follow all NEC guidelines and local electrical codes. For more information, visit: fxl.com

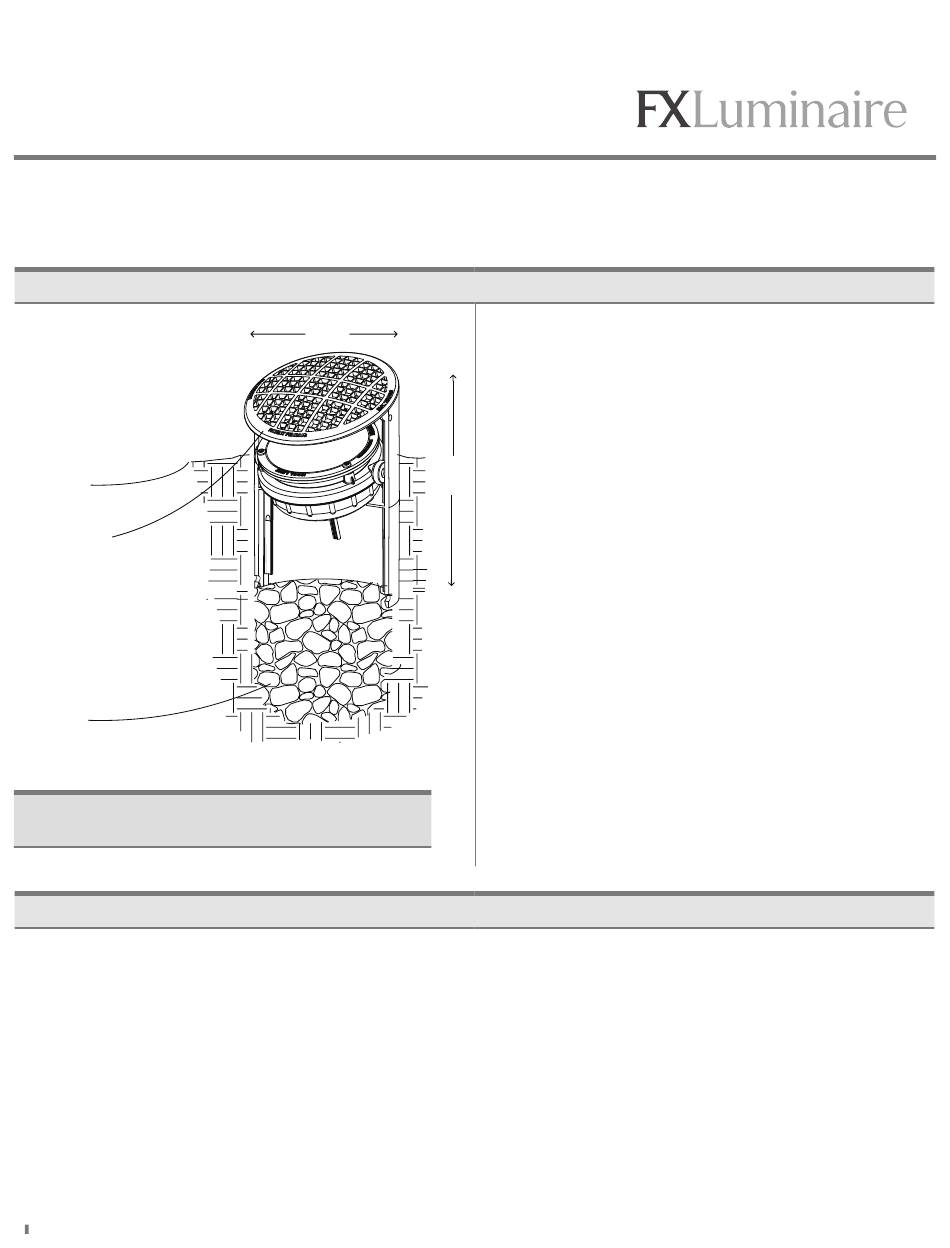

TYPICAL INSTALLATION:
INSTALL THE FX LUMINAIRE
CRATERE FURBO IN WELL DRAINED
TURF AND GRAVEL AREAS
DO NOT INSTALL IN LOCATIONS
THAT ARE SUBJECT TO
STANDING WATER AS THIS
IS NOT AN UNDERWATER LIGHT
FINISHED GRADE
SEE LIGHTING PLAN LEGEND
FOR WATTAGE AND BEAM
SPREAD. 12 VOLTS,
35 WATT MAX.
LEAVE 12" LOOP COILED
IN THE BOTTOM FOR
MAINTENANCE PURPOSES
COURSE GRAVEL
FOR DRAINAGE
RISK OF FIRE WARNING: DO NOT USE FX FIXTURES WITH ANY STYLE
OF TRANSFORMER THAT EXCEEDS 15 VOLTS ON THE SECONDARY.
SAVE THESE INSTRUCTIONS:
WARNING – To reduce the risk of FIRE OR INJURY TO PERSON:
• Turn off/unplug and allow to cool before replacing lamp.
• Lamp gets HOT quickly. Contact only switch/plug when turning on.
• Do not touch hot lens, guard, or enclosure.
• Keep lamp away from materials that may burn.
• Do not touch the lamp at any time. Use a soft cloth.
• Oil from skin may damage lamp.
• Do not operate the luminaire fitting with a missing or damaged shield.
WARNING – Risk of Electric Shock
• Install all luminaires 10 feet (3.05 m) or more from a pool, spa, or fountain.
• A luminaire shall not use tungsten halogen lamps unless the luminaire is
marked for such lamps.
Learn more about FX products. Visit fxl.com or call the techline
INSTALLATION GUIDELINES:
6.00"
9.00"
LOW VOLTAGE CABLE SHALL:
1. Be protected by routing in close proximity to the luminaire or fitting, or next
2. Not be buried except for a maximum 6 inches (15.2 cm) in order to connect
3. Have the length cut off so that it is connected to a connector within 6 inches
If using corrosion protection gel, then pump about two squeezes of gel into a
baggie and insert both Listed wirenut connections into it. Push out the air and
work the gel into the bottom of the wirenut assuring a waterproof connection.
Install the cable tie as shown and cinch down to complete the low voltage
connection. It's best to leave 12–18" of slack at each fixture to allow for reloca-
tion or if you need to splice in additional cables in the future. Since this is a
permanent splice solution—you will need to cut it off and start from scratch to
add cables to the splice.
800-733-2823
DO NOT EXCEED 35 WATTS IN THIS FIXTURE
Do not locate fixtures in areas that are prone to the
collection of combustible material such as leaves and pine
needles.
Clean out the fixture housing regularly to reduce fire hazard.
The CratereFurbo is for turf or gravel applications only — Do not
locate CF in planter areas that have ground cover because the
fixture will quickly become covered up with plant material, there-
by reducing light output. Always try to locate fixtures in well
drained soil where standing water does not collect. If installed in
low-lying area, tie into drain system by installing a catch basin in
the gravel sump below fixture housing.
For high performance and predictable lamp life, supply fixture
with between 11-11.5 volts with all lamps installed and operat-
ing. Use FX LUMINAIRE Transformers only — FX WILL NOT
WARRANTY OR REPLACE ANY COMPONENTS DAMAGED BY
OTHER MANUFACTURER'S EQUIPMENT. The FX transformer is
specifically designed for the high tech lamps used in our fixtures
— the use of inferior power supplies can cause premature lamp
failure and other problems including the risk of fire.
IMPORTANT SAFETY INSTURCTIONS WARNING: To reduce risk
of FIRE OR INJURY TO PERSONS. Turn off/unplug and allow to
cool before replacing lamp,Lamp gets HOT quickly! Contact only
switch/plug when turning on. Do not touch hot lens, guard, or
enclosure (*See drawing for location of lens) Keep away from
materials that may burn. Do not touch the lamp at any time. Use
soft cloth. Oil from skin may damage lamp. Do not operate the
luminaire fitting with missing or damaged shield.
to a building structure such as a house or deck;
to the main low voltage cable; and
(15.2 cm) from a building structure, a luminaire, or fitting.
®
FXLIT-056_CF B 04/13
