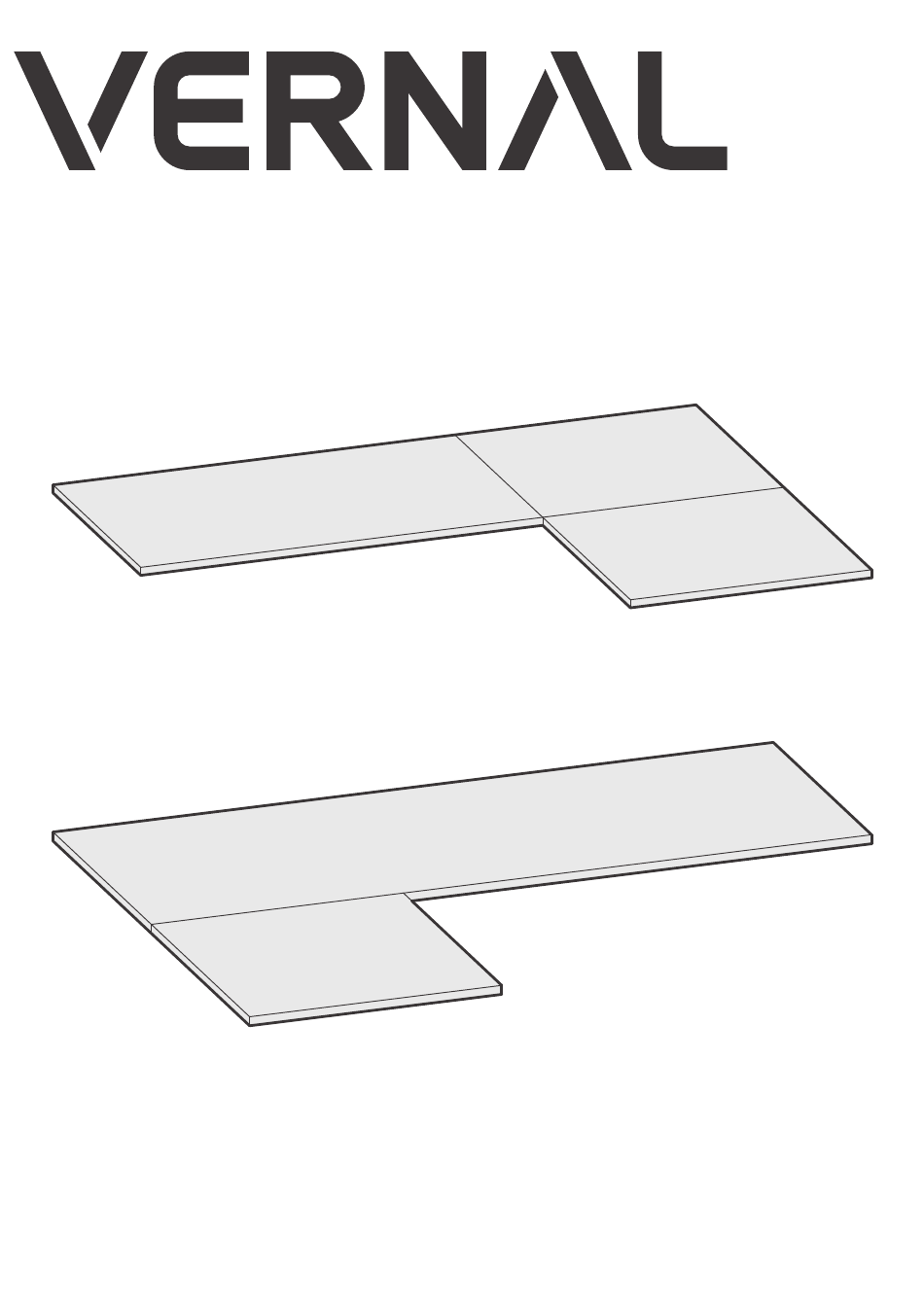

Standing Desk
For assembly assistance,
US: E-Mail: service-us@vernalspace.com
Hotline: +1 213-429-4099 (Mon-Fri 10am-12am; 1pm-6pm CST)
DE: E-Mail: service@vernalspace.com
Hotline: +49 30 83799196 (Mon-Fri 7am-1pm; 2pm-4pm CET)
UK: E-Mail: service-uk@vernalspace.com
Hotline: +44 7380 307916 (Mon-Fri 7am-10am; 11am-5pm UTC)
V1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Standing Desk and is the answer not in the manual?

Questions and answers

Related Manuals for VERNAL Standing Desk

Summary of Contents for VERNAL Standing Desk

  • Page 1 Standing Desk For assembly assistance, US: E-Mail: service-us@vernalspace.com Hotline: +1 213-429-4099 (Mon-Fri 10am-12am; 1pm-6pm CST) DE: E-Mail: service@vernalspace.com Hotline: +49 30 83799196 (Mon-Fri 7am-1pm; 2pm-4pm CET) UK: E-Mail: service-uk@vernalspace.com Hotline: +44 7380 307916 (Mon-Fri 7am-10am; 11am-5pm UTC)
  • Page 2 Warnung zur Tischplatten-Montageumgebung Table Assembly Environment Warning Wir empfehlen, den Tisch auf einer ebenen Fläche • aufzubauen. Räumen Sie den Boden auf oder prüfen Sie, ob We recommend setting up the table on a flat surface. Make sure scharfe Gegenstände vorhanden sind, um Kratzer am Tisch zu •...
  • Page 3 U.S. Region Choose the Installation Direction Pages 3-5 Pages 6-8 Contents of the Desktop Package Main desktop Extension desktop Return Corner connecto Screws Pre-Assembly Precautions A. Before assembly, inspect the top surface of the desktop for any damage. Place the desktop upside down on a clean, debris-free carpet or blanket.
  • Page 4 Three-Piece Desktop Right L-Shaped Configuration Step 1 - Identify the Desktops (R) A. The Main desktop (T1) has pre-drilled holes for installing the keypad. This side should face inward (the side for daily use). B. On the Extension desktop (T2), one of the four edges has only four holes. This edge should align with the side of the main desktop that has the pre-drilled keypad holes and face inward.
  • Page 5 Tip: Lightly screw in each bolt, but do not fully tighten them yet. Once all screws for this step are in place, tighten them one by one or in a crisscross pattern. Step 3 - Connect the Extension Desktop and Return (R) A.
  • Page 6 Tip: Lightly screw in each bolt, but do not fully tighten them yet. Once all screws for this step are in place, tighten them one by one or in a crisscross pattern. Assembly Complete (R) You’re awesome! The desktop assembly is now complete.
  • Page 7 Three-Piece Desktop Left L-Shaped Configuration Step 1 - Identify the Desktops (L) A. The Main desktop (T1) has pre-drilled holes for installing the keypad. This side should face inward (the side for daily use). B. On the Extension desktop (T2), one of the four edges has only four holes. This edge should align with the side of the main desktop that has the pre-drilled keypad holes and face inward.
  • Page 8 Tip: Lightly screw in each bolt, but do not fully tighten them yet. Once all screws for this step are in place, tighten them one by one or in a crisscross pattern. Step 3 - Connect the Extension Desktop and Return (L) A.
  • Page 9 Tip: Lightly screw in each bolt, but do not fully tighten them yet. Once all screws for this step are in place, tighten them one by one or in a crisscross pattern. Assembly Complete (L) You’re awesome! The desktop assembly is now complete.
  • Page 10 European Region Europäische Region Choose the Installation Direction Wählen Sie die Montagerichtung Pages 10-12 Pages 13-15 Contents of the Desktop Package Inhalt des Tischplattenpakets Main desktop Haupttischplatte Return Corner connecto Screws Erweiterungsplatte Winkelverbinder Maschinenschrauben...
  • Page 11 Pre-Assembly Precautions Vorsichtsmaßnahmen vor der Montage A. Before assembly, inspect the top surface of the desktop for any damage. Place the desktop upside down on a clean, debris-free carpet or 　 blanket. Ensure the desktop is upside down, with pre-drilled holes or embedded nuts visible and facing up. Slide the smaller return desktop 　...
  • Page 12 Note: The keypad’s mounting holes should face inward. Hinweis: Die Befestigungslöcher für das Bedienfeld sollten nach innen zeigen. Step 2 - Connect the Main Desktop and Return (R) A. The Main desktop (T1) has pre-drilled holes for installing the keypad. This side should face inward (the side for daily use). B.
  • Page 13 Tip: Lightly screw in each bolt, but do not fully tighten them yet. Once all screws for this step are in place, tighten them one by one or in a crisscross pattern. Tipp: Ziehen Sie jede Schraube zunächst leicht an, aber nicht vollständig.
  • Page 14 Two-Piece Desktop Left L-Shaped Configuration Zweiteilige Tischplatte, linke L-Form Step 1 - Identify the Desktops (L) A. The Main desktop (T1) has pre-drilled holes for installing the keypad. This side should face inward (the side for daily use). B. The Return (T2) is the smaller desktop. Among its four edges, there are two sets of closely spaced holes. The spacing of the four embedded nuts should match the inward-facing embedded nuts on the Main desktop (T1).
  • Page 15 Step 2 - Connect the Main Desktop and Return (L) A. The Main desktop (T1) has pre-drilled holes for installing the keypad. This side should face inward (the side for daily use). B. On the Return (T2), two sets of closely spaced holes are located on one of the four edges. The spacing of the four embedded nuts should 　...
  • Page 16 Tip: Lightly screw in each bolt, but do not fully tighten them yet. Once all screws for this step are in place, tighten them one by one or in a crisscross pattern. Tipp: Ziehen Sie jede Schraube zunächst leicht an, aber nicht vollständig.
