VERNAL L-shaped Standing Desk Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Standing Desk
For assembly assistance,
US: E-Mail: service-us@vernalspace.com
Hotline: +1 213-429-4099
(Mon-Fri. 10am-12am;1pm-6pm CST)
UK: E-Mail: service-uk@vernalspace.com
Hotline: +44 7380 307916
(Mon.-Fri. 7am-10am; 11am-5pm UTC)
Installation Video
V1

Advertisement

loading
Need help?

Need help?

Do you have a question about the L-shaped Standing Desk and is the answer not in the manual?

Questions and answers

Related Manuals for VERNAL L-shaped Standing Desk

Summary of Contents for VERNAL L-shaped Standing Desk

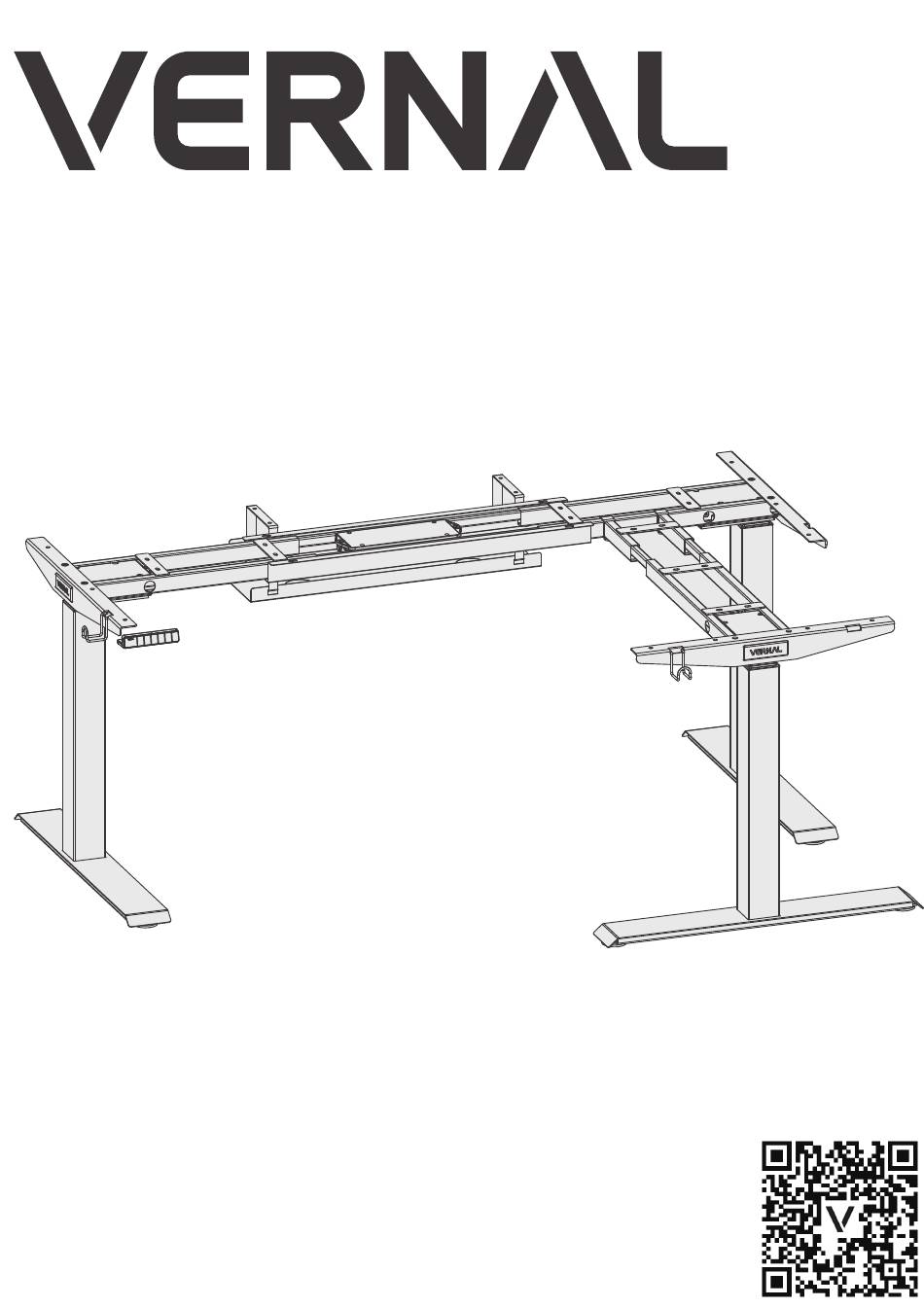

  • Page 1 Standing Desk Installation Video For assembly assistance, US: E-Mail: service-us@vernalspace.com Hotline: +1 213-429-4099 (Mon-Fri. 10am-12am;1pm-6pm CST) UK: E-Mail: service-uk@vernalspace.com Hotline: +44 7380 307916 (Mon.-Fri. 7am-10am; 11am-5pm UTC)
  • Page 2 Caution • Keep children and animals away from the desk during use. Ensure the desktop is not touching any walls. • Remove obstacles taller than 20"/51cm from underneath the desk. • Operate only in a working environment temperature of 32°F-104°F/0°C-40°C. •...
  • Page 3 Healthy Working Habit Sitting Reference 1. Desk Height • The desk height should match the user’s height, allowing the arms to rest 　 50-70cm 　 naturally on the desk with a 90° bend at the elbows. • Reference height (DIN standard, Germany): Generally recommended to be 　...
  • Page 4 Contents of the Frame Package A C-Foot Contents of the Frame Package B C-Side Bracket L Crossbar End C-Side Bracket R Side Corner Crossbar T-Side Bracket K13 Keypad C-Crossbar Rail T-Crossbar Rail Control Box Cable Cover Plate Control Box Control Box Power...
  • Page 5 M6 Allen Wrench Flat Head Screw Flat Head Screw Machine Screw For Legs, Frame, For Crossbar End and (When using a Vernal desktop) Foot, Side Wings Side Brackets For Desktop and Crossbar End、 (L/R) Side Brackets、 Control Box Cable Cover Plate、...

  • Page 6: Product Exploded View

    Product Exploded View...
  • Page 7 Left Installation and Right Installation Methods Pages 7-28 Pages 29-50...
  • Page 8 Right Installation Method Let's move towards success with a relaxed start !
  • Page 9 Unbox and Identify Your Parts Step 1 - Parts List A. Pre-Assembly Preparation Hey there! To make things easier (and safer), we recommend having 2-3 people help out with the assembly. Before you start, think about 　 　 where the desk will go and make sure there’s enough room to set it up. Since the desk is pretty big and needs to be flipped over after 　...
  • Page 10 C. Using the Allen Wrench (H1), insert 4 M6x18 Flat Head Screws (H2) through the holes in the crossbar end and into the leg. Do not fully tighten 　 the screws at this stae. Tips: To prevent Screws from repeatedly falling into the P2 (Crossbar End) tube, use the H10 (Screw Guide Sleeve) during assembly.
  • Page 11 Instructions for Installing the Frame Assemblies Step 3 - Install C-Side Bracket (Left) Once all 4 screws from Step 3 are inserted, use the H1 (M6 Allen Wrench) to fully tighten them. A. Align the side screw holes of the P3 (C-Side Bracket) with the holes on the side of the P1 (Leg) near the motor. Insert two H2 (M6 x 18mm Flat 　...
  • Page 12 Instructions for Installing the Frame Assemblies Step 4 - Install C-Side Bracket (Right) Once all 4 screws from Step 4 are inserted, use the H1 (M6 Allen Wrench) to fully tighten them. A. Align the side screw holes of the P3 (C-Side Bracket) with the holes on the side of the P1 (Leg) near the motor. Insert two H2 (M6 x 18mm Flat 　...
  • Page 13 Instructions for Installing the Frame Assemblies Step 5 - Install T-Side Bracket Once all 4 screws from Step 4 are inserted, use the H1 (M6 Allen Wrench) to fully tighten them. A. Align the side screw holes of the P4 (T-Side Bracket) with the holes on the side of the P1 (Leg) near the motor. Insert two H2 (M6 x 　 　...
  • Page 14 Vernal L-Standing desk. A. If you chose a desktop from Vernal, place the side with the exposed embedded nuts facing up – this will be the surface you use to 　 　 assemble the desk.
  • Page 15 Instructions for Connecting the Frame Assembly to the Tabletop Step 8 - Press the Right C-Frame into the Side Corner Crossbar For Right L-Standing Desk Desktop Configuration: A. Press the assembled right frame’s P2 (Crossbar End) into 　 　 the hooks of the P5 (Side Corner Crossbar). B.
  • Page 16 Instructions for Connecting the Frame Assembly to the Tabletop Step 9 - Insert C-Crossbar Rail A. Slide the P6 (C-Crossbar Rail) into the P2 (Crossbar End) of the right C-frame leg assembly, as shown in the diagram. Important Note: The P6 (C-Crossbar Rail) is the longer rail designed for use with the C-frame on the T1 (Main desktop). Using the wrong rail will prevent further assembly of the desk.
  • Page 17 Instructions for Connecting the Frame Assembly to the Tabletop Step 11 - Place the T-Frame and Left C-Frame onto the Desktop and Insert the Crossbar Rail A. Insert the P2 (Crossbar End) of the T-frame assembly into the P7 (T-Crossbar Rail) on the desktop, as shown in the diagram. B.
  • Page 18 　 holes and secure it by inserting two H4 (M6 x 10mm 　 　 　 Machine Screws), as shown in the diagram. When using a Vernal brand desktop: H4-M6x10 When using a non-Vernal brand desktop without pre-installed nut holes for alignment: H9-ST4.8x13.5...
  • Page 19 　 the screws yet – wait until all screws from this step are 　 　 inserted before tightening them completely. When using a non-Vernal desktop without aligned embedded nut holes A. Press the right C-frame into the hooks of the P5 (Side 　 　...
  • Page 20 Instructions for Connecting the Frame Assembly to the Tabletop Step 14- Position C-Center Rail A. Slide the P6 (C-Crossbar Rail) left or right until the center indicator mark is roughly positioned between the two P2 (Crossbar Ends). B. Insert four H5 (M8 x 16mm Set Screws) into each P2 (Crossbar End) and tighten them. Tip: Ensure all eight H5 (Set Screws) make contact with the P6 (C-Crossbar Rail) inside the P2 (Crossbar End).
  • Page 21 Instructions for Connecting the Frame Assembly to the Tabletop Step 15 - Position T-Center Rail A. Slide each P7 (Side Corner Crossbar) left or right within the T-frame until the indicator mark is roughly positioned between the P2 　 　 　...
  • Page 22 Instructions for Installing the K13 Keypad and Control Box Step 16 - Install Keypad L-shaped desktop in North America L-shaped desktop in Europe The desktop has two sets of pre-drilled holes on each side to allow for left or right placement of the P8 (K13 Keypad). If your desktop does not have pre-drilled holes for installing the P8 (K13 Keypad), place the keypad in the approximate position shown in the diagram.
  • Page 23 Instructions for Installing the K13 Keypad and Control Box Step 17 - Install Control Box A. The desktop has pre-drilled holes at the center of the adjustable frame for installing the P9 (Control Box). Use a Phillips screwdriver 　 and secure the control box to the desktop with two H7 (ST3.5 x 15mm Wood Screws). B.
  • Page 24 Step 19 - Install Wire Management Tray Hook Most Vernal desktops have four embedded nuts near the rear of the desktop for installing the included P12 (Wire Management Tray Hook). Before installation, ensure the P12 (Wire Management Tray Hook) is positioned correctly, as shown in the diagram.
  • Page 25 Instructions for Installing the Feet Step 20 - Install C-Foot Note: Ensure the long end of the desk feet faces forward (toward the P8 (K13 Keypad)) and aligns with the long end of the P3 (C-Side Bracket L/R). The bottom of the P1 (Leg) should fit into the rectangular slot of the desk foot. Short Long long edge facing...
  • Page 26 Instructions for Installing the Feet Step 21 - Install T-Foot A. Place one P14 (T-Foot) on top of the P1 (Leg) in the T-frame, as 　 shown in the diagram. B. Insert four H2 (M6 x 14mm Flat Head Screws) into the screw 　 　...
  • Page 27 Accessory Installation Instructions Step 22 - Flip the Desk Over The weight of the desk varies depending on the size you purchased. Ensure at least two people are involved in flipping the desk to avoid injury or damage. Be mindful of the flipping direction and take care not to press down on the P8 (K13 Keypad) during the process.
  • Page 28 Accessory Installation Instructions Step 24 - Bend and Install Wire Management Tray A. Carefully bend the P17 (Wire Management Tray) along the 　 dotted lines. Apply even pressure to avoid uneven 　 　 　 　 deformation of the metal panel. B.
  • Page 29 Installation Successful You’re amazing! The installation is now complete. Enjoy experiencing your Vernal Standing Desk!
  • Page 30 Left Installation Method Let's move towards success with a relaxed start !

  • Page 31: Parts List

    Parts List Step 1 - Parts List A. Pre-Assembly Preparation Hey there! To make things easier (and safer), we recommend having 2-3 people help out with the assembly. Before you start, think about 　 　 where the desk will go and make sure there’s enough room to set it up. Since the desk is pretty big and needs to be flipped over after 　...
  • Page 32 C. Using the Allen Wrench (H1), insert 4 M6x18 Flat Head Screws (H2) through the holes in the crossbar end and into the leg. Do not fully tighten 　 the screws at this stae. Tips: To prevent Screws from repeatedly falling into the P2 (Crossbar End) tube, use the H10 (Screw Guide Sleeve) during assembly.
  • Page 33 Instructions for Installing the Frame Assemblies Step 3 - Install C-Side Bracket (Left) Once all 4 screws from Step 3 are inserted, use the H1 (M6 Allen Wrench) to fully tighten them. A. Align the side screw holes of the P3 (C-Side Bracket) with the holes on the side of the P1 (Leg) near the motor. Insert two H2 (M6 x 18mm Flat 　...
  • Page 34 Instructions for Installing the Frame Assemblies Step 4 - Install C-Side Bracket (Right) Once all 4 screws from Step 4 are inserted, use the H1 (M6 Allen Wrench) to fully tighten them. A. Align the side screw holes of the P3 (C-Side Bracket) with the holes on the side of the P1 (Leg) near the motor. Insert two H2 (M6 x 18mm Flat 　...
  • Page 35 Instructions for Installing the Frame Assemblies Step 5 - Install T-Side Bracket Once all 4 screws from Step 4 are inserted, use the H1 (M6 Allen Wrench) to fully tighten them. A. Align the side screw holes of the P4 (T-Side Bracket) with the holes on the side of the P1 (Leg) near the motor. Insert two H2 (M6 x 　 　...
  • Page 36 Vernal L-Standing desk. A. If you chose a desktop from Vernal, place the side with the exposed embedded nuts facing up – this will be the surface you use to 　 　 assemble the desk.
  • Page 37 Instructions for Connecting the Frame Assembly to the Tabletop Step 8 - Press the Left C-Frame into the Side Corner Crossbar For Left L-Standing Desk Desktop Configuration: A. Press the assembled left frame’s P2 (Crossbar End) into the 　 hooks of the P5 (Side Corner Crossbar). B.
  • Page 38 Instructions for Connecting the Frame Assembly to the Tabletop Step 9 - Insert C-Crossbar Rail A. Slide the P6 (C-Crossbar Rail) into the P2 (Crossbar End) of the left C-frame leg assembly, as shown in the diagram. Important Note: The P6 (C-Crossbar Rail) is the longer rail designed for use with the C-frame on the T1 (Main desktop). Using the wrong rail will prevent further assembly of the desk.
  • Page 39 Instructions for Connecting the Frame Assembly to the Tabletop Step 11 - Place the T-Frame and Right C-Frame onto the Desktop and Insert the Crossbar Rail A. Insert the P2 (Crossbar End) of the T-frame assembly into the P7 (T-Crossbar Rail) on the desktop, as shown in the diagram. B.
  • Page 40 　 holes and secure it by inserting two H4 (M6 x 10mm 　 　 　 Machine Screws), as shown in the diagram. When using a Vernal brand desktop: H4-M6x10 When using a non-Vernal brand desktop without pre-installed nut holes for alignment: H9-ST4.8x13.5...
  • Page 41 　 the screws yet – wait until all screws from this step are 　 　 inserted before tightening them completely. When using a non-Vernal desktop without aligned embedded nut holes A. Press the right C-frame into the hooks of the P5 (Side 　 　...
  • Page 42 Instructions for Connecting the Frame Assembly to the Tabletop Step 14- Position C-Center Rail A. Slide the P6 (C-Crossbar Rail) left or right until the center indicator mark is roughly positioned between the two P2 (Crossbar Ends). B. Insert four H5 (M8 x 16mm Set Screws) into each P2 (Crossbar End) and tighten them. Tip: Ensure all eight H5 (Set Screws) make contact with the P6 (C-Crossbar Rail) inside the P2 (Crossbar End).
  • Page 43 Instructions for Connecting the Frame Assembly to the Tabletop Step 15 - Position T-Center Rail A. Slide each P7 (Side Corner Crossbar) left or right within the T-frame until the indicator mark is roughly positioned between the P2 　 　 　...
  • Page 44 Instructions for Installing the K13 Keypad and Control Box Step 16 - Install Keypad L-shaped desktop in North America L-shaped desktop in Europe The desktop has two sets of pre-drilled holes on each side to allow for left or right placement of the P8 (K13 Keypad). If your desktop does not have pre-drilled holes for installing the P8 (K13 Keypad), place the keypad in the approximate position shown in the diagram.
  • Page 45 Instructions for Installing the K13 Keypad and Control Box Step 17 - Install Control Box A. The desktop has pre-drilled holes at the center of the adjustable frame for installing the P9 (Control Box). Use a Phillips screwdriver 　 and secure the control box to the desktop with two H7 (ST3.5 x 15mm Wood Screws). B.
  • Page 46 Step 19 - Install Wire Management Tray Hook Most Vernal desktops have four embedded nuts near the rear of the desktop for installing the included P12 (Wire Management Tray Hook). Before installation, ensure the P12 (Wire Management Tray Hook) is positioned correctly, as shown in the diagram.
  • Page 47 Instructions for Installing the Feet Step 20 - Install C-Foot Note: Ensure the long end of the desk feet faces forward (toward the P8 (K13 Keypad)) and aligns with the long end of the P3 (C-Side Bracket L/R). The bottom of the P1 (Leg) should fit into the rectangular slot of the desk foot. Short Long long edge facing...
  • Page 48 Instructions for Installing the Feet Step 21 - Install T-Foot A. Place one P14 (T-Foot) on top of the P1 (Leg) in the T-frame, as 　 shown in the diagram. B. Insert four H2 (M6 x 14mm Flat Head Screws) into the screw 　 　...
  • Page 49 Accessory Installation Instructions Step 22 - Flip the Desk Over The weight of the desk varies depending on the size you purchased. Ensure at least two people are involved in flipping the desk to avoid injury or damage. Be mindful of the flipping direction and take care not to press down on the P8 (K13 Keypad) during the process.
  • Page 50 Accessory Installation Instructions Step 24 - Bend and Install Wire Management Tray A. Carefully bend the P17 (Wire Management Tray) along the 　 dotted lines. Apply even pressure to avoid uneven 　 　 　 　 deformation of the metal panel. B.
  • Page 51 Installation Successful You’re amazing! The installation is now complete. Enjoy experiencing your Vernal Standing Desk!
  • Page 52 (K13 Keypad) Hand Controller User Instructions Press and hold the " " button for 5 seconds to automatically enter the initialization mode. The desk will move to the lowest position at 50% speed. Press any button to stop the initialization. When the initialization is complete, the buzzer will sound, indicating a Reset Function successful reset.
  • Page 53 Lock: Press and hold both the " " and " " buttons for 5 seconds. When the display shows "Loc," the system is locked, and height adjustment operations are disabled. Child Lock Unlock: Press and hold both the " " and " "...
  • Page 54 FAQ(Frequently Asked Questions) Possible Causes: 1.System malfunction. 2.Firmware or connection issues. Error Codes on Solutions: Hand Controller 1.Check all cables to ensure they are securely plugged in, and perform the reset procedure mentioned above. 2.Power off for 30 seconds, then power on again and perform the reset procedure mentioned above.

  • Page 55: Error Code

    Error Code Description Solution Main power voltage exceeds 45V. Unplug and replug the power cord. The height of the two desk legs is Reset the system. inconsistent. Hand controller connection or Disconnect and reconnect hand control- communication error. ler cable. Release the button and restart Obstacle detected.
  • Page 56 Error Code Description Solution Disconnect and reconnect the cables Motor 2 disconnected. between the control box and the legs. Motor 2 current sampling channel Please contact our custumer error. service team. Motor 2 phase missing, a phase Please contact our custumer wire is disconnected.
