Impact Resistant Solid Surface Sink (Wall-Mount)
Installation Instructions
Table of Contents
Supplies Required
Assembly of Components
Step 1: Rough-Ins and Dimensions
Step 2: Lavatory Bowl Mounting
Stef 3: Drain Connection
Cleaning and Maintenance
Supplies Required by Installer
·
(4) 3/8'' wall anchors, fasteners and 1'' minimum diameter washers to mount support brackets to wall (minimum pull-out rating of 1,000 lbs.)
·
ADA, ANSI and UFAS Compliant
706.705.1500 besafepro.com
#ET710
ontinued...
Advertisement
Related Manuals for BSP ET710
Summary of Contents for BSP ET710

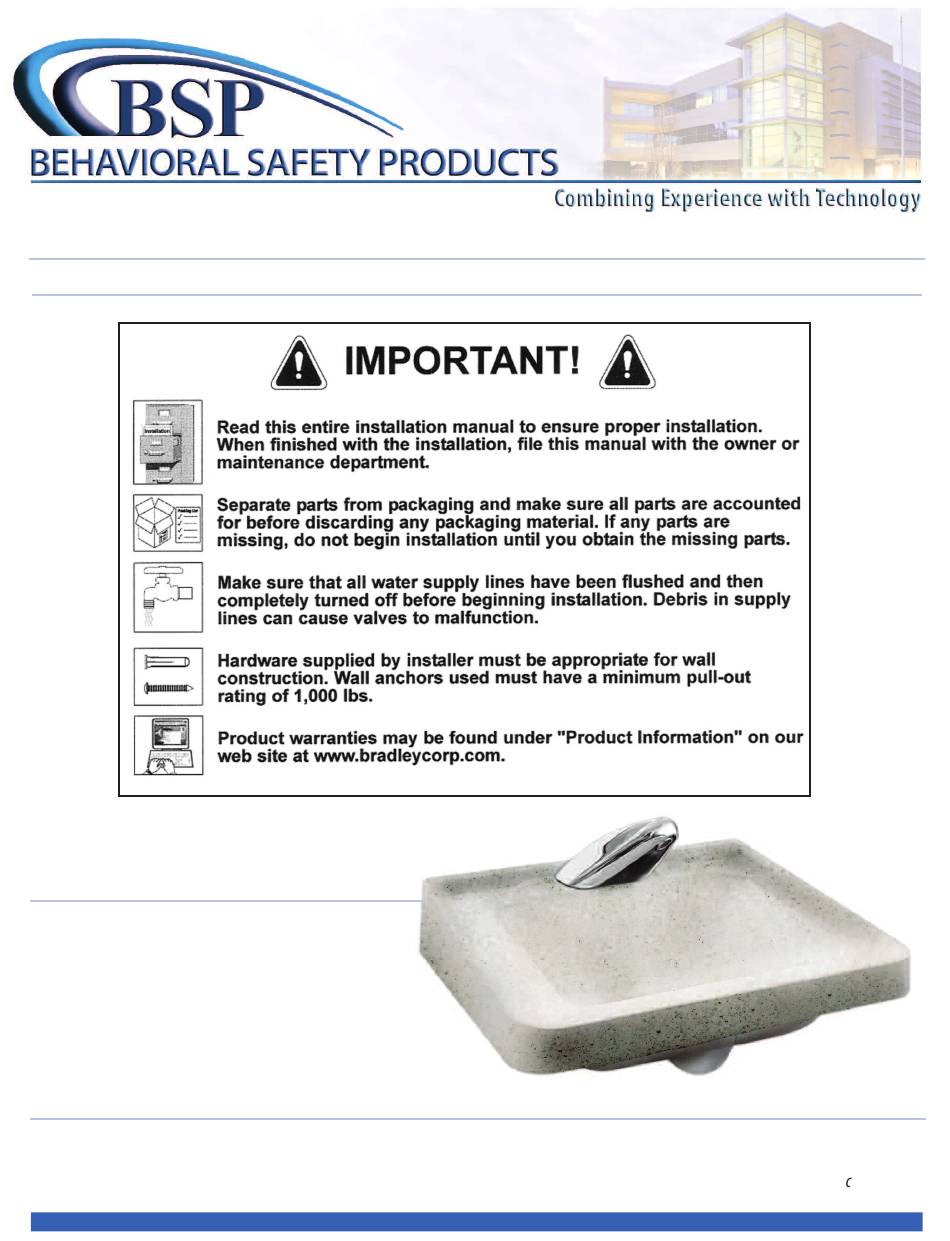

- Page 1 Impact Resistant Solid Surface Sink (Wall-Mount) #ET710 Installation Instructions Table of Contents Supplies Required Assembly of Components Step 1: Rough-Ins and Dimensions Step 2: Lavatory Bowl Mounting Stef 3: Drain Connection Cleaning and Maintenance Supplies Required by Installer · (4) 3/8'' wall anchors, fasteners and 1'' minimum diameter washers to mount support brackets to wall (minimum pull-out rating of 1,000 lbs.) ·...
- Page 2 #ET710 Impact Resistant Solid Surface Sink, ontinued… Assembly of Components ET710/TL-18 Lavatory Bowl Support Bracket (140-1009) Strainer (269-1839) Rubber Washer P-Trap (Polyprophylene) P-Trap (Optional Chrome) Fiber Washer (269-1697) (S29-094) 1) Rough-Ins for ET710 706.705.1500 besafepro.com...
- Page 3 #ET710 Impact Resistant Solid Surface Sink, ontinued… Dimensions Front View Top View Optional Centershank, 4’’set and 8’’set faucet holes not shown Side View 2) Lavatory Bowl Mounting Attach the support bracket to the wall with appropriate hardware (supplied by the installer) Position the bowl onto the support brack and mark the two upper anchor locations.
- Page 4 #ET710 Impact Resistant Solid Surface Sink, ontinued… 3) Drain Connection Install the strainer in the drain hole. Beneath the bowl, secure the rubber washer, fiber washer and nut onto the strainer. Connect to P-Trap to the strainer and to the drain stub-out from the wall.
