2/3/23, 8:22 AM

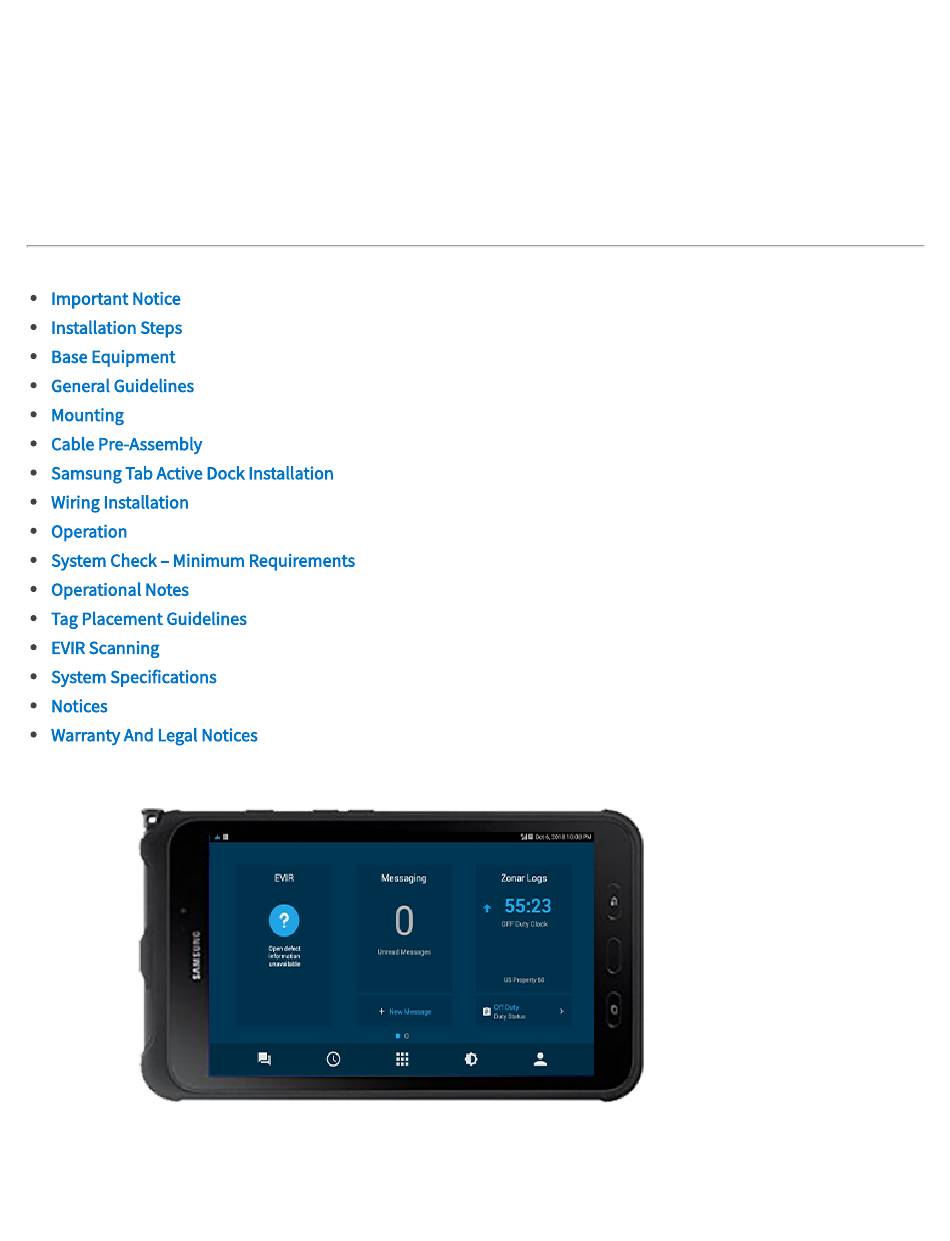

Samsung Tab Active Tablet
Installation Guide
Last edited on · July 13, 2022
Important Notice
Installation Steps
Base Equipment
General Guidelines
Mounting
Cable Pre-Assembly
Samsung Tab Active Dock Installation
Wiring Installation
Operation
System Check – Minimum Requirements
Operational Notes
Tag Placement Guidelines
EVIR Scanning
System Specifications
Notices
Warranty And Legal Notices
Important Notice
https://support.zonarsystems.net/hc/en-us/articles/360025527311-Samsung-Tab-Active-Tablet-Installation-Guide
Samsung Tab Active Tablet Installation Guide – Zonar Systems Support
1/13
Advertisement
Table of Contents
Related Manuals for Samsung Tab Active
Summary of Contents for Samsung Tab Active
- Page 1 2/3/23, 8:22 AM Samsung Tab Active Tablet Installation Guide – Zonar Systems Support Samsung Tab Active Tablet Installation Guide Last edited on · July 13, 2022 Important Notice Installation Steps Base Equipment General Guidelines Mounting Cable Pre-Assembly Samsung Tab Active Dock Installation...
-
Page 2: Installation Steps
2/3/23, 8:22 AM Samsung Tab Active Tablet Installation Guide – Zonar Systems Support It is the Ownerʼs sole responsibility to install and use Zonar products in a manner that will not cause accidents, personal injury or property damage. For the purposes of this notice, “Owner”, “you” and “your” means the party (including any person authorized by that party to use and/or install the Product) that has either: (a) purchased the Product;... - Page 3 2/3/23, 8:22 AM Samsung Tab Active Tablet Installation Guide – Zonar Systems Support Route the power serial cable through the ☐ dashboard to the mounting location. Re-connect the vehicle battery (if previously ☐ disconnected). ☐ Start vehicle engine. Make sure the telematics box has 3 solid LEDs ☐...
-
Page 4: Base Equipment
2/3/23, 8:22 AM Samsung Tab Active Tablet Installation Guide – Zonar Systems Support Base Equipment A. Samsung Tab Active Tablet D. Telematics Unit (V4) B. Vehicle Dock E. Power/Serial Cable C. RAM Mount with Backing Plate https://support.zonarsystems.net/hc/en-us/articles/360025527311-Samsung-Tab-Active-Tablet-Installation-Guide 4/13... -
Page 5: General Guidelines
2/3/23, 8:22 AM Samsung Tab Active Tablet Installation Guide – Zonar Systems Support General Guidelines Drill Holes 1. Do not drill into the tablet or the dock unit. This will void the warranty. 2. Capture all drill chips during drilling. Do not allow chips to fall onto equipment, furnishings, etc. - Page 6 Ensure that the placement of the tablet allows drivers and co-drivers to easily dock and undock the tablet. Ensure the mounting surface is strong enough to support the RAM mount and Tab Active tablet. Use the backing plate to secure the mount.
- Page 7 2/3/23, 8:22 AM Samsung Tab Active Tablet Installation Guide – Zonar Systems Support Do not mount the tablet in front of an open AC or heater. If unable to install elsewhere, close the vent in front of which the tablet is installed.
-
Page 8: Wiring Installation
5. Attach the last two Molex connections on the cable bundle to the telematics unit. Connect the 4-pin connector last. 6. Remove the tablet from its packaging and attach the provided case. 7. Align the pins on the side of the Tab Active tablet with the terminal points on the dock. The screen should be facing out. -
Page 9: Operational Notes
2/3/23, 8:22 AM Samsung Tab Active Tablet Installation Guide – Zonar Systems Support 12. Secure the USB cable to the dock with the USB clamp. 13. Mount the dock to the vehicle with the clamp. Position the tablet to face the driver, then tighten the mount clamp. -
Page 10: System Specifications
2/3/23, 8:22 AM Samsung Tab Active Tablet Installation Guide – Zonar Systems Support Tablet must be fully docked to send most data to Zonar servers. Power button: Press and release to power-on, wake and place in sleep mode. Press and hold to power down unit. - Page 11 2/3/23, 8:22 AM Samsung Tab Active Tablet Installation Guide – Zonar Systems Support Tab Active 2 Tab Active3 PHYSICAL Weight 417g / 0.92 lbs (tablet) 427g / 0.94 lbs (tablet) Dimensions 5.0 x 8.5 x 0.4 inches 5.0 x 8.5 x 0.4 inches...
- Page 12 2/3/23, 8:22 AM Samsung Tab Active Tablet Installation Guide – Zonar Systems Support BATTERY 4450mAh capacity, user- 5,050 mAh capacity, user- replaceable replaceable VEHICLE POWER 8 VDC -30 VDC vehicle 8 VDC -30 VDC vehicle Voltage battery battery <1 mA with tablet <1 mA with tablet...
- Page 13 2/3/23, 8:22 AM Samsung Tab Active Tablet Installation Guide – Zonar Systems Support Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
