Quanturi HAYTECH User Manual page 13

Repeater (optional)
1
A repeater extends the reach between the base station and the probes.
The distance between the base station and the repeater is ideally less
than 200 meters. Install the repeater on a wall and connect it to an
electrical outlet with the power cord.
The blue light will turn solid after
you have plugged the power cord
into an electrical outlet. Before
turning the repeater on make
sure that the base station is on.
For repeaters with

a version starting
with QNT-306
If the light of the repeater stays
circulating, it means it is too far
away from the base station. Move
it closer to the base station.
Wireless probes
2
1

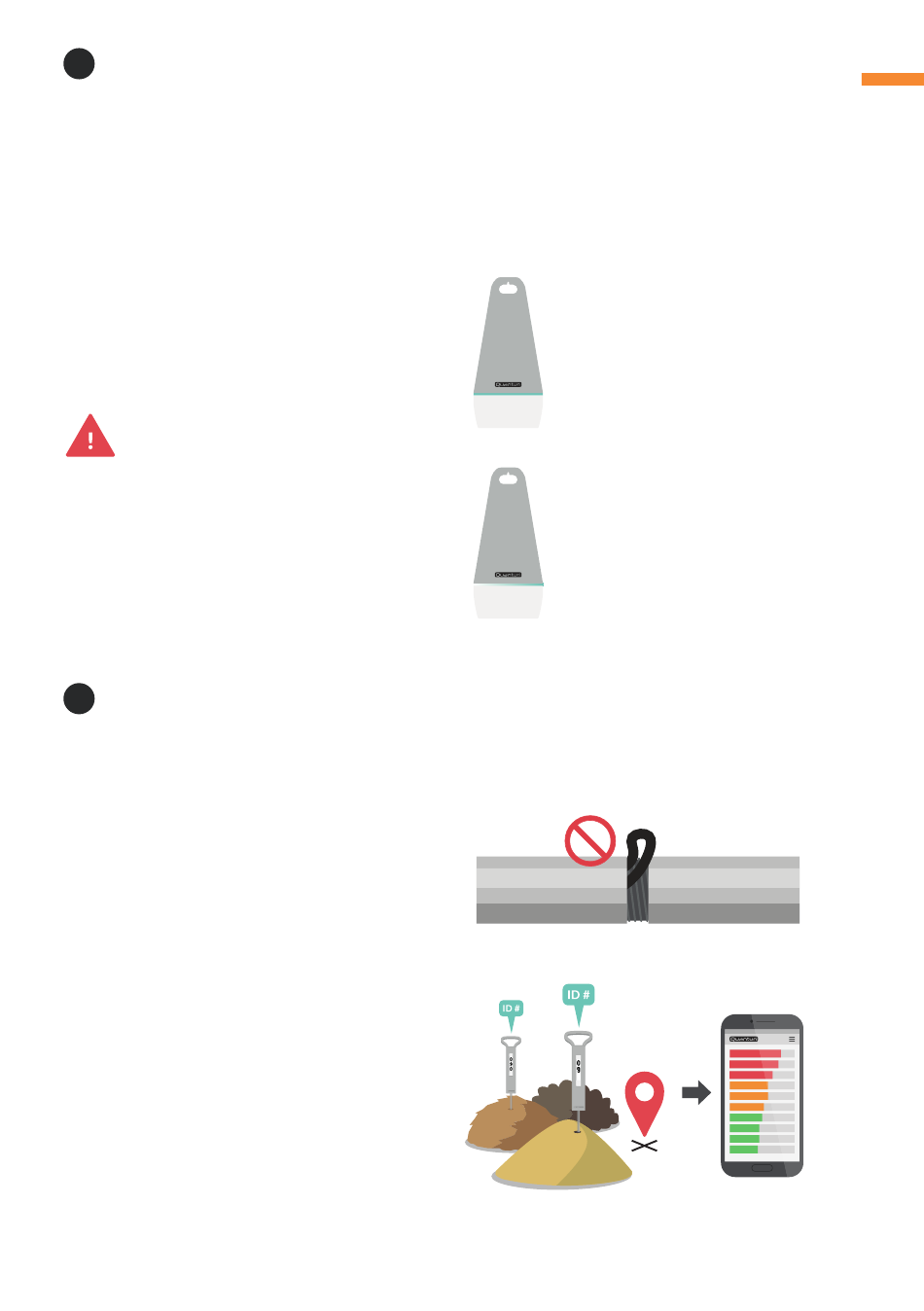

If delivered in parts, assemble the spike of the probe according to
the instructions in your probe package.
2
When screwing tight, pay
attention not to squeeze the
cable between the two ends of
the tube.
3
Then, simply insert your
probes into the bulk material.
Make sure to note the location
of the probes in order to find
them easily in an alert situation.
If the material is moved, simply
insert the probe into another
pile.
Devices meant for outdoor use have a protection class of IP44 for the enclosure and the power
1
adapter. In case conditions for the IP44
1



ID
1321
1232
1234
2223
1112
can not be met, external protection is needed.
2333
2096
2124
2243
NOTE!
The solid blue
light indicates only
that the repeater
is connected to
the base station.
Please refer to your
base station and
Quanturi.app to
ensure your system
is operational.
200 m
1
