INSTALLATION INSTRUCTIONS
ULTRABRIGHT PIR SHED LIGHT
LHT1183
Thank you for purchasing the Simx Lighting
Ultrabright battery operated PIR shed light.
Please read this manual before installation
and retain for future reference.
TECHNICAL SPECIFICATIONS
Detection Range
Detection Angle
PIR Aiming Adjustment Pan left or right 34°, tilt up or down 52°
Time Setting
Luminous Flux
CCT & CRI
Power Input
Battery Life
Working Temperature
Mounting
Ingress Protection
Construction
CONTENTS
Ultrabright PIR Shed Light
LHT1183
Stainless Steel Screw x 1 pc
Wall Plug x 1 pc
6 ± 1m
110 degrees
Fixed at 15sec (refer Operation section)
White 350lm +/-10%
5000K Cool White, CRI ≥80
3x Alkaline 'C' cell batteries 1.5V (not included)
@ 15s average use of 5 activations per day, up to 12 months
-20°C to +40°C
Ceiling or Wall mountable
IP44
UV-stabilised Polycarbonate
You will require:
Tools/Equipment needed for installation
Battery Caution & Disposal Information:
1. Do not mix old and new batteries.
2. Do not mix Alkaline, Standard (Carbon-Zinc)
or Rechargeable (Ni-Cad, NiMH, or Lithium) batteries.
3. Do not dispose of batteries in fire.
4. Batteries should be recycled or disposed of as per local guidelines.
C
x 3
Advertisement
Related Manuals for Simx Lighting LHT1183
Summary of Contents for Simx Lighting LHT1183

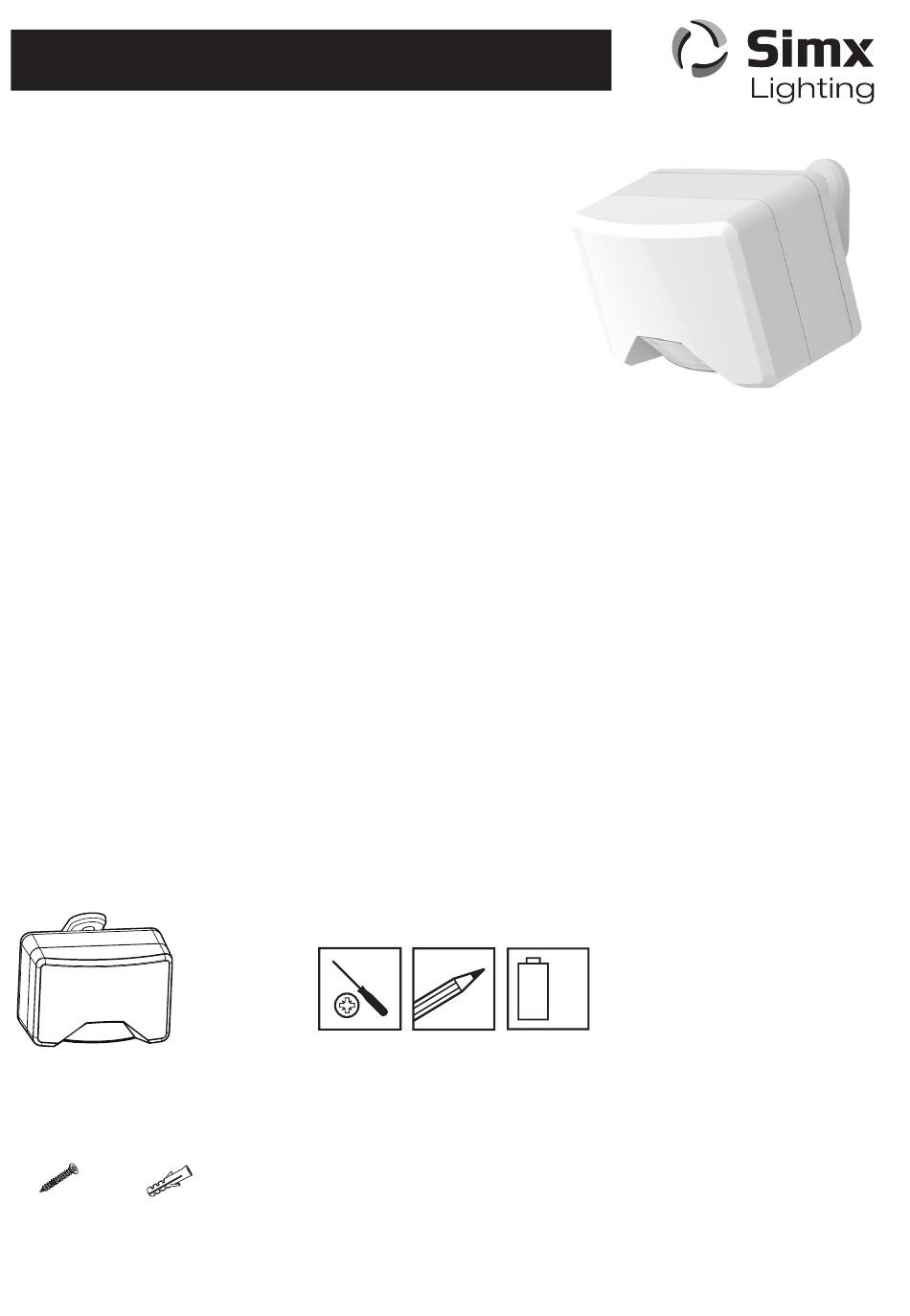

- Page 1 INSTALLATION INSTRUCTIONS ULTRABRIGHT PIR SHED LIGHT LHT1183 Thank you for purchasing the Simx Lighting Ultrabright battery operated PIR shed light. Please read this manual before installation and retain for future reference. TECHNICAL SPECIFICATIONS Detection Range 6 ± 1m Detection Angle 110 degrees PIR Aiming Adjustment Pan left or right 34°, tilt up or down 52°...
