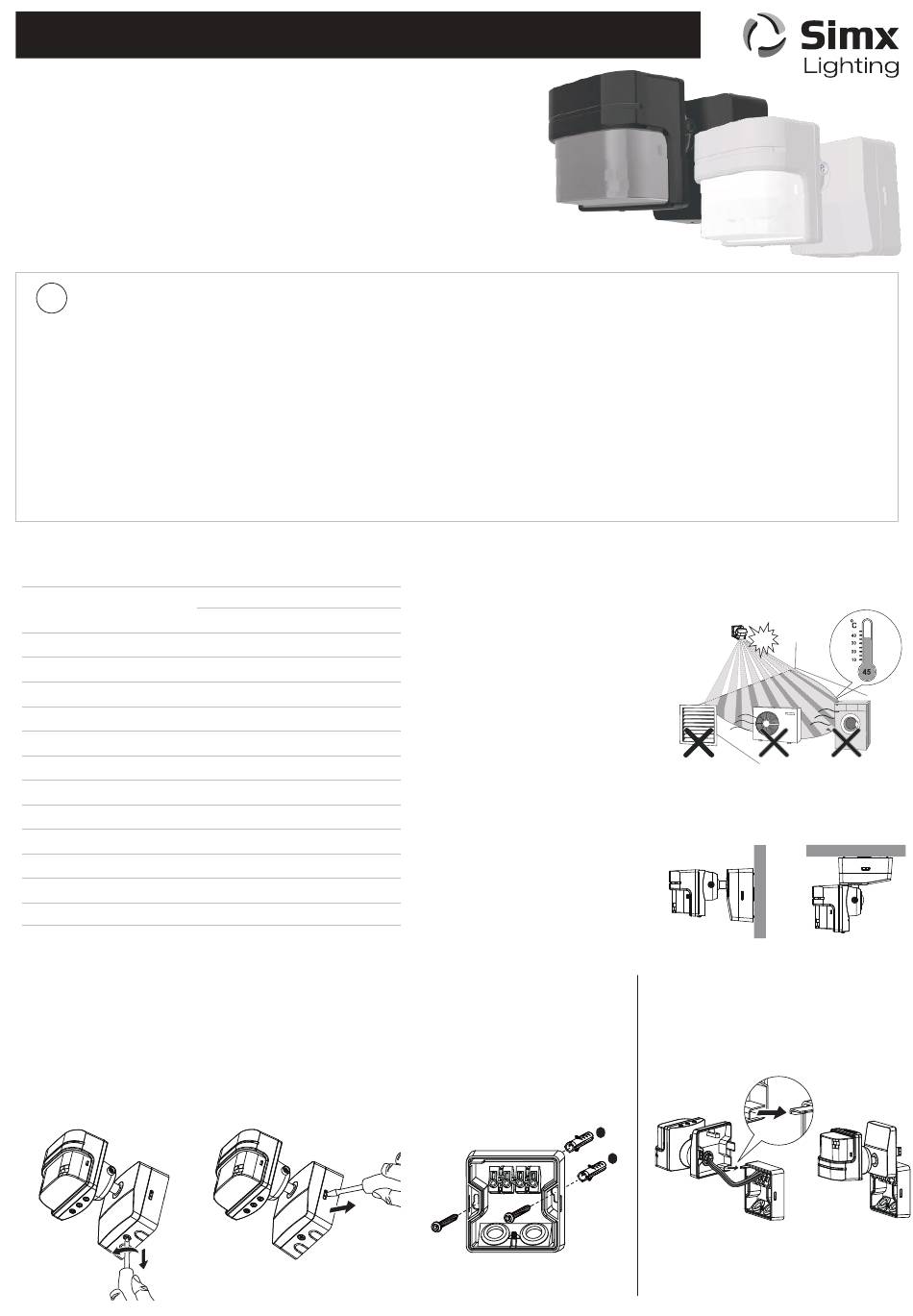

Simx Lighting SMART SENSE PRO Installation Instructions

INSTALLATION INSTRUCTIONS
SMART SENSE PRO
LHT1205 - Black
LHT1206 - White
Thank you for purchasing the Simx Lighting Smart Sense Pro.
It requires a 220V-240 AC power supply to operate and should be installed by a registered electrician.
Please read this manual before installation and retain for future reference.
!
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC, 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as applicable. We strongly recommend that this light fitting
is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in the circuit for the purpose of safe access for any
internal cleaning, recalibration, or maintenance.
This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval of the manufacturer, will void any and all
stated warranties.
TECHNICAL SPECIFICATIONS
Power Source 220-240V AC 50Hz
Max Rated Load 2000W Incandescent
400W LED (PF >0.9)
Detection Range Up to 12m
PIR Detection Angle 180º
Time On Adjustment 2 sec - 15 min
Dusk Level Adjustment Day & night or night only operation
IP Rating IP55
IK Rating IK07
Safety Class II
Mounting Under eaves or wall mount
Installation Height Typical 2.5m, max 3.5m
Construction UV-stabilised polycarbonate
Operating Temperature -20°C to + 50°C
Warranty 3 years
INSTALLATION
Remove the wiring box cover by unscrewing the retaining screw (Diagram 1), and with a flat head
screwdriver gently push down and ease out (Diagram 2).
Mark and drill fitting holes (Diagram 3). Insert the rawl plugs into the holes.
PIERCE & PASS THE CABLE(S) THROUGH THE GROMMET(S) BEFORE PROCEEDING.
Fix the mounting plate on the wall, ensuring not to over-tighten the screws to avoid potential damage.
When utilizing a power screwdriver, set to the lowest torque setting.
1 2
INSTALLATION ADVICE
Since the motion detector reacts to variations in temperature;
avoid the following situations:
• Do not aim motion detectors at
objects with highly-reflective surfaces,
like swimming pools, mirrors,etc..
• Do not install motion detectors near
heat sources such as heating
outlets, air conditioning systems,
dryer vents, lighting fixtures, etc.
• Do not aim the motion detector
at objects that move in the wind,
such as tree limbs or bushes,
large plants, etc...
MOUNTING LOCATION
Determine the mounting location
- Wall or Ceiling mount.
Recommended installation height
is 2.5m above ground.
3
Wall mount Ceiling mount
Note:
To make the installation process easier,
clip the sensor body and wall plate
together for hands-free install.
