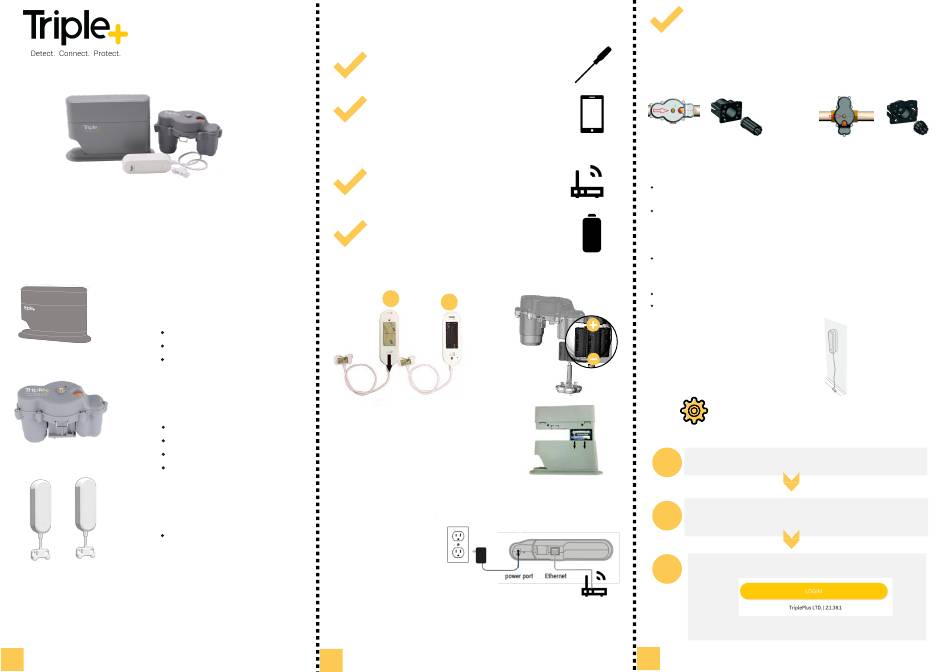

Triple Plus CLM Self-Installation Manual

CLM
Self-Installation Guide
Thank you for purchasing the Triple+ CLM™ system.
Please follow the steps presented in this guide to
install properly your Triple+ CLM™ system.
In the kit
HUB
x 1
Box contains:
Power Adapter
LAN Cable
2 X AA Backup batteries
WATER SHUTOFF
x 1
Box contains:
4 X CR123A Batteries
2 x Mounting adapters
1 X Emergency key
1 X Screws & Nuts Pack
FLOOD SENSOR
x 2
Box contains:
2 X AAA Batteries
* Kit content may vary
220 Yonge St. Suite 805 – Toronto, ON M4S 2C6 CANADA
Tel: 844-729-TRPL | www.tripleplus.io
1
PW000107 V1.3
TM
V.1.3
Have a Philips screwdriver.
Search and download the
"tripleplus CLM" APP available on
Google Play & APP Store, or scan
the QR's located on the back of
the kit.
Have an Internet modem with
available Ethernet port.
Insert the batteries to all the
devices
1
A
Insert the supplied 2 AA
backup batteries to the HUB ->
HUB LED should flash Blue.
B
Connect the HUB to the Internet
router using the provided LAN
cable -> HUB LED to continue
flashing Blue.
C
Connect the supplied power adapter
to the power port -> Wait until HUB
LED flashes Green.
2
Before you start
2
Setting up devices
Actuator alignment:
Install the ISO5211 ball valve(not included) on the main line.
install the mounting adapter using the screws and nuts.
Mount the Actuator on top of the adapter.
The actuator can be mounted in parallel or perpendicular.
Parallel
Parallel setup is set as installation Default.
When a perpendicular installation is required, follow up the following steps:
Using the locking pin, unlock the Actuator and pull it out from the
valve.
Reset the Actuator default alignment position by pressing the
Actuator multipurpose button for at least 20 seconds. Wait until the
RGB LED light up green for 10 seconds. Default position was
successfully changed. Check your App.
Once the alignment is default was changed, toggle the Actuator to
the "OPEN" position manually by pressing the multipurpose button
for 4 seconds.
Install and lock the Actuator in its position.
Check that the App and water flow are properly set.
Mounting the Flood Sensor
Installation Steps
1
Launch the Triple+ App on your smartphone
2 Scroll down and Tap "I agree" to User's license
agreement.
3
Tap "LOGIN"
3
Perpendicular
