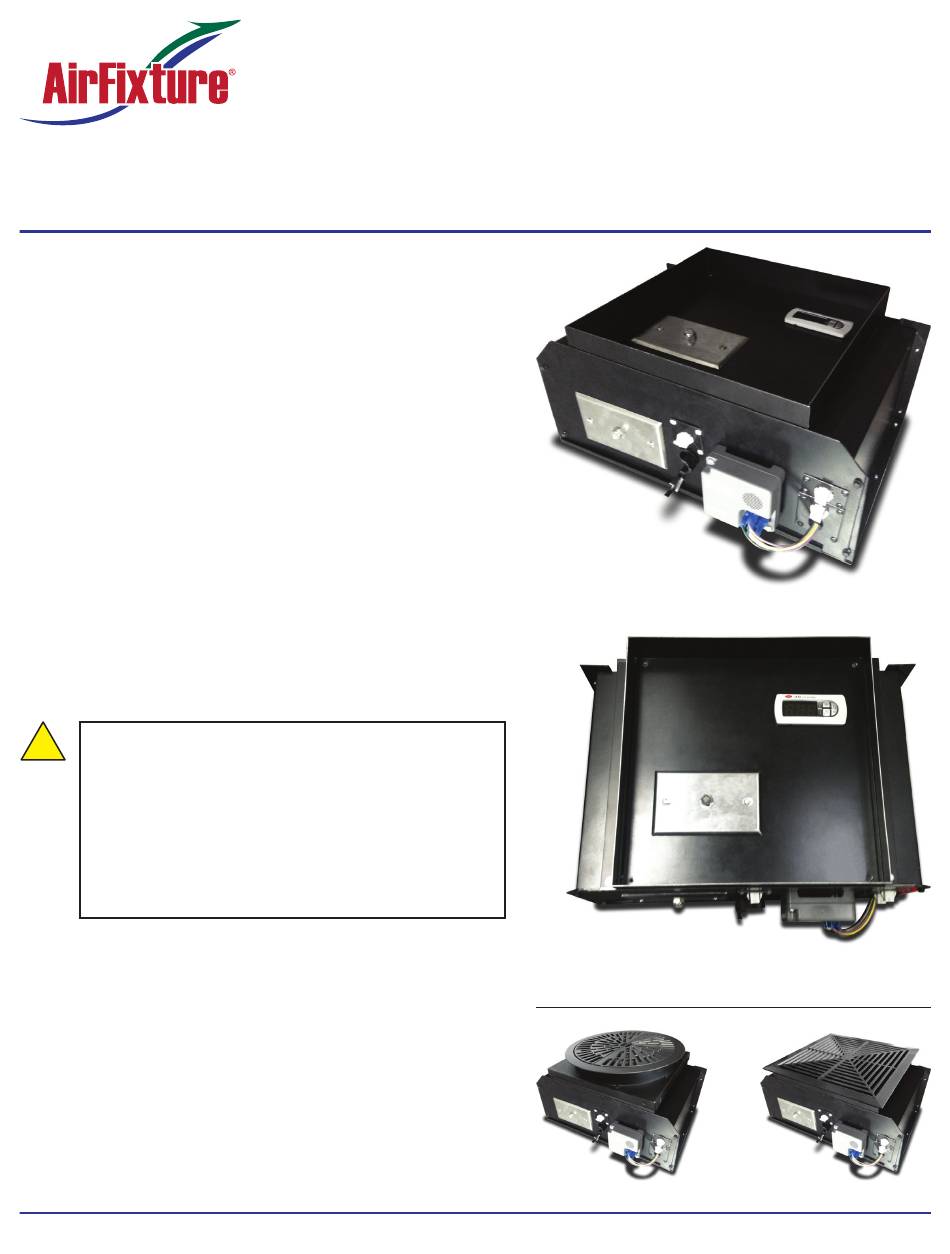

AirFixture FlexFloor3 Installation & Operation Manual

MODEL:
TOOLS REQUIRED:
1. Power Screwdriver:
• Phillips #3 Bit – floor panel screws
• Phillips #2 Bit – grille trim ring screws
2. Jigsaw – cutting openings in floor panels
(if floor panels are not pre-cut/drilled)
3. Carpet Knife
MATERIALS REQUIRED:
1. FlexFloor3 Controller Terminal
2. Plug & Play Cables
3. #8 – 32 x 1-1/2" (38.1mm) Self-Drilling/Tapping Sheet Metal
Screws (1-1/2" screws work in most applications, using other
screws could void warranty)
PREPARATION:
1. Verify that the FlexFloor3 is the correct model, unit count
and location(s) per scheduled placement.
2. Remove the floor covering / floor panel at the desired
location(s) (if installed).
3. Verify that all adjacent floor panels are properly installed.
INSTALLATION:
!
IMPORTANT: It is HIGHLY RECOMMENDED by the
manufacturer that each zone be checked for faulty
CAUTION
or improper wiring DURING INSTALLATION. Each
zone should be tested thorougly for full connectivity
before proceeding with installation of the next
zone. The manufacturer cannot be responsible for
any improper installation as a result of failure to
follow this procedure as outlined in the AirFix-
ture Connectivity Testing Procedures.
The FlexFloor is designed to be installed into a floor panel that
has been removed from the floor. The completed assembly is
then installed back into the floor, and connected to the zone with
Plug & Play Cables.
NOTE: Floor panel installation cut-outs are based on the
style of diffuser grille being installed (round or square).
REFER TO PAGE 2 FOR ADDITIONAL INFORMATION:
INSTALLATION / OPERATION / MAINTENANCE / PARTS
AirFixture
©2021 AirFixture, LLC
V211206
INSTALLATION / OPERATION MANUAL
Controller Terminal
FlexFloor3
