AirFixture SoHo Hub Installation & Operation Manual

SoHo
Living Comfortable
Tools Required
1.
Power Screwdriver
•
Phillips #3 Bit
- Tighten / loosen floor panel screws
•
1/4" Hex Head Driver
- Tighten / loosen Hub cover screws
2. Panel Lifter (Suction Cups)
•
Remove raised access floor panels
Materials Required
1. SoHo Hub Power & Control Box
2. Plug & Play Molex Cables
Preparation
1.
Verify that the SoHo Hub is the correct model,
unit count and location(s) per scheduled placement.
2. Verify that required plug and play cabling has been routed
to all designated installation locations in the zone.
PLUG & PLAY
MOLEX CONNECTIONS
L
AirFixture
©2023 AirFixture, LLC
V230524
®
Installation / Operation Manual

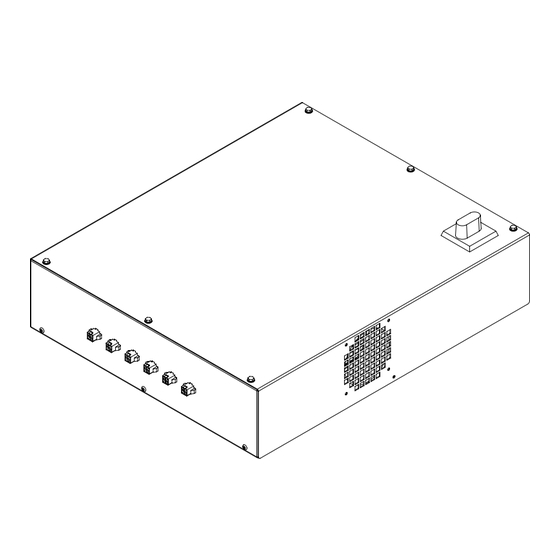

SoHo Hub
ABB ON / OFF LINE POWER CONNECTION
DISCONNECT (BY OTHERS)
H
51 Kansas Avenue | Kansas City, KS 66105 | P: 913.312.1100 | F: 913.312.1105 | www.airfixture.com
Power & Control Box
CONFIGURATION
LENGTH
(in)
18
Standard
18
Integrated XMFR
ALL DIMENSIONS NOMINAL +0.5" / - 0.0" (+13mm / - 0mm)
W
1
L W
WIDTH
(mm) (in) (mm)
457 15.2 386
457 19.2 488
H
HEIGHT
(in) (mm)
4 102
4 102
