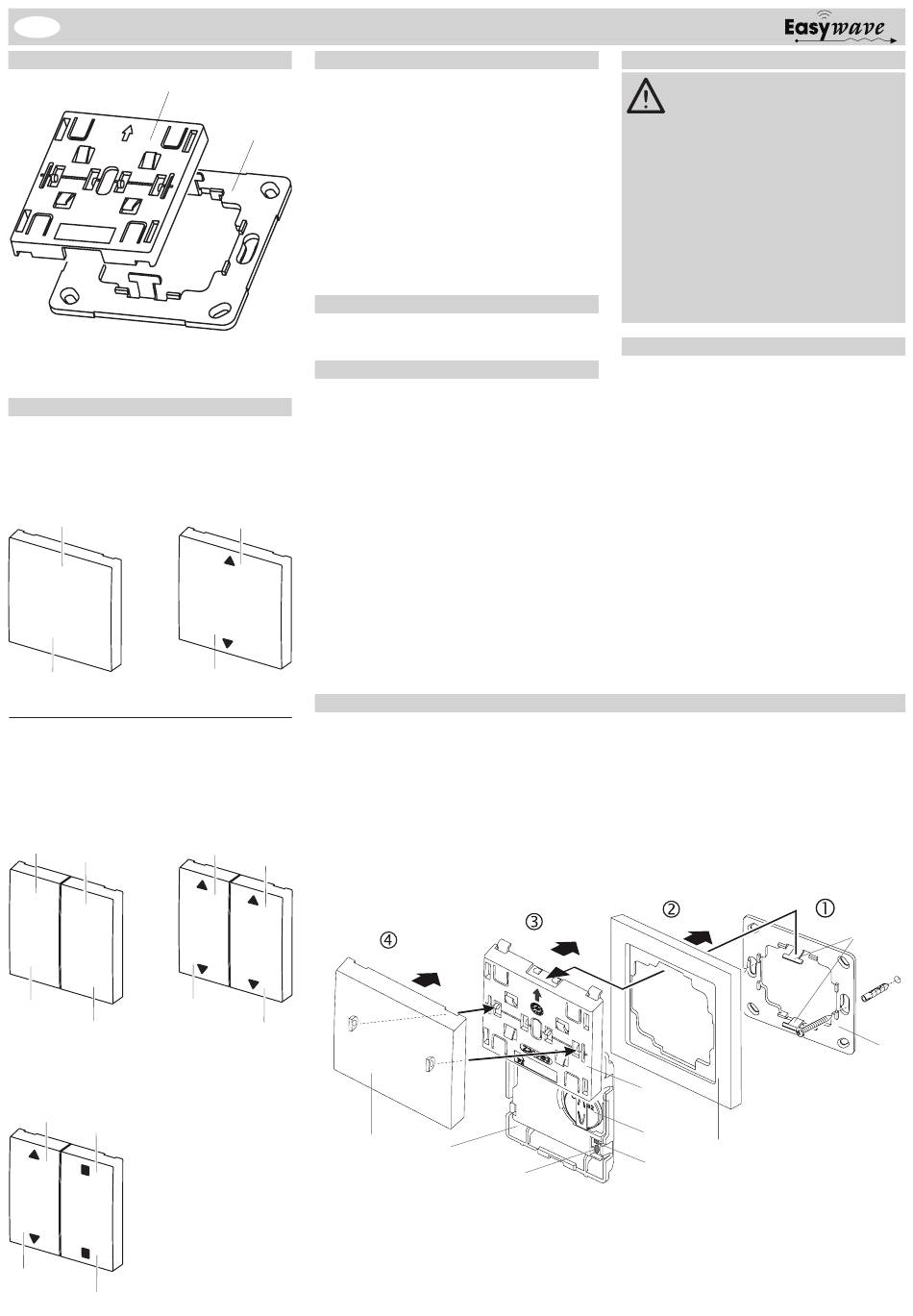

Eldat Easywave RTS22/23 Format 55 Quick Start Manual

Wall switch RTS22/23 Format 55 | RTS34/35 Format B6
EN
Model
Transmission
module
RTS22E5002A11
for single rockers
RTS23E5004A11 for double rockers
Application variants
SINGLE ROCKERS
ON/OFF PULSE UP/DOWN
or
RTS22-ACC-02-xxP RTS22-ACC-03-xxP
RTS34-ACC-01-xxP RTS34-ACC-02-xxP
A
B
DOUBLE ROCKERS
ON/OFF UP/DOWN
(2x) or
PULSE
(4x) RTS23-ACC-02-xxP2
RTS23-ACC-01-xxP2 RTS35-ACC-02-xxP
RTS35-ACC-01-xxP
A
C
B
D
UP/STOP/DOWN
RTS23-ACC-03-xxP2
RTS35-ACC-03-xxP
A
C
B
D
Technical Details
Frequency:
Radiated power:
Modulation:
Mountingplate Coding:
Power supply:
Oper. temperature:
Range:
Dimensions:
Transmission module: 51,5/51/10,0 mm
Mounting plate:
Weight:
Scope of Delivery
Transmission module, battery CR2032, mounting
plate, adhesive pads, operating instructions
Intended Use
Only use the radio wall switch RTS22/23 and
RTS34/35 in dry indoor rooms to switch Easy-
wave receivers.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use.
A
B
Start-Up
1. Screw or stick the mounting plate to the in-
stallation site with screws and dowels or the
adhesive pads.
Caution: Make sure there is no interference
(2x)
with the wireless connection. Do not mount
the device in a distribution box, in metal cas-
ings, in direct proximity to large metal objects,
on the floor or close to it.
2. Insert the battery (see chapter „Insert /
A
change battery").
C
B
D
A
868.30 MHz
1.29 mW
FSK
Easywave
POTA
1x 3-V-battery,
CR2032
-20 °C to +60 °C
free-field: approx. 150 m
buildings: approx. 30 m
71/71/1,8 mm
34.0 g (incl. battery)
B2
PTx
Safety Advice
Before using the Radio Wall Switch,
carefully read through the operating in-
structions!
- Also note the operating instructions of the
receiver(s)!
- The Radio Wall Switch should only be
operated within sight of the devices to be
controlled! Otherwise persons could be
placed in danger!
- Have faulty Radio Wall Switches checked
by the manufacturer!
- Do not make any unauthorized alterations
or modifications to the Radio Wall Switch!
- Keep the batteries out of the reach of child-
ren!
Function
The RTS22/23 und RTS34/35 are wireless switch
transmitters for surface mounting in dry rooms
The buttons with format 55 (RTS22 and RTS23)
fit into most cover frames with a cut-out dimensi-
on of 55x55 mm.
The format B6 buttons (RTS34 and RTS35) are
suitable for the following Busch-Jaeger switch
programs: carat, solo, Busch-axcent and future
linear.
The cover frames of the corresponding switch
ranges are not included in the scope of delivery.
By pushing a button the Easywave code A/B/C/D
is transmitted and the connected Easywave
receivers are switched in their selected operating
mode:
- ON(A/C) or OFF (B/D)
- PULSE(A/B/C/D)
- UP(A/C) or DOWN(B/D)
- UP(A) / STOP(C/D) / DOWN(B)
3. Place the cover frame onto the mount-
ing plate and snap the transmission mod-
ule to the catches on top and bottom.
The arrow on the transmission module
has to point upwards.
4. Plug the rocker(s) onto the transmission mo-
dule.
5. Program the transmission code into the
receivers. Please read
instructions supplied with the receivers.
B1
C
D
G
A Rocker(s)
B1 Transmission module front side
B2 Transmission module back side
PTx Learning button
C
Battery CR2032
D Cover frame
(not in the scope of delivery)
E Mounting plate
F Catches
G
Transmission LED
the operating
F
E
