Intended Use
The Radio Time Switch RTS07 was exclusively
developed and manufactured for the brightness
time-controlled switching of devices with Easywave
radio controls.
The manufacturer will not be liable for damage caused
by improper or inappropriate use.
Function
The Time Switch RTS07 is a wall-mounted battery-
operated radio timer (surface-mounted).
Time Switch allows switching Easywave radio
controls (function range: UP/STOP/DOWN)
depend ent on time and/or brightness. Brightness
control is only possible in connection with the Radio
Light Sensor SL01.
The Radio Time Switch has four individually coded
radio channels so that four different radiograms can be
sent to control four devices or groups individually
It is possible to transmit the four different radiograms
together (with a delay of approx. 0.5 seconds per
channel) and therefore activate all four devices or
groups simultaneously (group function).
The following four operating modes are available:
Time-Controlled:
Automatic Operation: Blinds are raised and lowered
either at the programmed switching times or manually.
Automatic Operation with Partially Manual
Operation: The programmed switching times as well
as the sun protection/twilight mode functions are
deactivated until 24:00 hrs. After 24:00 hrs, the timer
switches to automatic mode.
Brightness-Controlled:
(only in connection with Radio Light Sensor SL01)
Solar Protection Mode: If a set brightness value is
exceeded, the blinds lower to a desired shade
position.
Twilight mode: If a set brightness value is undercut,
the blinds are lowered completely.
Manual Mode: Raising and lowering of blinds only by
pushing the button on the Radio Time Switch.
The Time Switch offers the following additional
functions:
Holiday Mode: On holidays, you can activate the
switching times programmed for Sundays with only
one push of a button.
Switching from Normal to Daylight Savings Time:
You can switch the Time Switch from normal to
daylight savings time with just one push of a button.
Vacation Mode: Shutters/blinds are raised or lowered
with a time delay of ± 15 minutes compared to the
programmed switching times in automatic mode. This
way you can make your house appear inhabited.
The following settings are available in automatic mode
and vacation mode:
- Day Function: Switching period 24 hours or
Week Function: Switching period one week
- Individual Switching Times: Different switching
times can be programmed for each weekday or
HOLI
groups of weekdays.
- Intermediate Position: Lowering of blinds/
S/W DEL
shutters to a desired shade position.

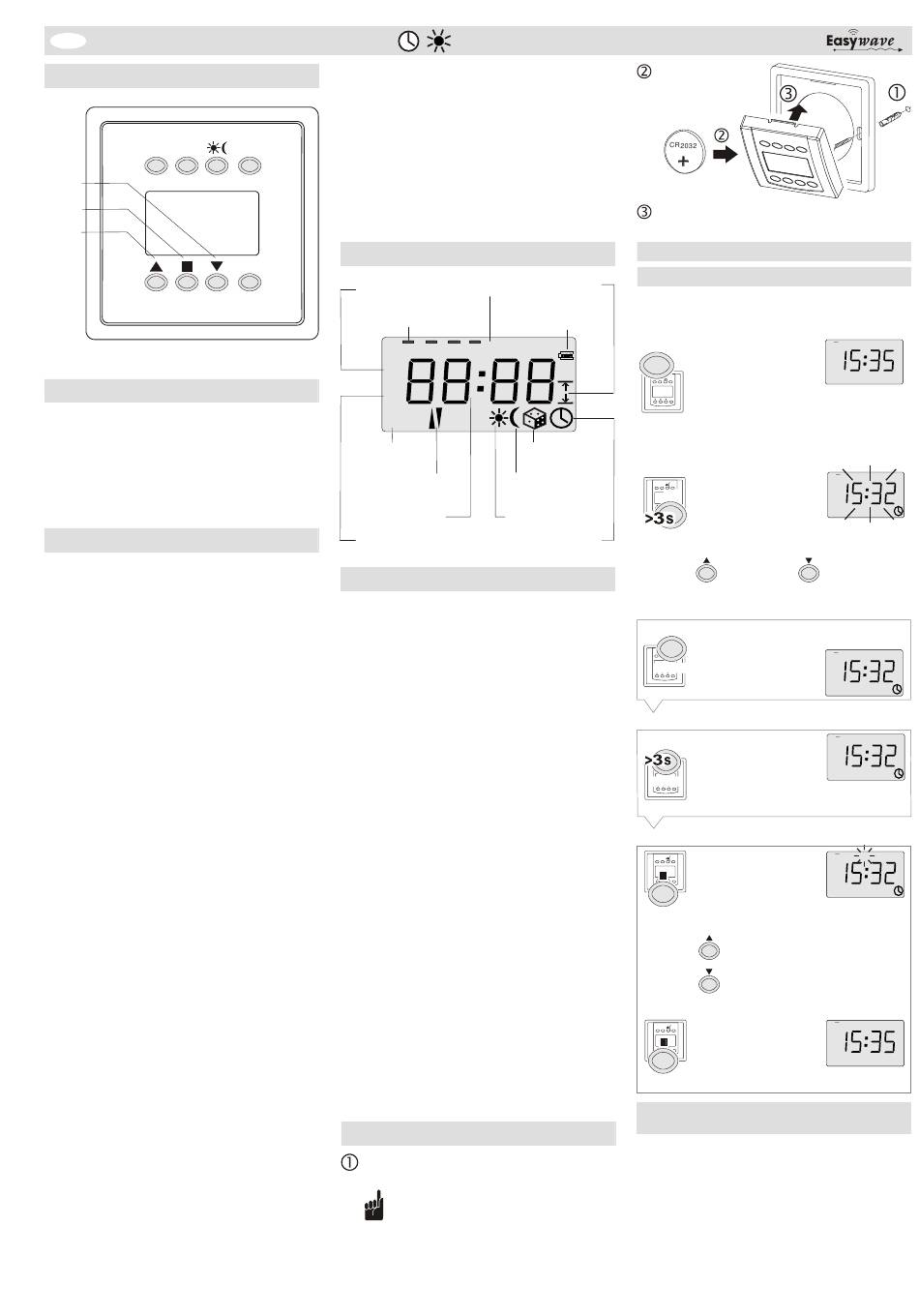

Display Overview
CH
Hour-
format (
B1)
CLOCK
Radio channel (B2, C6)
MO TU WE TH FR SA SU
AM
PM
W
S
AUTO
MANU
and
Operating
mode (C5)
Direction (C2.2,
C4.1)
Time/Radio chan-
nell/Numerical value
Winter/daylight
saving time (D2)
The Radio
Operating the Radio Time Switch
The following settings have to be made to put the
control into operation and for later modifications:
A Mounting the Radio Time Switch . . . . . . . . . . . 1
B Basic Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 1
B1 Setting the Time/Weekday. . . . . . . . . . . . . 1
B2 Memorizing Radio Channels
.
in the Controls . . . . . . . . . . . . . . . . . . . . . .
B3 Measuring and Saving the Runtimes. . . . . 2
B4
Putting the Light Sensor into Operation. . . 2
C Operating Shutters/Blinds . . . . . . . . . . . . . . . . 2
C1 Factory Settings. . . . . . . . . . . . . . . . . . . . . 2
C2 Solar Protection Mode . . . . . . . . . . . . . . . . 2
C2.1 Setting the Brightness Value . . . . . . . . . . . 2
C2.2 Setting the Intermediate Position. . . . . . . . 2
C2.3 Activating Solar Protection Mode . . . . . . . 2
C3 Twilight Mode. . . . . . . . . . . . . . . . . . . . . . . 2
C3.1 Setting the Twilight Value . . . . . . . . . . . . . 2
C3.2 Activating Twilight Mode . . . . . . . . . . . . . . 3
C4
Automatic Mode. . . . . . . . . . . . . . . . . . . . . 3
C4.1 Programming new Switching Times
and Intermediate Positions . . . . . . . . . . . . 3
C4.2 Deleting Switching Times . . . . . . . . . . . . . 3
C4.3 Changing Switching Times . . . . . . . . . . . . 3
C5 Changing the Operating Mode . . . . . . . . . 4
C6 Manual Mode. . . . . . . . . . . . . . . . . . . . . . . 4
D Additional Functions . . . . . . . . . . . . . . . . . . . . 4
D1 Activating Holiday Mode . . . . . . . . . . . . . . 4
D2 Switching Between Normal Time
and Daylight Savings Time . . . . . . . . . . . . 4
D3 Vacation Mode
D4 Deleting all Data (Reset) . . . . . . . . . . . . . . 4
E Changing the Battery
F Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 4
G General Information . . . . . . . . . . . . . . . . . . . . . 4
A
Mount the wall mount with the enclosed screws
and dowels on the desired installation site
Avoid installing the time switch in one of
the following sites as this may impair
the range of the transmitter: in a
distribution box or a metal casing, in
direct proximity to large metal objects
and on the floor or close to it.
Move to
intermediate
Weekday
position
(
B1)
(C2.2, C4.1)
Battery capacity (E)
Holiday
timer (D3)
Twilight-
mode (C3)
Solar protection
mode (C2)
Setting current
(B1)
time
. . . . . . . . . . . . . . . . . . . . 4
Mounting the Radio Time Switch
.
Insert the enclosed
battery.
Make sure the
Polarity is correct!
Replace the time switch in the wall mount. The
snap catches have to lock.
B
B1 Setting the Time and Weekday
If you do not press a button within 5 minutes during
programming, the t ime witch s
operating mode.
ESC
With ESC you can
cancel all programming
steps at any time and
ESC MODE HOLI
ADJ S/W DEL
PROG
return to operating
CH
mode.
OK CLOCK
In this case the settings are not saved.
Setting/Changing the Time:
Press the CLOCK button
ESC MODE HOLI
PROG ADJ S/W DEL for more than 3 seconds.
CH
The time on the display
CH
OK CLOCK
starts to blink.
CLOCK Set the time with the UP or DOWN button.
Advancing
the minutes
Setting Daylight Savings Time:
Press the S/W button to switch between
HOLI
Seite
daylight savings and normal time.
ESC MODE HOLI
The display switches
PROG ADJ S/W DEL
S/W DEL
between W and S.
CH
OK CLOCK
1
Setting the Hour Format
MODE Press the MODE button
for more than 3 seconds.
The hour format switches
ESC MODE HOLI
PROG ADJ S/W DEL
PROG between 12 hour display
CH
OK CLOCK (AM/PM) and 24 hour
display.
Press the OK button.
ESC MODE HOLI
ADJ S/W DEL
PROG The weekday blinks on
the display.
CH
OK CLOCK
Now select the respective day with the UP
OK
and DOWN buttons.
MO
TU
WE
TH
FR
SA
SU
Press the OK button
HOLI
ESC MODE
PROG ADJ S/W DEL again. The settings are
saved and the Time
CH
OK CLOCK
Switch returns to
Operating Mode.
OK
B2 Memorizing Radio Channels
in the Controls
The codes for each radio channel must be memorized
in the radio controls first, so that the radio controls can
receive the transmission code of the clock. Memorizing
the codes in the group function is not possible.
Set the control into programming mode. For this, read
the operating instructions of the radio controls. Select
the favoured radio channel of the control in the time
switch and transfer the Easywavecode to the radio
control:
Basic Settings
automatically returns to
MO TU•WE• •FR SA SO TH
W
MO TU•WE• •FR SA SO TH
W
Resetting
the minutes
MO TU•WE• •FR SA SO TH
W
S
:
(12-/24 hours)
MO TU•WE• •FR SA SO TH
AM
PM
Setting the W eekday:
SA SO
MO TU•WE• •FR SA SO TH
W
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
MO TU•WE• •FR SA SO TH
W
1/4
