iTOOLco CANNON 3K User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

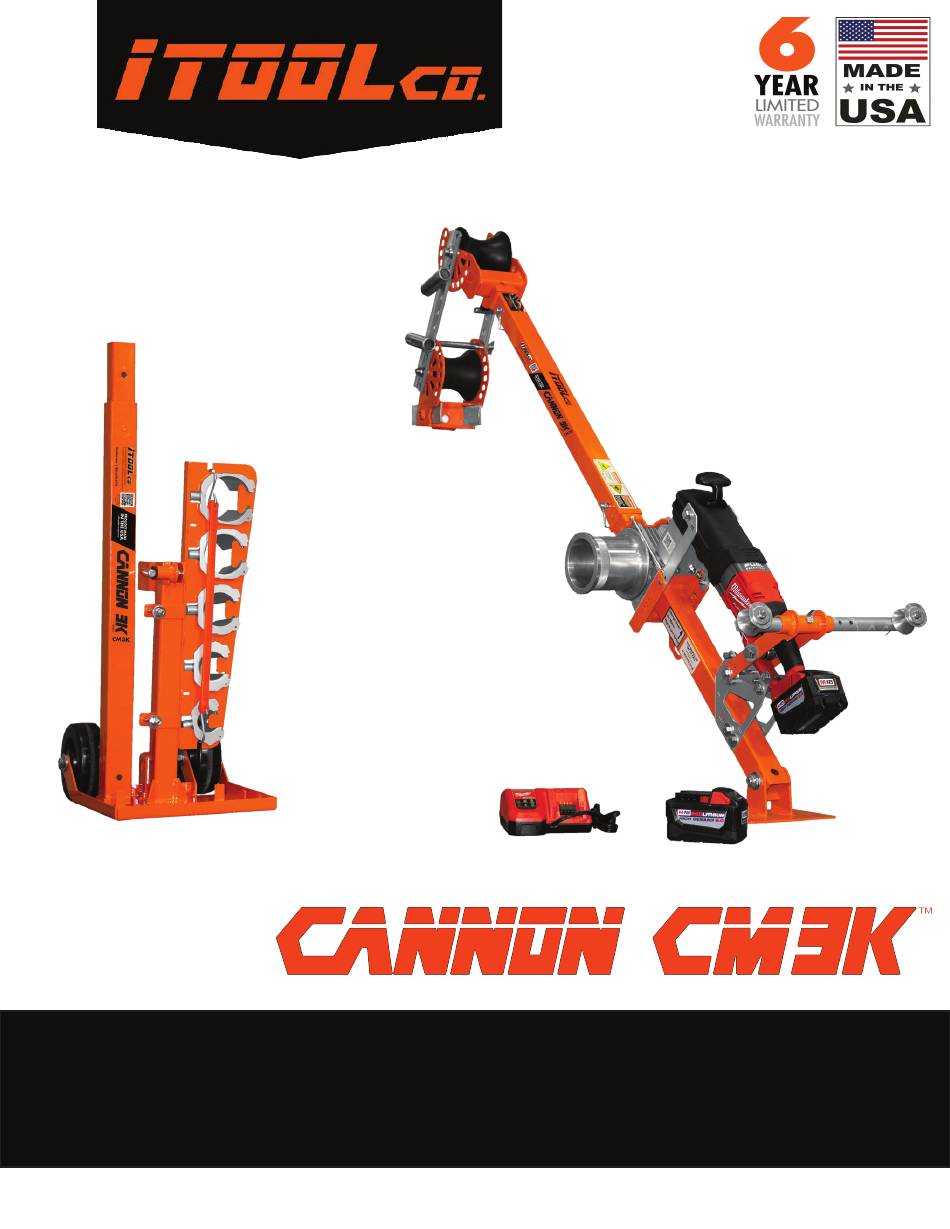

USER'S GUIDE
1325 Carden Farm Drive | Clinton, TN 37716 | 865-670-3713 | www.iTOOLco.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CANNON 3K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iTOOLco CANNON 3K

Summary of Contents for iTOOLco CANNON 3K

  • Page 1 USER’S GUIDE 1325 Carden Farm Drive | Clinton, TN 37716 | 865-670-3713 | www.iTOOLco.com...
  • Page 2 Page 2...

  • Page 3: Table Of Contents

    BEFORE OPERATION OF THIS TOOL, READ & UNDERSTAND ALL OF THE INSTRUCTIONS & SAFETY INFORMATION IN THIS MANUAL. CONTENTS Safety First...............4 Important Safety Information..........5 Parts Breakdown...............8 Set Up and Operation............15 Attaching Conduit Adapters..........18 Underground Wire Pull............20 Overhead Wire Pull............22 Use of Main Roller............24 Page 3...

  • Page 4: Safety First

    SAFETY FIRST Safety is essential in the use and maintenance of this tool. This instruction manual & any markings on the tool provide information for avoiding hazards and unsafe practices related to the use of this tool. Observe all of the safety information provided. SAFETY ALERT SYMBOLS This symbol is used to call your attention to hazards or unsafe practices that could result in injury or property damage.

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING Read and understand all instructions and safety information in this manual before operating or servicing this tool. Also read the instruction manual supplied with your drill. FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE INJURY OR DEATH. WARNING - PERSONAL SAFETY HAZARDS Only qualified persons should use this equipment.
  • Page 6 IMPORTANT SAFETY INFORMATION WARNING ENTANGLEMENT HAZARD Do not operate this tool while wearing loose fitting clothing. Put up long hair and keep it away from the unit. Keep hands away from moving objects or anything that can pinch or crush a hand or body part. FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE INJURY OR DEATH.
  • Page 7 DO NOT ALTER CABLE PULLING EQUIPMENT OR ANY EQUIPMENT BOUGHT FROM iTOOLco. Doing so will VOID YOUR WARRANTY. Guards, testing, and safety features are provided for your protection.

  • Page 8: Parts Breakdown

    PARTS BREAKDOWN Page 8...
  • Page 9 PARTS BREAKDOWN Page 9...
  • Page 10 PARTS BREAKDOWN Page 10...
  • Page 11 PARTS BREAKDOWN Page 11...
  • Page 12 PARTS BREAKDOWN Page 12...
  • Page 13 PARTS BREAKDOWN Page 13...
  • Page 14 PARTS BREAKDOWN Page 14...

  • Page 15: Set Up And Operation

    Always wear gloves, eye protection, and appropriate safety gear when working with pullers. 1. Remove iTOOLco Cannon 3K Puller from shipping crate and inspect puller for damage. (Fig.1) 2. Install adapter plate (Fig. 2) securing in place with retainer pins. (Fig. 3) Install the adapters (Fig.
  • Page 16 SET UP AND OPERATION Assembly Always wear gloves, eye protection, and appropriate safety gear when working with pullers. 3. Install extension arm onto puller (Fig. 6) and secure in place with retainer pins. (Fig. 7-8) 4. Install main roller arm to puller. (Fig. 9-10) FIG.
  • Page 17 SET UP AND OPERATION Assembly Always wear gloves, eye protection, and appropriate safety gear when working with pullers. 5. Place the rollers on top of the main arm and lock in place with pop pins. (Fig. 1 1) Adjust the main roller and front roller pins for proper alignment.

  • Page 18: Attaching Conduit Adapters

    ATTACHING CONDUIT ADAPTERS Using the Universal Adapter Loosen the 1/2” ( 12.7 mm.) bolt (Fig.1) on either side of the front head. Slide the universal adapter in or out (Fig. 2) to accommodate the appropriate size of conduit. Make sure that the adapter engages the conduit.
  • Page 19 ATTACHING CONDUIT ADAPTERS Using the 2”- 4” Adapters (51 mm. - 102 mm.) Place the desired conduit adapter size into the top of the universal adapter. Slide the adapters toward the puller until the adapter is all the way back. (Fig. 4) FIG.

  • Page 20: Underground Wire Pull

    UNDERGROUND WIRE PULL 1. Pivot front extension assembly as needed and reinsert pin. (Fig. 1) 2. Lift up the front end and place the conduit adapter into conduit. (Fig. 2) Always make sure the conduit adapter sits flush around the conduit you are pulling through. 3.
  • Page 21 UNDERGROUND WIRE PULL (CONT.) 8. Loosely wrap the rope around the appropriate capstan starting with two wraps about capstan. (Fig. 5) Start turning the capstan by stepping on the included footswitch. (Fig. 6) Continually add wraps to the capstan while maintaining tension on the rope. (Fig. 7) The goal is to match the speed of the capstan with the rope to turn at the same rate.

  • Page 22: Overhead Wire Pull

    OVERHEAD WIRE PULL 1. Convert the Cannon 3K to an overhead configuration by removing the cinch pin at the main knuckle. (Fig. 1) Pull the snap pin, and rotate the front end right or left to the desired position. (Fig. 2) 2.
  • Page 23 OVERHEAD WIRE PULL (CONT.) 6. Use proper lubricant or no-lube wire to make pulling jobs smoother. 7. Determine which capstan to use. For lighter loads at high speed, use the large diameter capstan. For heavy loads, use the small diameter capstan. 8.

  • Page 24: Use Of Main Roller

    USE OF THE MAIN ROLLER When pulling with extensions in use always make sure the rope is engaging the main roller, failure to do so could result in bending the extensions and harm to you. NEVER BYPASS A ROLLER. Failure to do so could cause bending of the extension. Page 24...

This manual is also suitable for:

Cannon cm3k
