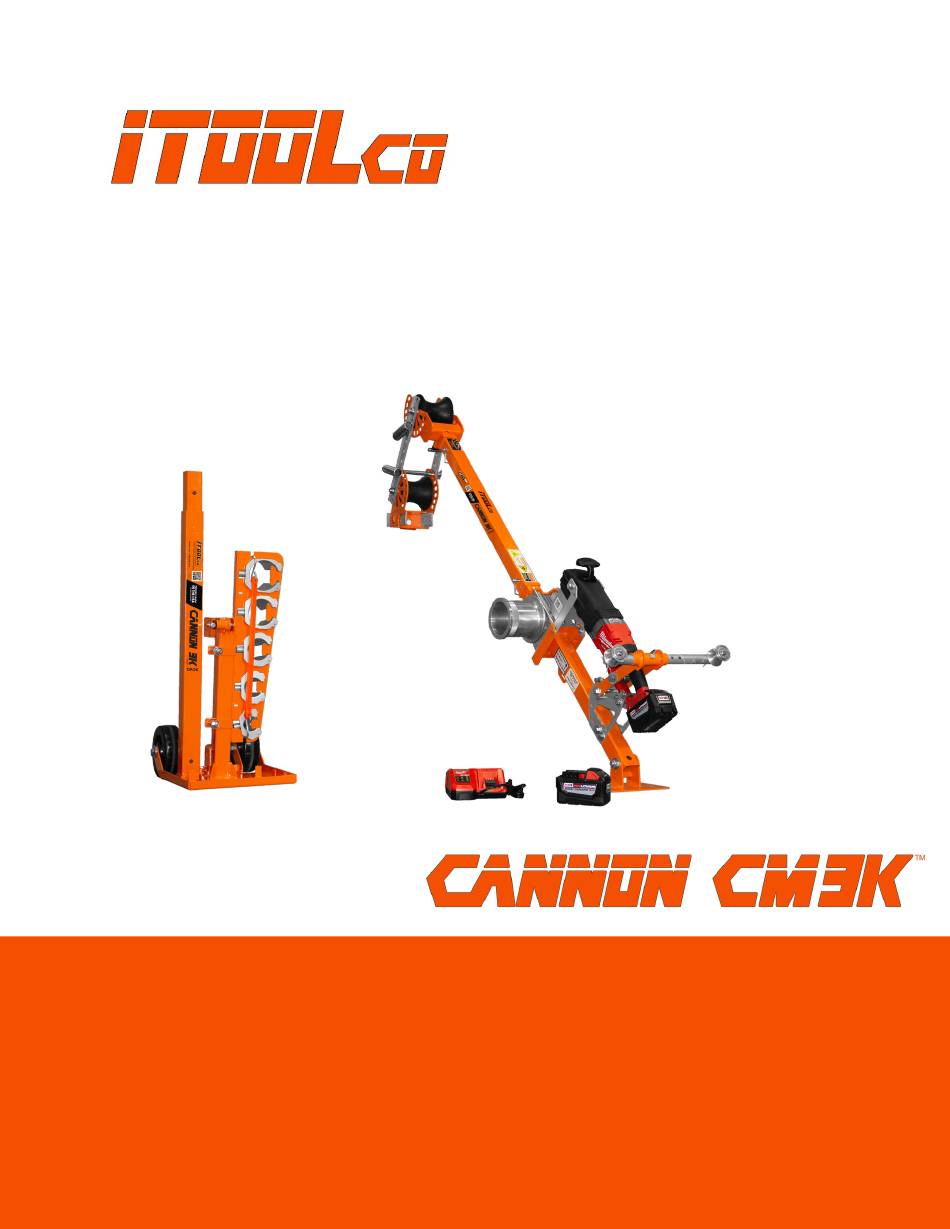

- Page 1 User’s Guide 100 MECO LANE | OAK RIDGE, TN 37830 | 865.670.3713 | ITOOLCO.COM © 2019 PROPERTY OF ITOOLCO...
-
Page 2: Table Of Contents
SAFETY ALERT SYMBOLS ..........................3 IMPORTANT SAFETY INFORMATION ......................4 DESCRIPTION AND IDENTIFICATION ......................6 SET UP AND OPERATION ..........................14 LIMITED WARRANTY: ITOOLCO CORDLESS CANNON 3K ................20 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 2... -
Page 3: Safety First
Hazards that, if not avoided, COULD result in severe injury or death. CAUTION Hazards or unsafe practices that, if not avoided, MAY result in injury or property damage. ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 3... -
Page 4: Important Safety Information
Do not use this tool near live circuits. Shut off and lock out power when working near existing circuits. FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE INJURY OR DEATH. ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 4... - Page 5 Do not use the cable puller as a hoist or winch. The cable puller cannot lower a load. The load may fall and cause serious injury or death. FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE INJURY OR DEATH. ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 5...
-
Page 6: Description And Identification
DESCRIPTION AND IDENTIFICATION Cannon 3K is a 3 The iTOOLco ,000 lb. cordless cable puller intended to pull small to medium wire through conduit. ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 6... - Page 7 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 7...
- Page 8 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 8...
- Page 9 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 9...
- Page 10 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 10...
- Page 11 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 11...
- Page 12 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 12...
- Page 13 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 13...
-
Page 14: Set Up And Operation
Step 1. Inspect Puller for damage. Figure 1. Figure 1 Step 2. Install adapter plate securing in place with retainer pins. Figures 2-6. Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 14... - Page 15 18" bungee cord. Note: 5" and 6" adapters are also available separately. Figures 7-13. Figure 7 Figure 8 Figure 9 Figure 10 Figure 11 Figure 12 Figure 13 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 15...
- Page 16 Figure 15 Figure 16 Figure 17 Step 5. Install main roller arm to puller. Figures 18-24. Figure 18 Figure 19 Figure 20 Figure 21 Figure 22 Figure 23 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 16...
- Page 17 Figure Figure 28 Figure 29 Figure 30 Figure 31 Figure 32 Figure 33 Step 7. Extend the puller as needed for extra wire. Figure Figure 34 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 17...
- Page 18 Figure 37 CAUTION: During the pull, rope must always come in contact with both front and main roller. Never bypass a roller. Figures 38-39. Figure 38 Figure 39 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 18...
- Page 19 Step 10. Press forward/ reverse button to center position to put in neutral. Figure 40. Figure 40 ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 19...
-
Page 20: Limited Warranty: Itoolco Cordless Cannon 3K
If the part(s) if found to be defective, iTOOLco will refund freight charges paid by you in retuning the defective part(s) and prepay replacement part(s) freight charges. - Page 21 100 MECO LANE | OAK RIDGE, TN 37830 | 865.670.3713 | ITOOLCO.COM © 2019 PROPERTY OF ITOOLCO ITOOLCO CANNON 3K USER’S GUIDE 1908CM3KUG P a g e | 21...
