- Page 1 Impala Ref: PRJ27468 Mohit NAME NAME NAME KNG: KNG-2208-0036 EN Electric Tiller 1400W MTIP1400-2 3663602627258 EN ORIGINAL INSTRUCTIONS 3663602627272 IMPORTANT - These instructions are for your safety. Please read through them thoroughly prior to handling TTB1400TI the product and retain them for future reference.
- Page 2 EN Parts 01. x1 EN You will need EN Contents Product description Safety Before you start Functions & Settings Operation Care and maintenance Guarantee Declaration of conformity 3663602627258_MNL_IN_V02.indd 2 3663602627258_MNL_IN_V02.indd 2 15-03-2023 09:22:48 15-03-2023 09:22:48...

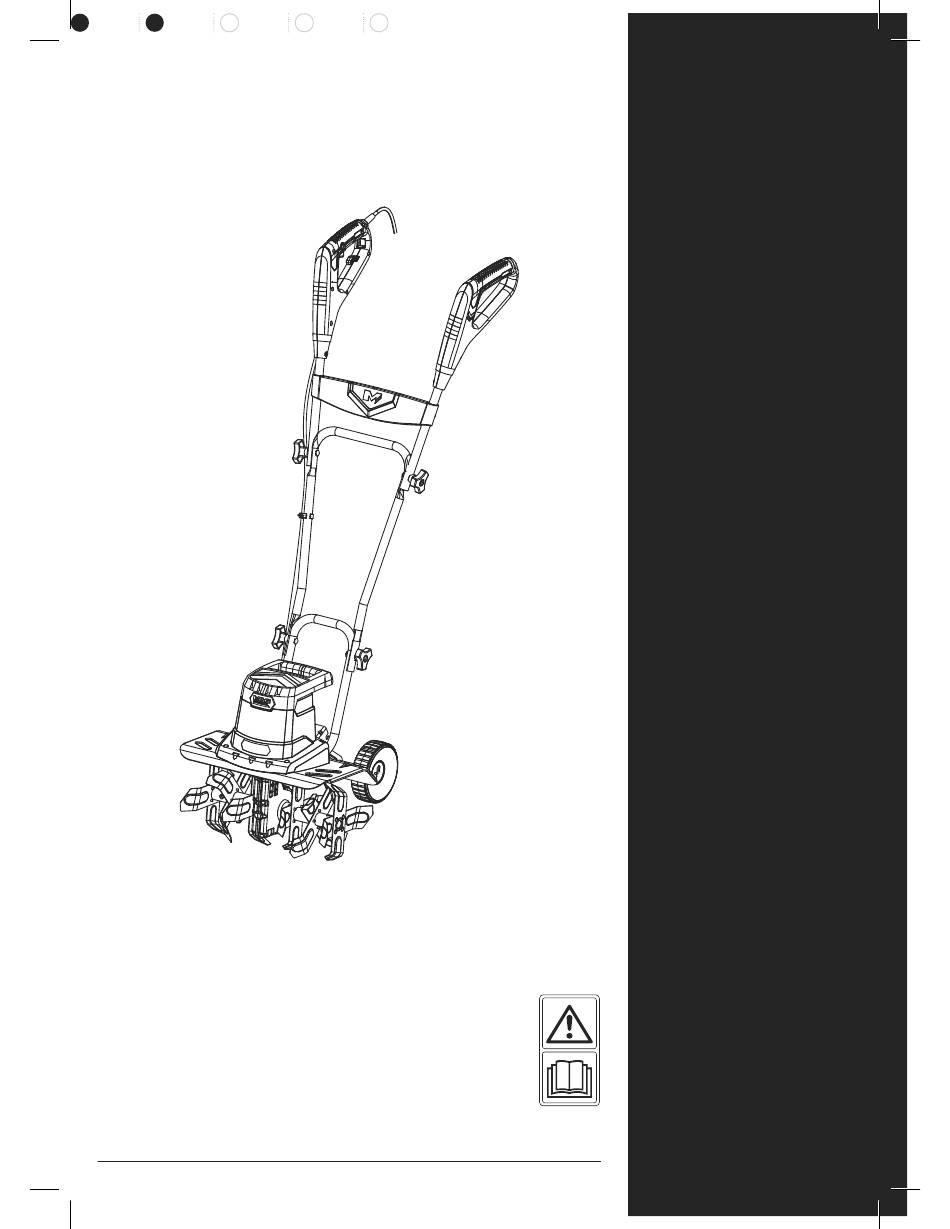

- Page 3 EN Product description 1. Handle (left & right)2. 8. Middle handle bar 2. On/off switch 9. Lower handle bar 3. Lock-off button 10. Wheel adjustment 4. Safe guard 11. Wheel a. Cord retainer* 12. Guard 5. Power cord with plug 13.
-
Page 4: Operation
EN Safety READ CAREFULLY BEFORE USE. IMPORTANT KEEP FOR FUTURE REFERENCE. Training 1. Read the instructions carefully. Be familiar with the controls and the proper use of the product. 2. Never allow children or people unfamiliar with these instructions to use the product. Local regulations can restrict the age of the operator. -
Page 5: Maintenance And Storage
3. Walk, never run with the product. 4. Work across the slopes, never up and down. 5. Exercise extreme caution when changing direction on slopes. 6. Do not work on excessively steep slopes. 7. Use extreme caution when reversing or pulling the product towards you. -
Page 6: Vibration And Noise Reduction
5. During transportation of the product, the operator must control the handles by two hands. Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low- vibration and low-noise operating modes as well as wear personal protective equipment. -
Page 7: Residual Risks
Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1. Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained. - Page 8 Wear hearing protection. Wear eye protection. Wear a dust mask. Wear protective gloves. Wear protective, slip-resistant footwear. Manufacturing date code; year of manufacturing (20yy) and week of manufacturing yyWxx (Wxx). Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.
- Page 9 The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. UK Conformity Assessed. IPX4 Protection against solid foreign bodies and against water Splash in all directions. Rating label explanation MTIP1400-2 M = MacAllister TI = Tiller P = Power General >...
- Page 10 Sound values > Sound pressure level L : 75.2 dB(A) > Uncertainty K : 2.5 dB(A) > Measured sound power level L : 87.2 dB(A) > Uncertainty K : 2.5 dB(A) > Guaranteed sound power level L : 93 dB(A) Hand arm vibration values >...
- Page 11 Assembly WARNING! Follow the assembly instructions step-by-step and use the pictures provided as a NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss. Handle bar 1. Remove the bolts (7a) from the levers (7b) & washers (7c) and keep them handy. 2.
- Page 12 WARNING! Make sure the levers (7a) are properly tightened before using the product. Connection to the power supply (for UK only) WARNING! Always use a residual current supply (RCD) protected supply. If an for outdoor use and not lighter than H05VV-F or H05RN-F, 2x1.0mm max.
- Page 13 EN Functions & Settings Intended use This Electric Tiller MTIP1400-2 is designated with a rated power input of 1400 Watts. This product is intended for loosening and working up the soil in a garden and for tilling coarse soil for mixing in fertilizer, peat and compost in domestic areas.
-
Page 14: General Operation
EN Operation General operation 1. Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 3. Always hold the product on its handles. Keep the handles dry to ensure safe support. 4. -
Page 15: After Use
Fig. 12 7. Pay special attention when changing direction. Apply light pressure onto the handle (1) so that the tines (13) are lifted to make a turn. Turn the product around guided by the wheels (11). Gradually release pressure and move the tines (13) back to the ground. WARNING! product off, disconnect it from the power supply and let it cool down. -
Page 16: Maintenance
3. Remove stubborn dirt with high pressure air (max. 3 bar). NOTE: Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces. 4. Check for worn or damaged parts. Replace worn parts as necessary or contact an authorised service centre for repair before using the product again. - Page 17 As the colours of the wire in the mains lead of this product may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows. The wire, which is coloured blue, must be connected to the terminal, which is marked with N or coloured black. The wire, which is coloured brown, must be connected to the terminal, which is marked L or coloured red.
-
Page 18: Troubleshooting
Troubleshooting product using this section. In most cases the problem can be solved quickly. WARNING! further inspection, maintenance and repair work must be performed by an Problem Possible cause Solution 1. Product does 1.1. Not connected to power supply 1.1. Connect to power supply not start 1.2. - Page 19 EN Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use.
-
Page 20: Availability Of Spare Parts
Customer care and technical helpline A better way to repair your tools fault develops with your garden power tool and you need to claim under the guarantee, the Customer Care and Technical Helpline can support with technical assistance or if required, arrange a free courier collection from your home, assess your garden power tool for fault, repair it, and return it. - Page 21 Manufacturer: EN www.diy.com UK Manufacturer: To view instruction manuals online, 1 Paddington Square, London, W2 1GG, United Kingdom EU Manufacturer: Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands 3663602627258_MNL_IN_V02.indd 21 3663602627258_MNL_IN_V02.indd 21 15-03-2023 09:22:52 15-03-2023 09:22:52...
