Summary of Contents for Kingfisher FPT800

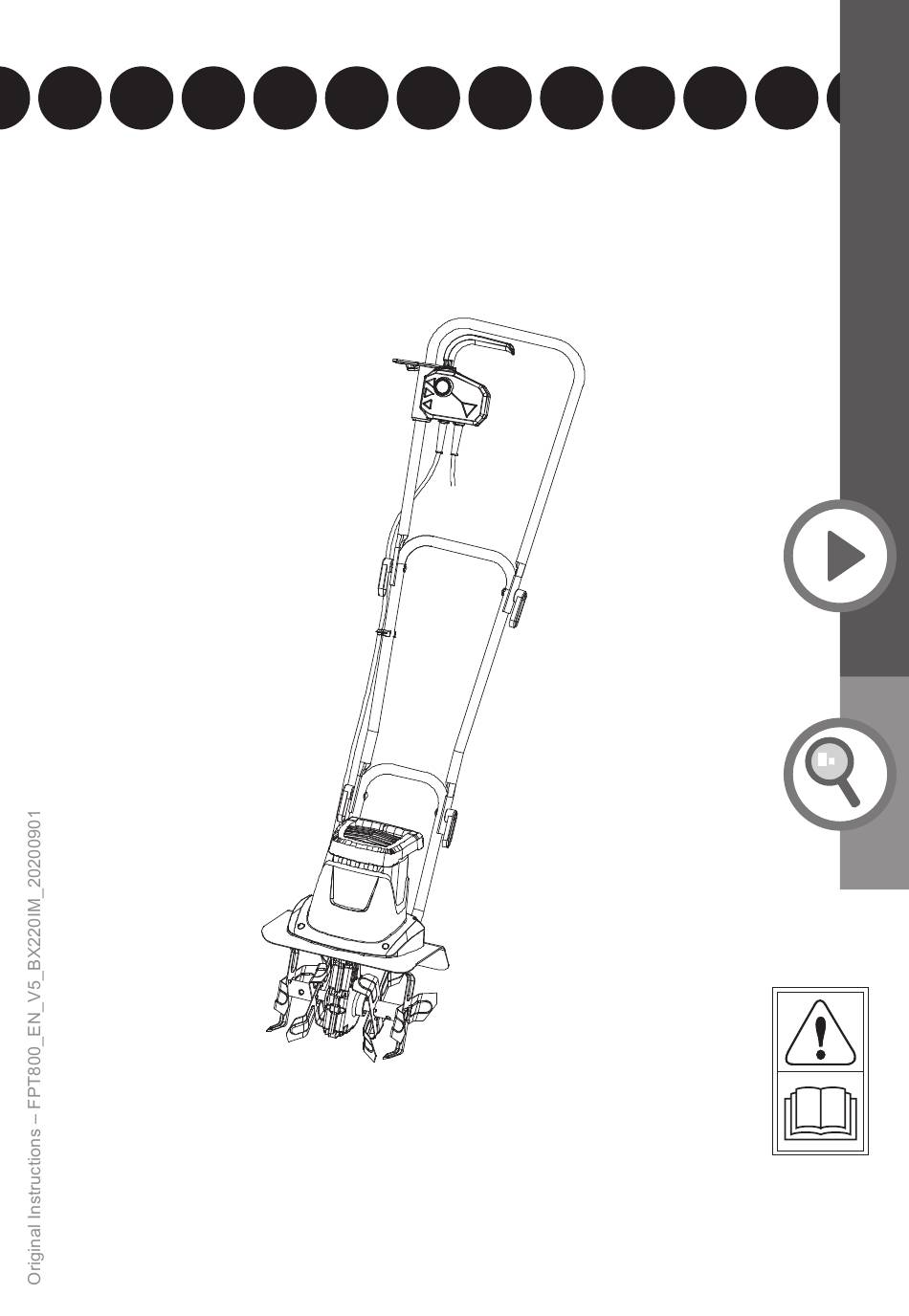

- Page 1 Electric Tiller 800W FPT800 EAN: 3663602627241 WARNING: Read the instructions before using the product!
-
Page 2: Table Of Contents
FPT800 Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start more detail... Product functions Operation Care and maintenance... -
Page 3: Safety Warnings
Safety information FPT800 Safety warnings IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. Training 1. Read the instructions carefully. Be familiar with the controls and the proper use of the product. 2. Never allow children or people unfamiliar with these instructions to use the product. - Page 4 Safety information FPT800 5. CAUTION! Do not touch rotating cutting device. Operation 1. Work only in daylight or in good artificial light. 2. Always be sure of your footing on slopes. 3. Walk, never run with the product. 4. Work across the slopes, never up and down. 5. Exercise extreme caution when changing direction on slopes.
- Page 5 Safety information FPT800 immediately) inspect for damage, check for and tighten any loose parts. replace or repair any damaged parts, Maintenance and storage 1. Follow the maintenance and repair instructions for this product. Never carry out any modifications of the product. Information about maintenance and repair is provided in this user manual.
- Page 6 Safety information FPT800 4. Keep tight grip on the handles/gripping surface. 5. Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate). 6. Plan your work schedule to spread any high vibration tool use across a longer period of time. Emergency Familiarise yourself with the use of this product by means of this instruction manual.
- Page 7 Safety information FPT800 application tools or the sudden impact of hidden objects during use. 3. Danger of injury and property damage caused by flying objects. WARNING! This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we...
-
Page 8: Symbol Explanation
Safety information FPT800 Symbol explanation On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (alternating voltage) Hertz Watt /min or min Per minute... - Page 9 Safety information FPT800 Symbol explanation Wear protective, slip-resistant footwear. Wear tight-fitted protective clothes. yyWxx Manufacturing date code; year of manufacturing (20yy) and week of manufacturing (Wxx) Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.
- Page 10 WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. FPT800: FP-OPP, T-Tiller...
-
Page 11: Your Product
Your product FPT800 Your product 1. Lock-off button 8. Lower handle bar 2. On/off switch 9. Guard 3. Main Handle 10. Tines 4. Power cord with plug 11. Gearbox 5. Upper handle bar 12. Motor 6. Mounting set (x4) 13. Air vents a. -
Page 12: You Will Need
Before you start FPT800 Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices, if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. Using an incomplete or damaged product represents a hazard to people and property. - Page 13 Before you start FPT800 Handle bar 1. Attach the cord clip (15) on the middle handle bar (7) (Fig. 1). Fig. 1 2. Remove the bolts (6a) from the levers (6b) & washers (6c) and keep them handy. 3. Align the holes in the middle handle bar (7) with the holes in the lower handle bar (8).
- Page 14 Before you start FPT800 5. Align the holes in the upper handle bar (5) with the holes in the middle handle bar (7). Make sure the on/off switch (2) is on the right side of the handle. Secure the connection with the bolts (6a) and levers (6b) & washers (6c) (Fig. 4).
- Page 15 Before you start FPT800 Connection to power supply (not for UK) For safety reasons the product is equipped with a short power cord (4). Do not connect the product directly to the power supply using this power cord. A proper extension cord is required for operation.
- Page 16 Before you start FPT800 3. Make sure the on/off switch (2) is not squeezed. 4. Connect the plug of extension cord into a suitable socket. WARNING! Check the voltage! The voltage must comply with the information on the rating label! If using an extension cord it must be suitable for outdoor use with sockets protected against water splashing.
-
Page 17: In More Detail
FPT800 detail... more Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Guarantee Technical specifications EC declaration of conformity... -
Page 18: Intended Use
Product functions FPT800 Intended use This Electric Tiller FPT800 is designated with a rated power input of 800 Watts. This product is intended for loosening and working up the soil in a garden and for tilling coarse soil for mixing in fertilizer, peat and compost in domestic areas. -
Page 19: General Operation
Operation FPT800 General operation 1. Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 2. Double check that the accessories and attachments are properly fixed. - Page 20 Operation FPT800 WARNING! Never carry this product as the person in Fig. 11 is doing. If you do, and the tines engage, you could suffer serious injury. Fig. 10 Fig. 11 4. Do not try to till too deeply or force the product into soil that is extremely hard or resistant.
-
Page 21: After Use
Operation FPT800 WARNING! Stop the motor, if the product strikes a foreign object! Switch the product off, disconnect it from the power supply and let it cool down. Inspect the product thoroughly for damage! Have any damage repaired before restarting! Extensive vibration of the product during operation is an indication of damage! Stop the motor. -
Page 22: General Cleaning
Care and maintenance FPT800 The golden rules for care WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Keep the product clean. Remove debris from it after each use and before storage. -
Page 23: Power Cord
Care and maintenance FPT800 Underbody and working tool WARNING! Wear safety gloves when working on the working tool and close to it! Use proper tools to remove debris, e. g. a wooden stick! Never use your bare hands! 1. Keep the underbody and tines (10) clean and free of debris. - Page 24 Care and maintenance FPT800 Spare parts/Replacement parts The following parts of this product may be replaced by the consumer. Spare parts are available at an authorised dealer or through our customer service. Description Model no. or Specification Tine 8421-560101 Bolt...
- Page 25 Care and maintenance FPT800 Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Storage 1. Switch the product off and disconnect it from the power supply. 2. Clean the product as described above. 3. Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
-
Page 26: Troubleshooting
Troubleshooting FPT800 Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or... -
Page 27: Recycling And Disposal
Recycling and disposal FPT800 Recycling and disposal The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is function properly. Recycle the package afterwards. -
Page 28: Guarantee
Guarantee FPT800 Guarantee This product carries a guarantee of 24 months starting from the day of purchase. Please retain your receipt as a proof. This guarantee specifically excludes losses due to: - Normal wear and tear, including accessory wear - Overload, misuse or neglect - Failure of consumable items (such as batteries) -
Page 29: Technical Specifications
Technical specifications FPT800 Technical specifications General > Rated voltage, frequency 220 – 240 V~ , 50 Hz > Rated power input 800 W > Rated no load speed n 340 min > Protection class > Tilling width 280 mm (4 tines Ø200 mm) >... - Page 30 Technical specifications FPT800 WARNING! Depending on the actual use of the product the vibration values can differ from the declared total. Adopt proper measures to protect yourself against vibration exposures. Take the whole work process including times the product is running under no load or switched off into consideration. Proper measures include among others regular maintenance and care of the product and accessories, keeping hands warm, periodical breaks and proper planning of work processes.
-
Page 31: Ec Declaration Of Conformity
EC declaration of conformity Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product 800W Tiller FPT800 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives: The Machinery Directive 2006/42/EC EN ISO 12100:2010... - Page 32 United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.diy.com To view instruction manuals online, visit www.kingfisher. www.screwfix.com com/products www.screwfix.ie www.castorama.fr Pour consulter les manuels d’instructions en ligne, www.bricodepot.com rendez-vous sur le site www.kingfisher.com/products www.castorama.pl Aby zapoznać...
