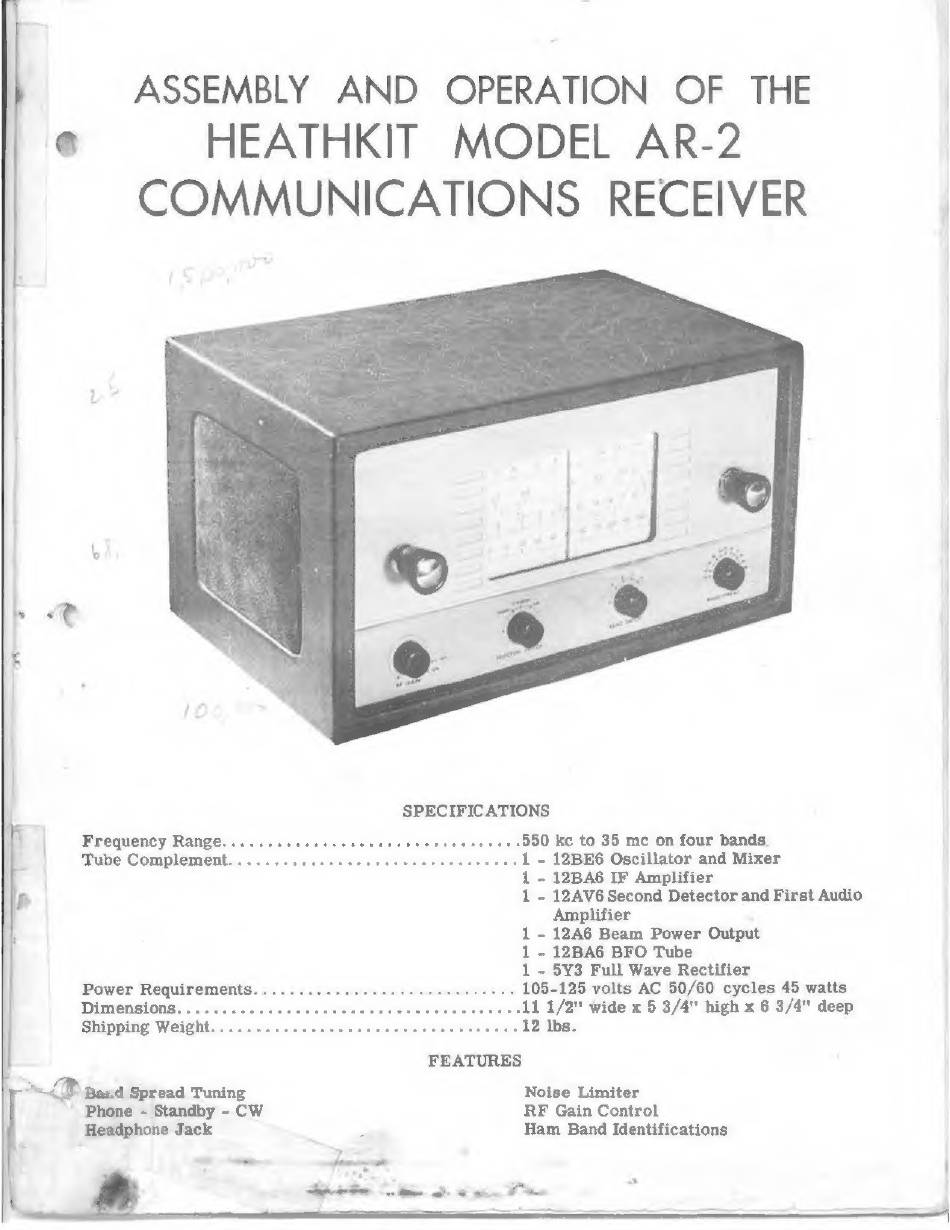

ASSEMBLY AND OPERATION OF THE
a HEATHKIT MODEL AR-2
COMMUNICATIONS RECEIVER
SPECIFICATIONS
BLOQUeNCY RAN Ge wisoia io 6 conse sis, sis:aisiarare wie sarees aie wie sie 550 ke to 35 mc on four bands.
MAb COMPlOMenityissiass, ars cwwdrersje.atw Cayeteras wee ies 1 - 12BE6 Oscillator and Mixer
1 - 12BA6 IF Amplifier
1 - 12AV6 Second Detector and First Audio
Amplifier
1 - 12A6 Beam Power Output
1 - 12BA6 BFO Tube
1 - 5Y3 Full Wave Rectifier
Power Requirements: <6 ..< sa cceewiajere ais aeravwieyeie we cup oe 105-125 volts AC 50/60 cycles 45 watts
Dimensions...... .11 1/2" wide x 5 3/4" high x 6 3/4" deep
Shipping Welghitaisss%is ss cevsiewaa sawaciwsnie seen vee 12 lbs.
FEATURES
|
! ~{ Baud Spread Tuning Noise Limiter
Phone - Standby - CW RF Gain Control
Headphone Jack Ham Band Identifications
