Heathkit AR-2 Assembly And Operation Manual

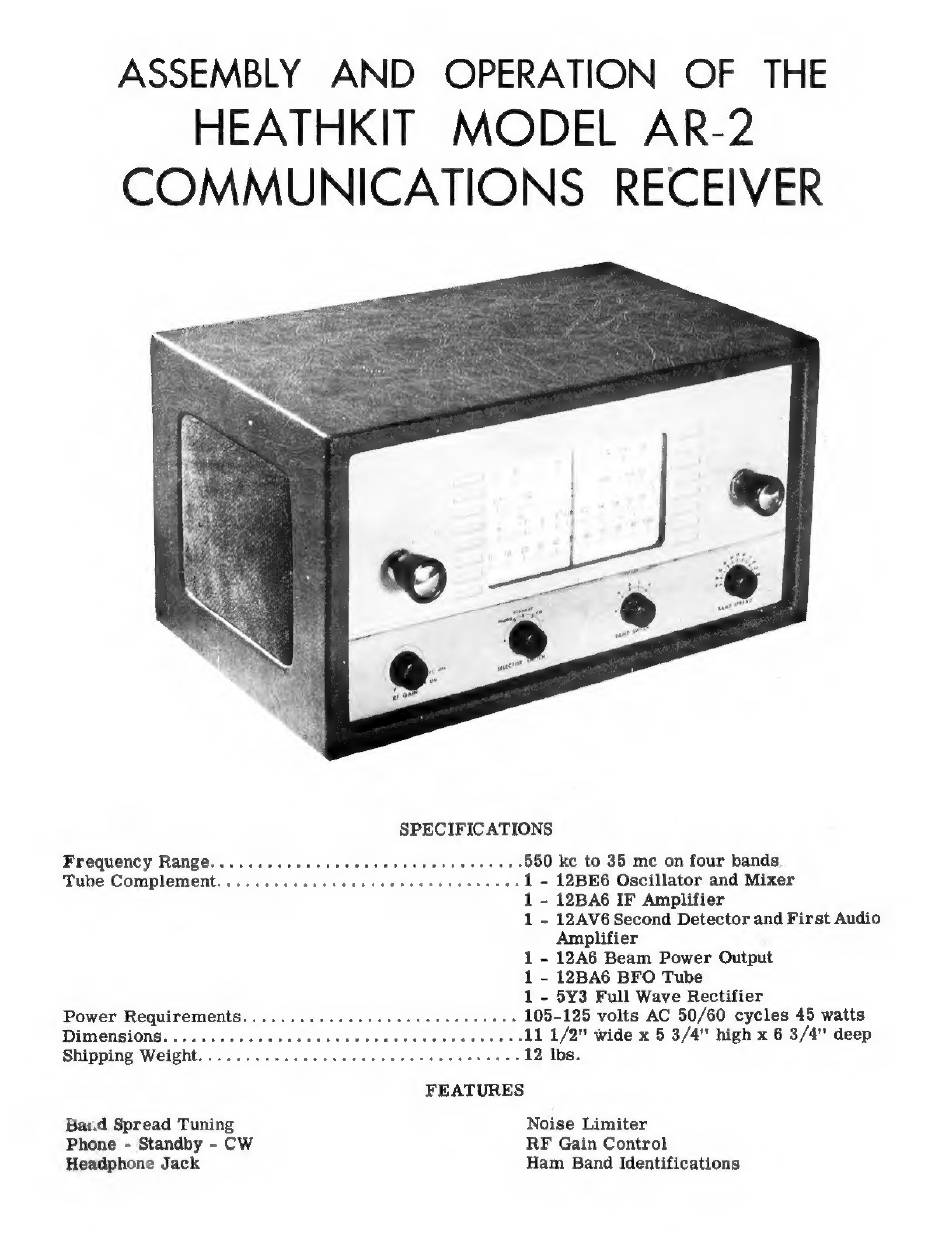

ASSEMBLY AND OPERATION OF THE

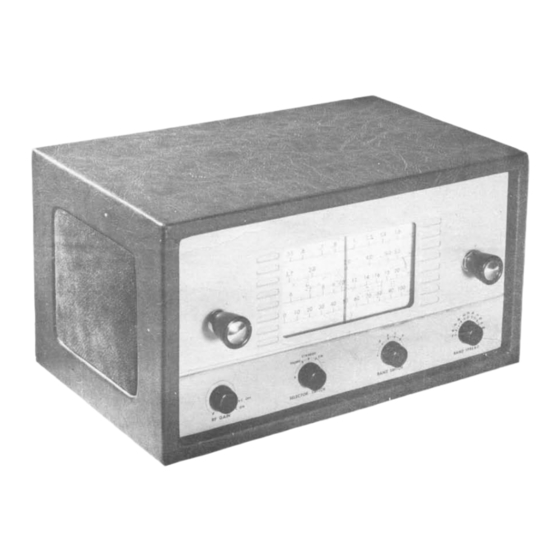

HEATHKIT MODEL AR-2
COMMUNICATIONS RECEIVER
SPECIFICATIONS
Frequency Range. sea tes caveats Meee een eee 550 kc to 35 mc on four bands
Tube Complement........... 00... cece cece eee e eee 1 - 12BE6 Oscillator and Mixer
1 - 12BA6 IF Amplifier
1 - 12AV6 Second Detector and First Audio
Amplifier
1 - 12A6 Beam Power Output
1 - 12BA6 BFO Tube
1 - 5Y3 Full Wave Rectifier
Power Requirements. ............ eee cece e eens 105-125 volts AC 50/60 cycles 45 watts
Dimensions....... 11 1/2" wide x 5 3/4" high x 6 3/4" deep
Shipping Weight. 12 lbs.
FEATURES
Bai.d Spread Tuning Noise Limiter
Phone - Standby - CW RF Gain Control
Headphone Jack Ham Band Identifications
