Summary of Contents for Philips XW3192/11

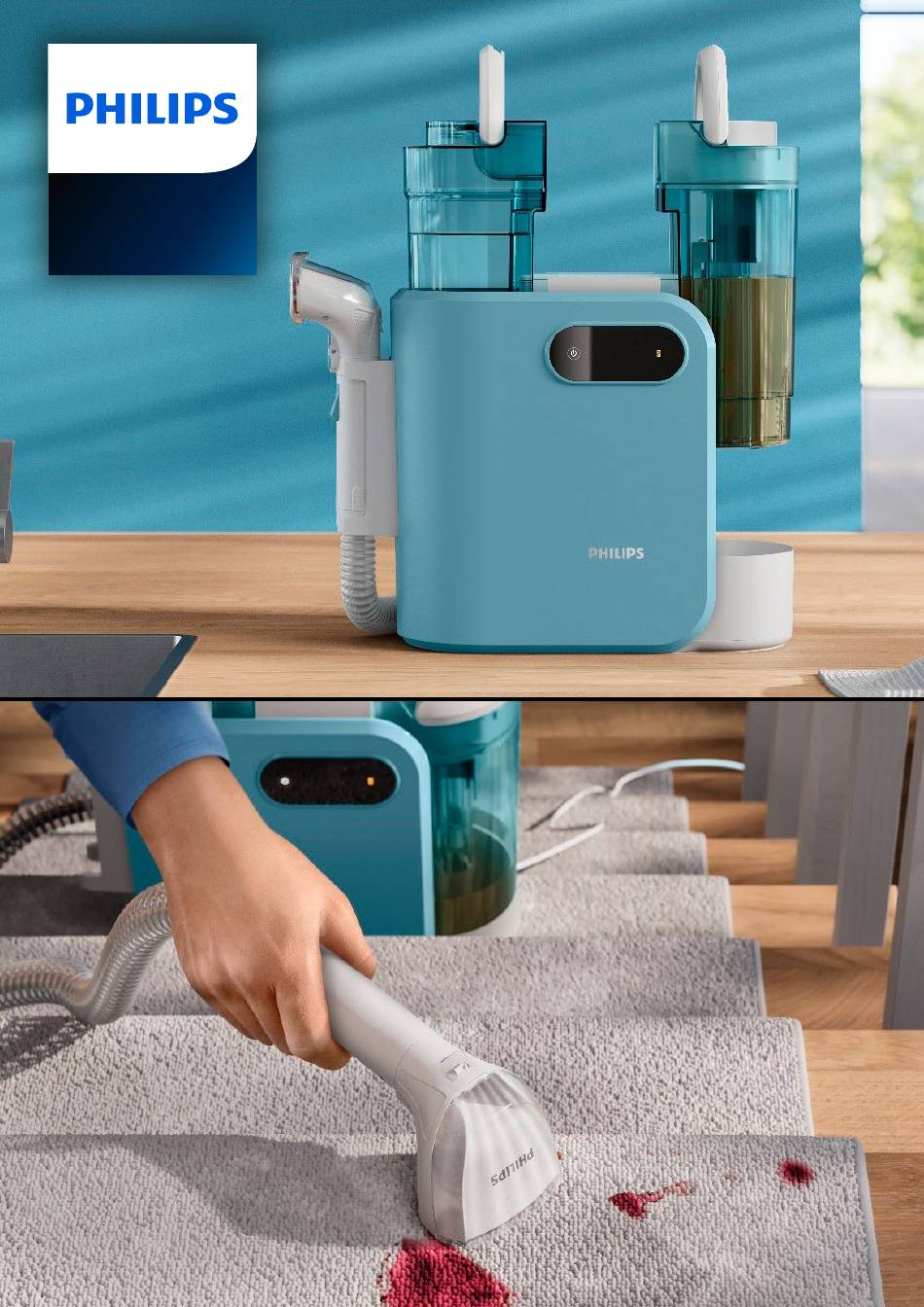

- Page 1 Service Manual Spot On XW3192/11...
-
Page 2: Table Of Contents
• After repair the appliance has to meet the regulatory- and safety requirements that were applicable at the time of release of the model. • After repair the appliance always has to be tested for electrical safety according VDE 0701-0702 and for medical products IEC 62353. XW3192/11... -
Page 3: Package Diagram
Package diagram Pictures how the appliance is packed in the box, together with all accessories:... -
Page 4: General Information
• After repair the appliance has to meet the regulatory- and safety requirements that were applicable at the time of release of the model. • After repair the appliance always has to be tested for electrical safety according VDE 0701-0702 and for medical products IEC 62353. XW3192/11... -
Page 5: Technical Information
Technical information Production date (or serial number) Bottom: This is an example how type plate looks like SN 2445 means: production wk 45 of 2024. Electrical diagram... -
Page 6: Disassembly- And Reassembly Advice
• And remove the 2 screws. • Remove the 4 screws inside. Now PCB can be taken out: • Unscrew the Motor cover bracket and take out. • And remove the body upper with handle. • Remove the wire from the card slot. XW3192/11... - Page 7 Disassembly- and Reassembly advice • The 6 screws in the Bottom Plate can now be • Now the Cable assy can be taken out, unscrewed. by lifting up. • Turn the appliances. • And unscrew the 3 screws at the Cable assy. •...
- Page 8 • For the one screw. • Also remove the screw under this part. Now the motor assy is visible and can be removed. • Bottom Plate can be removed by lifting up: • Unscrew the 2 screws and connection of the water hoses: XW3192/11...
- Page 9 Disassembly- and Reassembly advice • Loosen clip for water pipe, Avoid hurt the white Disassembly of Motor assy: silicon pipe causing leakage. • Remove 1 screw so the Pump can be removed from the Motor assy. • Remove the 3 screws to make it possible to remove the complete hose assy.
- Page 10 • check that the rubber seal is not squeezed • After assembly, by simply checking pos 6, if it can hold water like above picture shows, that will indicate no more leaking. XW3192/11...
-
Page 11: Troubleshooting
This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country. -
Page 12: Explanation Ui Signal On Appliance
Explanation UI signal on appliance UI signal on appliance Suggested solution Dirty watertank is full • Unplug the appliance • Remove Dirty watertank and empty the Dirty watertank XW3192/11... -
Page 13: Service Parts
Service parts Service code Description 6420 010 13979 Dirty water tank rack handle assy 6420 010 13983 Dirty water tank sensor assy 6420 010 13965 Dirty water tank with handle... - Page 14 Service parts Service code Description 6420 010 13966 Clean water tank Flip assy 6420 010 13967 Clean water tank assy 6420 010 13946 Water inlet mesh assy XW3192/11...
- Page 15 Service parts Service code Description Remark 6420 010 13971 Small nozzle assy 6420 010 13951 Brush transparent cover 6420 010 13993 Brush head assy 6420 010 14004 Brush body assy 6420 010 13984 Self clean cap...
- Page 16 Service parts Service code Description Remark 6420 010 13985 Motor assy 6420 010 14006 Pump assy XW3192/11...
- Page 17 Service parts Service code Description Remark 6420 010 14009 Main PCBA 6420 010 14011 UI board 6420 010 14012 UI pannel sticker 6420 010 14015 Motor inlet filter Foam 6420 010 14020 Body cover front...
- Page 18 Water spray control board 6420 010 14014 Sealing O ring 6420 0101 4016 Cable with EU plug 0.75 / 5m / Euro 6420 010 14017 Hose assy 1.8 m 6420 010 14018 Bottom plate 6420 010 14019 Adaptor fix cover XW3192/11...
-
Page 19: Version History
Version history 24/08 Version 1.1 : XW3192/11 initial release. 24/10 Version 1.2 Added points to consider when reassembling on page 10 Changed pos 10 on page 16 24/11 Version 1.3... - Page 20 www.philips.com...
