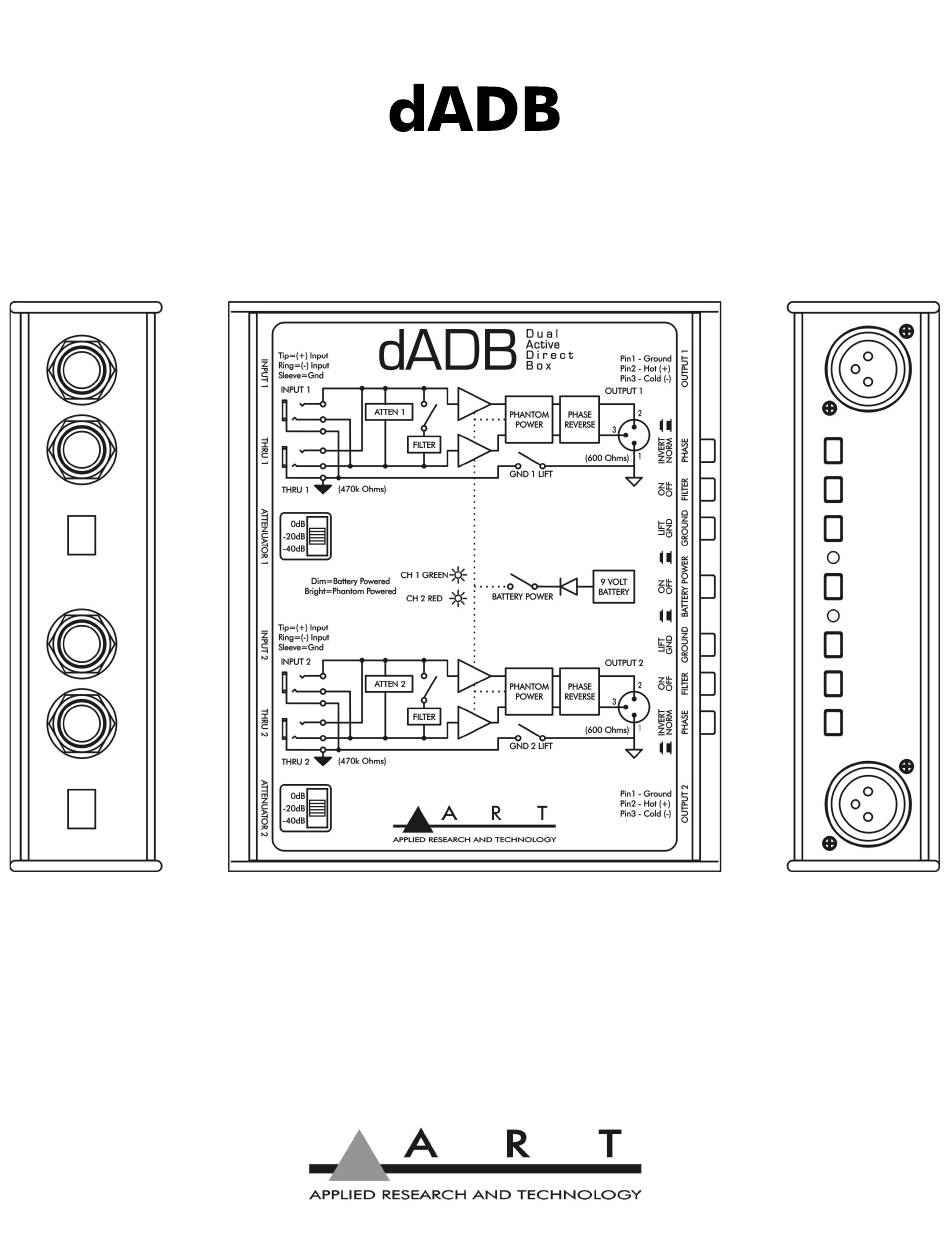

- Page 1 Dual Active Direct Box USER'S MANUAL...
-
Page 2: Important Safety Instructions - Read First
IMPORTANT SAFETY INSTRUCTIONS - READ FIRST This symbol, wherever it appears, This symbol, wherever it appears, alerts you alerts you to the presence of uninsulated to important operating and maintenance dangerous voltages inside the enclosure that instructions in the accompanying literature. may be sufficient to constitute a risk of shock. - Page 3 The compact black all steel case and it’s active design allow the dADB to provide years of trouble free service in Live Sound, Permanent/Fixed Install, D.J., and virtually any PA application. It’s full feature set, rugged construction, and high-end specifications make the dADB the obvious choice.
- Page 4 As an example, suppose a guitarist wants to record a practice session. They would plug their electric guitar into an INPUT jack on the dADB and then plug a cable from the corresponding THRU jack to their guitar amplifier. Their buffered guitar signal could then be sent to a mixing console or recording device from the associated OUTPUT of the dADB.
-
Page 5: Warranty Information
Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (A R T) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase. - Page 6 SERVICE The following information is provided in the unlikely event that your unit requires service. Be sure that the unit is the cause of the problem. Check to make sure the unit has power, all cables are connected correctly, and the cables themselves are in working condition. You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration.
-
Page 7: Specifications
SPECIFICATIONS Frequency Response 10 Hz - 100 kHz, ± 0.5 dB @ +0 dBu <.05% (typical) Dynamic Range >100 dB (typical) Channel Separation > 80 dB (typical) Maximum Input Level +4, +24, +44 dBu (depending on attenuator setting) Maximum Output Level +6 dBu (battery powered), +14 dBu (phantom powered) Input Connections... - Page 8 E-mail: support@artproaudio.com © 2019 Applied Research & Technology dADB V1.2 Dual Active Direct Box...
