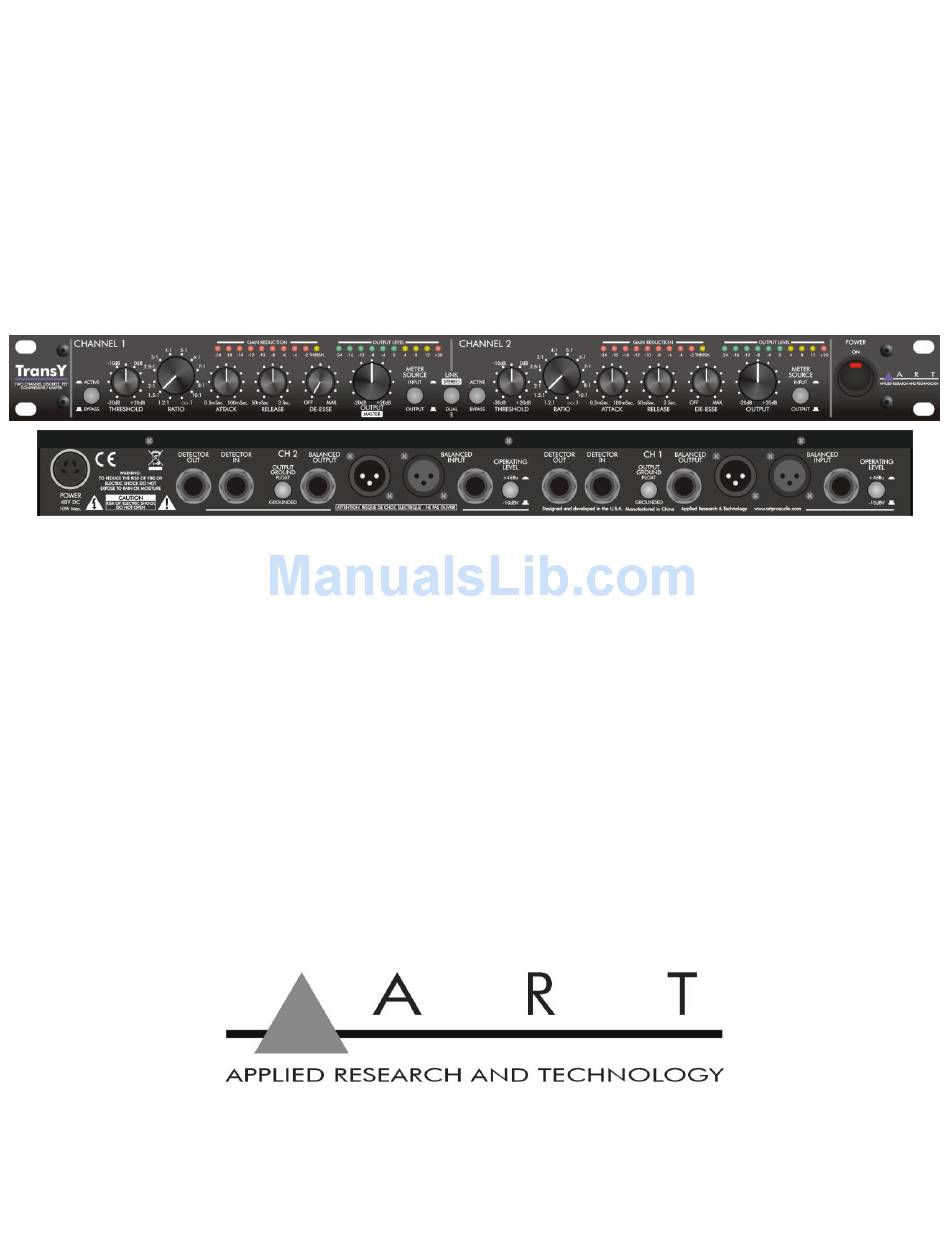

- Page 1 TransY TWO CHANNEL DISCRETE TRANSISTOR FET BASED COMPRESSOR/LIMITER USER'S MANUAL...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS – READ FIRST This symbol, whenever it appears, alerts you This symbol, wherever it appears, alerts to the presence of uninsulated dangerous you to important operating and maintenance voltage inside the enclosure. Voltage that instructions in the accompanying literature. may be sufficient to constitute a risk of shock.
-
Page 4: Table Of Contents
TransY TWO CHANNEL DISCRETE TRANSISTER FET BASED COMPRESSOR/LIMITER IMPORTANT SAFETY INSTRUCTIONS – READ FIRST ................ II INTRODUCTION ............................1 Key Features Include: ..........................1 INSTALLATION ............................2 Unpacking ............................... 2 AC Power Hookup ..........................2 Analog Audio Connections ........................2 REAR PANEL connections and controls .................... -
Page 5: Introduction
Apply the TransY as your secret weapon from playing out live to recording and mastering. The TransY can handle whatever you throw at it producing a professional result. Master your unique sound with the TransY. -
Page 6: Installation
INSTALLATION The ART TransY may be used in a wide variety of applications and environments. Housed in a rack- mountable, all-steel enclosure, the unit is designed for continuous professional use. Mounting location is not critical. However for greater performance and reliability, we recommend that users not place the unit on top of power amps, or other sources of heat and/or strong magnetic fields. -
Page 7: Rear Panel Connections And Controls
Balanced Outputs The analog output of the TransY is available on both a 1/4-inch TRS balanced jack and an XLR jack. This output is transformer balanced. The output has a low impedance for driving long lines. “0” on the output meter corresponds 0dBu (.775 VRMS) at the output jacks when the I/O switch is set to +4 and -10dBV when set to -10. -
Page 8: Front Panel Controls And Indicators
Bypass switch is in the out position, even when power is off. Threshold Control The THRESHOLD control sets the point at which the TransY will act on a signal. Turning this control counter-clockwise lowers the threshold (adding more compression to a signal). Turning this control clockwise raises the threshold. -
Page 9: Attack Control
De-essing refers to reducing the "s" and "sh" sounds level that is be increased when adding compression. The TransY De-esser control lowers the threshold of compression of a narrow band of frequencies to maintain a more natural level of sibilance as you increase compression. -
Page 10: The Link Switch
If the TransY fails to power up when the POWER switch is turned on, check to see that its power cord is plugged into an active outlet. If the unit still fails to operate properly, turn it off and unplug it. -
Page 11: Vocal And Instrument Leveling
The musical nature of the TransY makes it ideal for use on a wide range of instruments and vocals. Place the TransY into a channel insert, after a preamplifier, or in line with the direct output of a mixer channel. Adjust the controls of the TransY to achieve the desired amount of compression. -
Page 12: Warranty Information
Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (A R T) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase. -
Page 13: Service
Service The following information is provided in the unlikely event that your unit requires service. Be sure that the unit is the cause of the problem. Check to make sure the unit has power, all cables are connected correctly, and the cables themselves are in working condition. You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. -
Page 14: Specifications
SPECIFICATIONS Max input level Balanced, +4/-10 +21dBu / +9dBu Detector input +20dBu Input Impedance 33k / 2M Balanced input / detector input Max Output level Balanced, +4/-10 +21dBu/ +9dBu Detector +20dBu Output Impedance 110 / 250 Balanced, +4/-10 270 ... - Page 16 E-mail: support@artproaudio.com © 2018 Applied Research & Technology/ Yorkville Sound TransY TRY-5004-102 TWO CHANNEL DESCRETE TRANSISTOR FET BASED COMPRESSOR/LIMITER...
