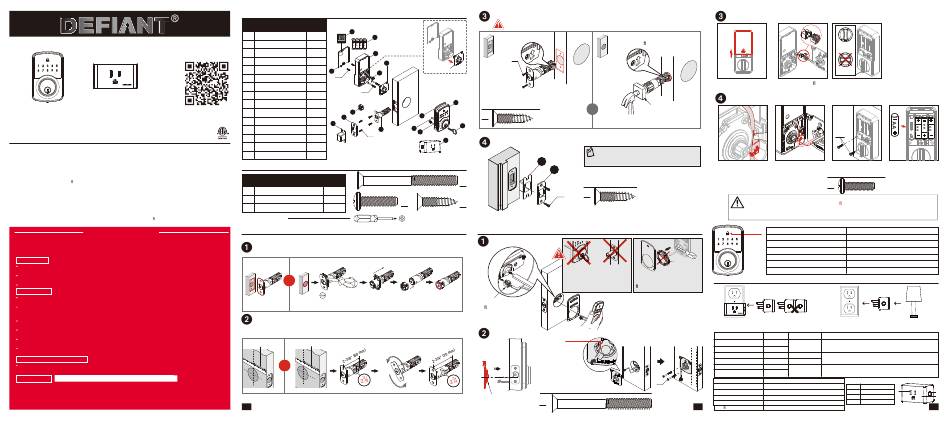

Defiant G32-KPDAJ12-CK0C-XQ Installation And User Manual

G32-KPDAJ12-CK0C-XQ Rev. 24/05-00
INSTALLATION AND USER GUIDE
LOCK INSTALLATION VIDEO
Questions, problems, missing parts?
https://bit.ly/3K52U3b
Before returning to the store, call Hubspace Customer Service
TOLL FREE HELP LINE 1-877-592-5233
HOMEDEPOT.COM/HUBSPACE
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
WARRANTY
LIMITED LIFETIME MECHANICAL,1 YEAR ELECTRONIC AND SMART PLUG WARRANTY
The retailer of this product, hereby warrants, subject to the conditions set forth below, that it will either repair or replace,
at its option, this product if it proves to be defective by reason of improper workmanship or materials within the original
purchaser's limited time. In order to obtain repairs or replacement under this limited warranty you must bring this product
to the retailer's store in which you bought it.
Original purchaser: This limited warranty is limited to the original purchaser at retail of this product from retailer.
Except to the extent prohibited by applicable law, no other warranties, whether express or implied, including the
warranties of merchantability and tness for a particular purpose, shall apply to this product. Under no circumstances
shall retailer be liable for consequential or incidental damages in connection with this product. To the extent retailer is
prohibited by applicable law from excluding implied warranties, the duration of such implied warranties which are not
excludable shall be the original purchaser's lifetime. Some states do not allow the limitation on how long an implied
warranty lasts, so the above limitation on the duration of implied warranties which are not excludable, if any, may not
apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion of incidental or consequential damages may not apply to you.
Retailer neither assumes not authorizes any representative or other person to assume for it any obligation or liability other
than such as is expressly set forth herein. This limited warranty gives you speci c legal rights, and you may also have
other rights which vary from state to state.
IMPORTANT NOTICE
Please Read This Notice Before Installing, Using, and Servicing the Product
The product is designed and manufactured for providing security. Please read carefully and follow the
instructions given below. Lack of proper working knowledge or improper use could cause unexpected
damage or loss to personal or commercial belongings.
Installation
Please contact your local service provider prior to the installation as your door preparation may be different
from the standard the product conforms to.
Any removal or replacement of parts in installation is NOT recommended and may invalidate the warranty
of the product.
Not to be used on an Emergency Exit.
Product Use
ALWAYS use authentic alkaline batteries. It is the user's responsibility for damage caused by
using unauthentic batteries.
The product is made of mechanical and electronic components, which may be sensitive towards water,
physical impact, and electric shock. Using the product with care prevents unexpected malfunction and
optimizes the product life span.
DO NOT disassemble the product without advice from qualified service provider. Unauthorized disassembly
will void the product warranty.
Please refer to TROUBLESHOOTING page if any problem occurs, or contact your local service provider for
professional instructions.
Remove all batteries from the lock at the same time and replace them with new batteries of the same size
and type.
Preserve battery and lock life by removing the batteries when the lock is not being used for more than 3
months.
Service and Maintenance
ALWAYS seek advice from your local service provider on cleaning, moving, or maintaining the product.
The information in this notice is subject to change without notice.
Smart Plug
Make sure to use this product together with 15A circuit breaker in the upstream.
For indoor use only. Do not use in wet locations. The total current limit of the device is 15 Amps. To avoid
damage, do not exceed the 15 Amp limit. If a direct short is created on the output, the Smart Plug will be
damaged and no longer function. Do not disassemble the product or make repairs yourself. You run the
risk of electric shock and voiding the limited warranty. If you need service, please contact Customer
Support.
Package Contents List
Part Description Quantity
O
A Exterior Assembly 1
N
B Power Cable 1
SCAN FOR
C Torque Blade 1
E
D Mounting Plate 1
E Interior Assembly 1
F
BB
F Battery Cover 1
G Latch 1
AA
H Strike Plate 1
I Dust Box 1
J Key 2
K
H
K Drive-in Collar (Optional) 1
I
1
L Exterior Gasket
CC
M Smart Plug 1
5003280
N Battery 4
O QR code 1
Hardware Contents (Actual Size)
Part Description Quantity
AA 1-13/16" (46 mm) Mounting Bolt 2
BB 13/16" (20 mm) Screw 2
CC 3/4" (19 mm) Wood Screw 4
Tool Required
Step 1: Install the latch and strike
Choose faceplate
Edge of door Edge of door
OR
Flat head screwdriver
For door prepped
for faceplate latch. For door prepped for drive-in latch.
Set the latch backset
Your latch is set for 2-3/8" backset. It can be adjusted if needed to 2-3/4"
(skip this if your door has a 2-3/8" backset).
2-3/8'' (60 mm) 2-3/4'' (70 mm)
OR
01
Install the latch
You must use the latch that was provided in the packaging.
CC
D
Mounting Plate
B
Insert screws and tighten.
A
Hardware Used (Actual Size)
L CC
J
C
G
B
M
Install strike plate in door jamb
I
H
AA
CC
BB
CC
Step 2: Install Electronic Deadbolt
Installing the lock assemblies
Drive-in collar
Rotate torque blade to
t in latch. Cable goes
underneath latch.
Fasten the mounting plate to door
Slide the cable
through the notch in
mounting plate.
180º
Hardware Used (Actual Size)
The bulged part of the
mounting plate must AA
face towards the door.
Connect the cable firmly into connector port
Tap latch ush
Drive-in latch
Slide up battery cover
to expose battery case.
Install interior assembly
Wood block (not included)
OR
Check the strike plate to make sure it is
NOTE:
properly aligned and clear so the bolt can freely
move in the hole.
The cable must be
arranged as shown in
the diagram.
Hardware Used (Actual Size)
CC
Indicator
Adapter collar
Do NOT leave The latch bolt
should be in
the key in the
For 1-1/2" (38mm) bore hole ONLY.
Step 3: Smart Plug
retracted
cylinder during
Pry the adapter collar off with a
position.
installation.
at head screwdriver.
Hold onto the
cylinder during
installation.
Insert the Smart Plug
into a wall socket.
Smart Plug
LED State
Orange Quick Blink
Orange/Green Quick Blink
Off
Green
Red
Orange
Input
AA
Output
Network Wireless Type
Keep parallel
Operating Temperature
to door edge.
Operating Humidity
02
Certi cation
CORRECT
WRONG
Connect the cable rmly
Keep the thumbturn in
into connector port. vertical position.
BB
Insert screws and tighten. Install batteries
Insert the torque blade
into the interior slot of Please use four alkaline
Hardware Used (Actual Size)
the thumbturn. batteries for better
performance.
BB
CAUTION :
Must complete Hubspace app setup prior to rst use for:
・Bolt Direction Check・Pin Code Setup
Notice: Bolt Alignment check must be completed for proper functionality.
Lock
Indicator State Meaning
Red Light Wrong PIN code was entered.
Yellow Light The batteries are in low power.
Green Light Correct PIN code was entered.
Red Light Flashes 2 Times with 2 Beeps Lock has been removed from the Hubspace app.
Green Light Flashes with 1 Beep Lock/Unlock successfully.
Red Light Flashes 3 Times with 3 Beeps Lock/Unlock unsuccessfully.
Do not insert Insert the plug into the socket. You can now plug in the
plugs in a row. The plug is now ready to use. desired electrical appliance.
Plug State Meaning Action To Take
Set up Wi-Fi for the product. If you have already set up Wi-Fi for
Off
Wi-Fi is not
this product, wait for it to connect. Check the Hubspace app for
connected.
On connectivity status.
Off The plug is off.
No action required.
On The plug is on.
Go to the device settings in the app and set up Wi-Fi again.
Off There is a Wi-Fi
Check that your WiFi Access Point is allowing the device to join
error.
On
the network.
120VAC, 60Hz
120VAC, 60Hz,15A Maximum load, Resistive Part Description
a a
2.4GHz, IEEE 802.11b/g/n Power Socket
b Indicator Light
32°–104° F
c Power Button
5-85% RH, Non-condensing
FCC, IC, ETL
c
b
03
