American Dynamics TYCO Victor Standard Quick Start Manual

Feature set

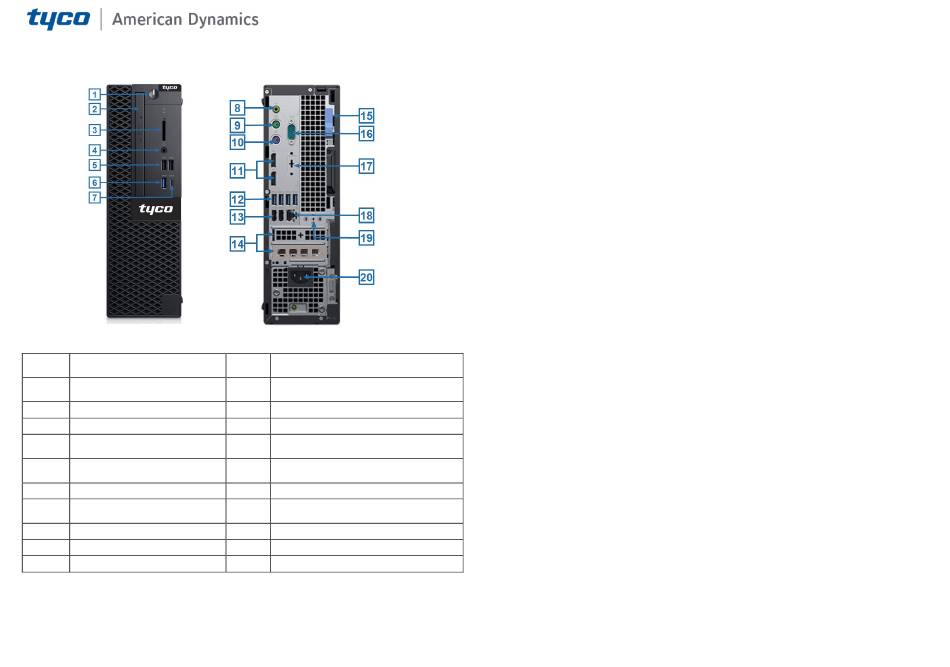

Front view
Callout Description
Power button
1
Optical Drive: 8x DVD+/-RW
2
Media card reader
3
Universal audio jack
4
USB 2.0 ports x2:
5
One port with PowerShare
USB 3.1 Gen 1 port
6
USB 3.1 Gen 2 Type-C port
7
with PowerShare
Line-out
8
PS/2 keyboard port
9
PS/2 mouse port
10
8200-2025-13 B0
Back view
Callout Description
Do Not Use. Use monitor ports from
11
Quadro Video Card (14).
USB 3.1 Gen 1 ports x4
12
USB 2.0 Gen 1 ports x2
13
PCle slots x2:
14
Quadro Video Card SLOT2
Release latch
15
Serial port
16
Video port
17
RJ-45
18
Knock-out slots for wireless antennas
19
Power connection
20
victor Standard Workstation and victor Performance Workstation
Quick Start Guide
Package contents
Victor Standard Workstation
Workstation, regional power cord, mini DisplayPort adaptors (4x mini DisplayPort to DisplayPort
and 2x mini DisplayPort to HDMI), recovery media USB including victor installation media, USB
wired keyboard, and USB wired mouse.
victor Performance Workstation
Workstation, regional power cord, mini DisplayPort adaptors (4x miniDisplay Port to Display Port
and 4x miniDisplay Port to HDMI), recovery media USB including victor installation media, USB
wired keyboard, and USB wired mouse.
Required items not included
Monitor, network cables, and network switch.
Note: For optimum performance, use a 1920 x 1080 @ 60 Hz monitor. Use shielded Ethernet
network cables in Europe.
Hardware setup
1. Connect the USB keyboard and a mouse (13).
2. Connect one monitor to a Mini DisplayPort Adapter (14).
• The victor Workstation can support up to four monitors at 4K resolution.
• For optimum performance use 1920x1080 resolution @ 60 Hertz.
After you change monitor resolution you should always reboot the workstation.
•
Note: Do not use the miniDP ports on the motherboard (11). You must use the monitor
ports provided by the Quadro video card (14).
3. Connect a network cable: LAN port (18) to the device network (Gigabit switch or VLAN).
4. Connect any other required items.
Connect the power cable (20).
5.
6. Turn on the victor Workstation (1).
Setting up victor Application Server for remote access
After you turn on the victor Workstation, the unit begins the first boot configuration of the
operating system (OS). The Windows 10 Out of Box Experience (OOBE) guides you through the
initial setup of your new unit.
Configuring OOBE settings
1. Configure the region and keyboard layout
2. Read and acknowledge the End User Licensing Agreement (EULA)
3. Create a Windows User Account: Username, Password, and Hint
• For an offline/local User Account click Domain join instead.
Note: The password must contain 8 characters, including one uppercase letter and one
number.
4. Disable privacy settings as follows:
