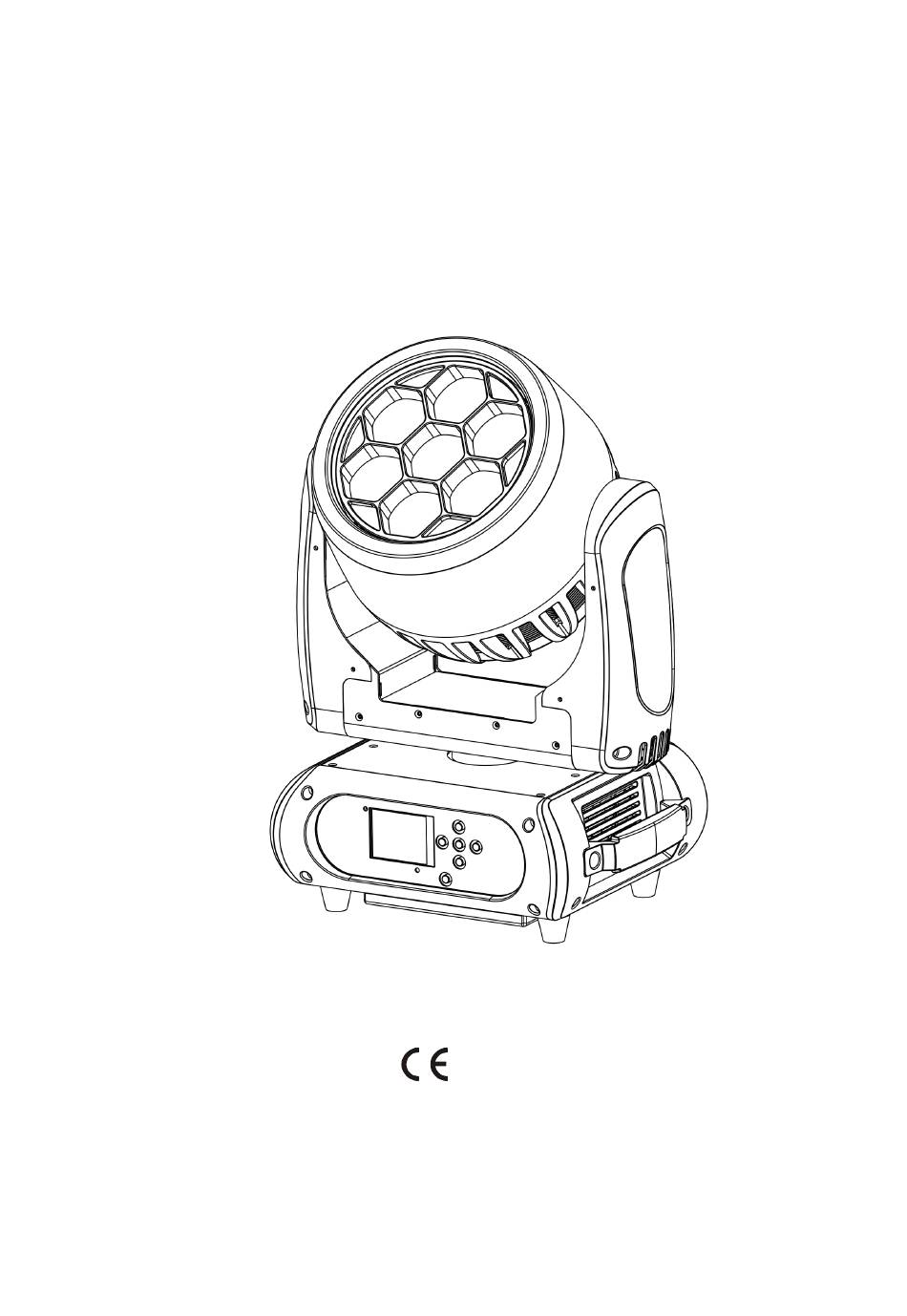

- Page 1 BSL MAGIC BEAM 7 USERS GUIDE...
-
Page 2: Product Introduction
1. Product Introduction: 1.1 Before unpack the fixture, pls make sure that the packing is in good condition, following items will be found in the box: -The fixture -This users guide -3m DMX cable -1.5m power cable with powercon -Omega bracket for hanging installation -Safety chain 1.2 Specification Source Light source: 7pcs OSRAM 40W 4in1 leds, PIXEL control Led life: 60.000 hours Luminous Flux: 7000lumen, 43000lux@3m at 4° Control: Remote on/off via DMX Ballast: switching mode power supply Optical System Beam angle: 4° to 36° X/Y Pan: 630° (1.56sec) or 540°(1.3 sec), Tilt: 265° (0.85 sec) 16-bit resolution Auto repositioning 3 phase motor for crazily fast and quiet movement Features DMX channels: 22/51/19/21 Super fast, smooth and silent movement 7pcs LED, RGBW pixel dimming Pixel control of every single led on RGBW separately Nice maping effect with dimming and color fading at the same time RGBW four colors mixing to create vivid, saturated and uniform color effect Pre-set color temperature at 2700K, 3200K, 4200K, 5600K and 8000K zoom from 4° to 36° Full range 0-100% dimmer Various strobe RDM function to change DMX address, display flip, X/Y Reverse and so on Software upgrade via DMX Hibernation when lost DMX for preset time Indicate temperature info of base, arm and lamp... -
Page 3: Operation Button
Fan speed auto change according to temperature Heat pipe for cooling Display 2.4inch super nice LCD display with friendly English/ Chinese/French/Spanish menu Auto lock Flip Back-up communicating IC Pre-set wireless and battery holder 1.3 Description of the Device 1. Project lens 2. Head 3. Arm 4. Base 5. Display 6. Foot stand 7. Operation button 8. Handel 9. Wireless indicator 10. Mic 11. Left button 12. Battery indicator 13. Up button 14. Down button 15. Enter button 16. Right button 17. Ethernet out 18. 5-pin DMX in 19. Ethernet in 20. 5-pin DMX out 21. Powercon in 22. Fuse... -
Page 4: Safety And Maintenance Information
2. Safety and maintenance Information 2.1 Safety Info Before operate this unit, please carefully read this users guide and keep if needed in future. It’s necessary to respect following rules. The disposal of the device after lifecycle could damage the environment, need to take it to special company for recycling or return to authorized dealer. The products referred to in this manual conform to the European Community Directives and are therefore marked with CE logo. Keep this device away from children and unauthorized users, the manufacturer will not take responsibility for the damage due to any disregard of the information provided in this manual and wrong operation. Before operate the device, pls make sure the fixture is in good housing, ensure pan and tilt can rotate in its complete range. Pls make sure minimal 0.5m distance need to kept between the fixture to any flammable material. --0.5m The device can only run with 100-240v voltage, 50/60Hz power, don’t connect to any other wrong power. Disconnect the device from main power before open the shield or maintenance. The device is designed only for indoor usage, pls keep it away from moisture. Do not expose the device under the sun or directly to any other lighting source. Never look directly into the projecting lens when the fixture is power on, the light may trigger epileptic seizures in photosensitive persons or persons with epilepsy. Especially at beam effect, extreme caution and observance of these safety instructions is mandatory. Don’t put or install the device on a surface that subject to vibration or bumps. The device is supposed to work in the temperate range -15° C and +45° C, do not use the device Ta=4 5℃ when the temperate exceed this range. The lens, shield need to be replaced when obviously broken, never use the device when the shield is not completed closed. Safety I class device, need to be earth connected. When the fixture is hanged overhead, the safety rope must be fixed to the bottom of the device to the appropriate fixing point. Always carry the device by the handles, do not take the head or arm directly for transportation. 2.2 Maintenance 2.2.1 Operation only allowed to qualified person, damages due to unprofessional operation or remove of any parts inside will not be considered in warranty service. There are no serviceable parts inside the device or package, service only leaves to authorized dealers. -
Page 5: Troubleshooting
2.2.5. Trouble Shooting Problems Possible reasons Checking or solutions Device not power up Powercon or power cable damaged Change a good power cable to try Faulty power supply Replace new power supply Pan/Tilt error or vibrate Faulty Pan/Tilt PCB Replace PT001 PCB Faulty opto sensor Replace opto sensor OP001 Cable loosen Check the cable connect to OP001 LED off Temperature protection Check the temperature from menu Fan not working Check the fan speed info from menu Faulty LED Replace new LED Dimmer and strobe set at 0 Set dimmer and strobe channel at 255 Faulty power supply Replace new power supply Device not response to DMX Faulty communication IC Replace the IC with back-up one in the display PCB Faulty display PCB Replace new display PCB Wrong DMX addressing Check the address and setting Faulty DMX cable Change to a good DMX cable 2.2.6 Replacement of the fuse Need to replace with same type and rating, which originally installed in the device. Step One: Unplug power cable from main power. Step Two: Unscrew the fuse holder out of the housing with a screwdriver. Step Three: Remove the broken fuse and replace with an exact same type of new fuse. -
Page 6: Control Menu
3.3 How to do mounting installation. Step one: Installation the clamp onto the omega bracket; Step two: Install the clamp and bracket on the bottom of panel, fasten the quick-locks; Step three: Install the whole device onto appropriate truss and fasten the clamps, tight the safety rope with the truss or other fixing point at a suitable position that drop down distance not exceed 20 cm. 4. Control menu 4.1 Meaning of the icon in menu CONNECT LIGHT INFOMATION SET PROGRAM 4.2 Menu tree Default setting shadowed. mark with ①can be basic reloaded, ② be program reloaded, ③can be private reloaded. DMX Address① XXX DMX address setting Wireless① (Wireless Module) Wireless Enabled Artnet① (Only Artnet Module) Artnet Enabled Max Temperature 80~139℃/176~282℉ Lamp off if temperature continuously over for ① 2minutes Lamp Adjust① PAN…… Adjust value of channel Time Info. Current XXXX(Hours) Fixture boot time Fixture Life XXXX(Hours) Fixture total run time... - Page 7 Reset All Reset all Pan&Tilt Reset Pan&Tilt Movment Pan Reverse① ON/OFF Pan Reverse Tilt Reverse① ON/OFF Tilt Reverse Pan Degree① 630/540 Choose Pan Degree Encoders① ON/OFF Encoder wheel on/off Pan/Tilt Mode① Stand/Smooth Choose pan/tilt mode UI Set Mic Sens. ③ 0~99%,60% Sensitivity of Mic No Signal① Close/Hold/Auto/Music Mode when no signal Temperature. C/F① Fahrenheit /Celsius Temperature at ℃/℉ Fans Mode① Auto Speed /High Speed Fans mode Hibernation① OFF, 01M~99M，15M Sleeping mode 02~60m 02m Backlight①...
- Page 8 Play① DMX Receive DMX Receive Slave Receive Slave Receive 1,2,3 Choose slave position Sequence Master / Alone Run Sequence Music Master / Alone Music mode Select Chase② Chase Part 1 Chase 1 ~ 8 Chase 1 Select and run auto Chase Part 2 Chase 1 ~ 8 Chase 2 program Chase Part 3 Chase 1 ~ 8 Chase 3 Edit Chase② Chase 1 Chase Test Test : Step 01 =SCxxx Beginning scene Chase 8 Step 64 Ending scene =SCxxx =xxx Edit Scenes②...
- Page 9 5.1.4 Connection: use DMX cable with 5 pin XLR-plugs to connect the controller with the fixture or one fixture with another. 5.2 DMX chart Channel Min Max name function DMX DMX St Ex Ba1 Ba2 Pan Pan Coarse 255 Pan fine Pan Fine 255 Tilt Tilt Coarse 255 Tilt fine Tilt Fine 255 Movment Speed fastest to Slowest 255 Normal Movment 6 Movement With Backout Function TBD 255 Normal Shutter Functions Pulse-effect Forward Shutter Function Pulse-effect Reverse Random Strobe TBD 255...
- Page 10 Strobe Rate (slow to fast) 223 Open 224 255 Shutter closed No function (shutter open) Strobe effect slow to fast No function (shutter open) 127 4 Shutter Pulse-effect in sequences 128 159 No function (shutter open) 160 191 Random strobe effect slow to fast 192 223 No function (shutter open) 224 255 Dimmer Dimmer(0->100%) 255 On Function CTC Function Forward Spin Virtual Color 9 10 Reverse Spin Function Continuous Color Bounce 111 TBD 112 255 CTC Function Colour Temperature Correction 2000K->2700K...
- Page 11 Red=0, Green->up,Blue=full,White=0 Red=0, Green=full,Blue->down,White=0 Red->up, Green=full,Blue=0,White=0 130 Red=full, Green->down,Blue=0,White=0 131 172 Red=full, Green=0,Blue->up,White=0 173 214 Red->down, Green=0,Blue=full,White=0 215 255 12 13 Red-All Red 0->100% 255 13 14 Green-All Green 0->100% 255 14 15 Blue-All Blue 0->100% 255 15 16 White-All White 0->100% 255 16 17 Zoom Big angle -> small angle 255 No Function 17 18 Foreground Foreground Color 255...
-
Page 12: Unique Features
6. Unique Features 6.1 RDM, stand for “Remote Device Management”, with this function, users can realize remote control of the device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as temperature, power consumption, fan speed. Etc. Every single device has a unique RDM code before left factory to distinguish from each other, usually not suggest users change this code freely. 6.2 Software upgrade function via DMX cable, if there is any new firmware for this device come out, it can be upgraded simply via a software upgrade box, no need to change any mechanical parts. The upgrade box is not included in the package, if need any further assistance pls just contact authorized dealers. 6.3 Hibernation, the device will enter sleeping mode if activated after a period of disconnecting DMX signal to save the power consumption, and will return immediately as soon as the DMX signal is sent again. 6.4 Display back-up communication IC, there is a back-up communication IC installed in the display PCB, so users could replace at once if the working one is broken, no need to wait long time from service. 6.5 Display flip, by press up and down button for more than 3 seconds, the display will flip automatically, this function is useful to read menu conveniently when device is hanged. 7. Dimensions Drawing 8. Technical specification Power supply 100-240 V AC, 50/60 Hz ~ Power consumption 615W LED 7pcs OSRAM 40W 4in1 leds DMX channels 22/51/19/21 modes Beam angle 4° to 36° Luminous flux 7000lumen, 43000lux@3m at 4° Fuse T 3.15 A, 250 V Device dimensions 324x250x456mm...
