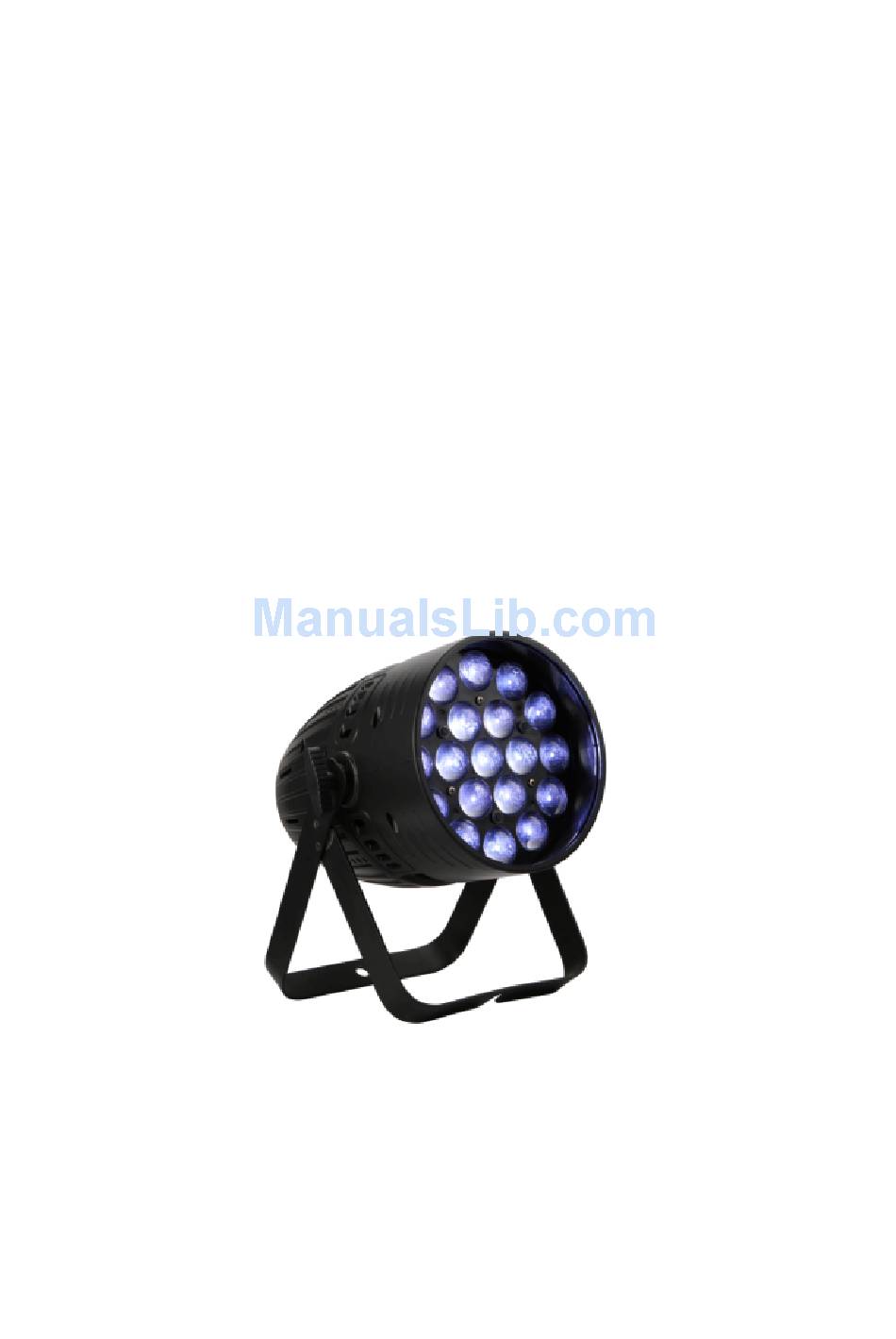

- Page 1 BSL AEGLE MANUAL...
-
Page 2: Safety Precautions
Do not return this unit to your dealer without first contacting. FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING AEGLE. SAVE IT FOR FUTURE REFERENCE. Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain PLEASE consider that damages caused by manual modifications to the device are not subject or moisture. -
Page 3: Dmx 512 Connection
details. Heat -The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. The fixture should be serviced by qualified service personnel when: A. The power-supply cord or the plug has been damaged. B. - Page 4 Operating Modes: You can use this device in 4 ways: Auto Mode - The unit will automatically chase through the different colors and built-in programs. Slave Mode – The unit will run under slave mode. DMX control mode - This function will allow you to control each individual fixtures traits with a standard DMX 512 controller.
- Page 5 0-255 Blue intensity 0-255 White intensity [A.001] Mode ( 7 DMX Channels) CHANNEL VALUE FUNCTION 0-255 Zoom function 5°-60° 0-255 Dimmer No function 4-127 Strobe ( Slow-Fast) 128-131 No function 132-255 Random Strobe ( Slow-Fast) 0-255 Red intensity 0-255 Green intensity 0-255 Blue intensity 0-255...
-
Page 6: Troubleshooting
136-143 Red Fade in/out 144-151 Green Fade in/out 152-159 Blue Fade In/out 160-167 White Fade In/out 168-175 Red+Green Fade in/out 176-183 Red+Blue Fade in/out 184-191 Green+Blue Fade In/out 192-199 Red+White Fade In/out 200-207 Green+White Fade In/out 208-215 Blue+White Fade In/out 216-223 Red+Blue+White Fade In/out 224-231... -
Page 7: Specifications
Specifications Model: Aegle Working Position: Any safe working position Voltage: 90-250V / 50~60Hz Power: 300W LED Lamp: 19 high power 15W LEDs, 4in1(RGBW DMX Channel: 5/7/8 channel mode Zoom angle: 5°-60° Waterproof rate: IP20 Gross Weight: 7 Kgs Carton Package: 2pcs / master box Warranty: 2 Years Note: All information is subject to change without prior notice.
