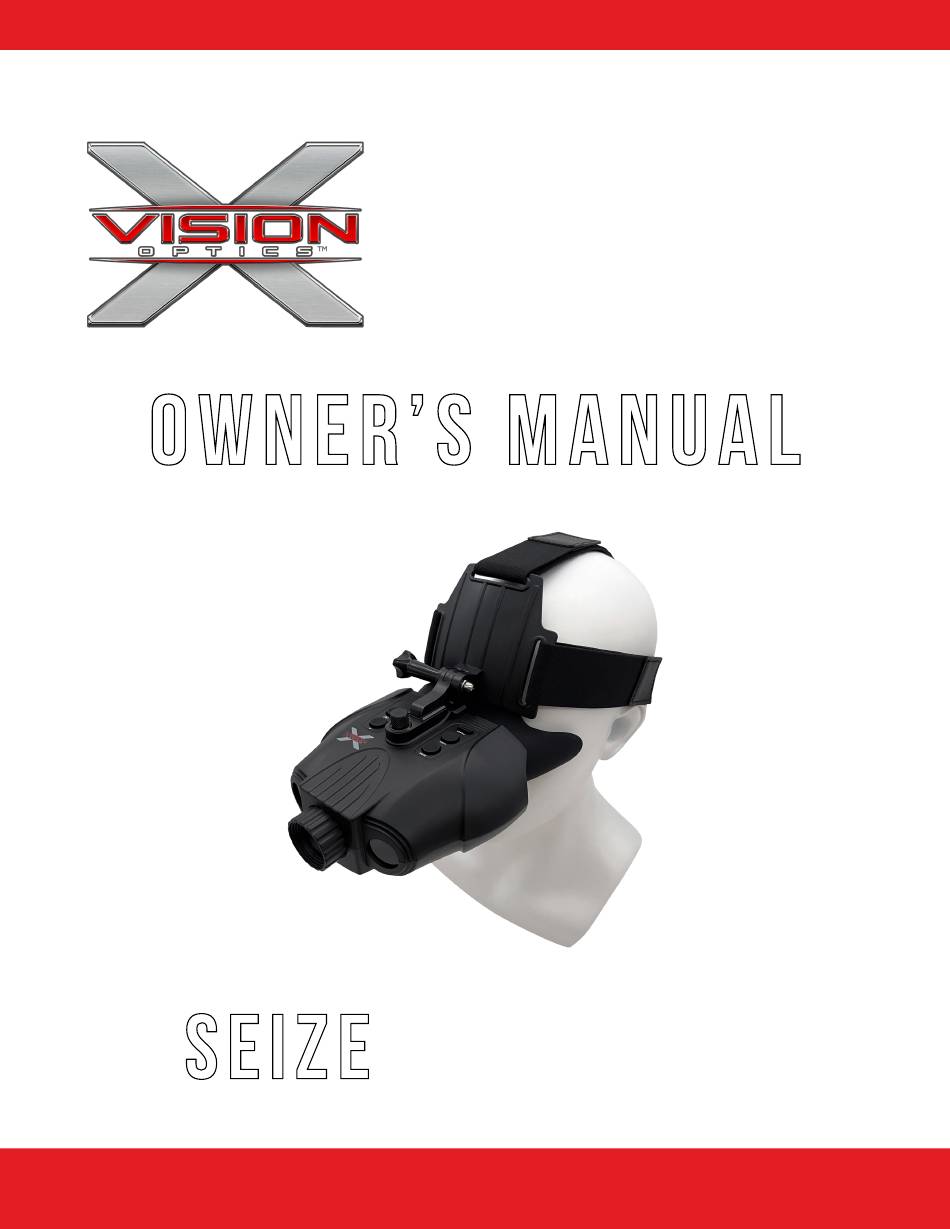

- Page 1 PHantom Series HANDS-FREE NIGHT VISION BINOCULAR XANB50 Owner’s Manual Seize The Night X-VISION OPTICS | 5140 MOUNDVIEW DR. | RED WING, MN 55066...
- Page 2 Table of contents PACKAGE CONTENTS PAGE 1 PRODUCT OVERVIEW PAGE 2 GET STARTED PAGE 5 DISPLAY INFORMATION PAGE 8 MENU NAVIGATION PAGE 9 MENU SETTINGS PAGE 10 HEAD PIECE ASSEMBLY PAGE 11 TROUBLESHOOTING PAGE 12 SPECIFICATIONS PAGE 13...
- Page 3 Package contents Night Vision Binocular (XANB50) Neck Strap Micro USB-C Charging Cable Head Piece Accessories Protective Case...
- Page 4 Product OVerview memory card 1. Power 5. Photo/Video 2. Mode 6. Memory Card/USB Charging 3. Zoom 7. View Area 4. IR 8 Neck-Strap Hook...
- Page 5 Product OVerview Long press to power one and off 1. Power Short press for 3 levels of screen brightness There are 4 modes: Photo/Video/Playback/Menu in a loop. 2. Mode When the power is on, the default mode is Photo. Press Mode to change to the next mode. Under Photo and Video Mode, Press zoom to zoom in at multiple levels: 3X, 4.5X and 6X.
- Page 6 Product OVerview How to Focus Turn Focus Wheel...
- Page 7 gET sTARTED CHARGING THE NIGHT VISION BINOCULAR Charge the Night Vision Binocular Open the USB cover Plug in the use cable to charge. It is suggested to use 5V 1 A plug to charge. The charging time is approximately 3 hours using 5V 1A. Note: Do not turn on the power while charging.
- Page 8 gET sTARTED TURN ON THE BINOCULAR Long press the Power button to turn on the binocular. Once the power is on, look into the LCD screen inside for preview. Adjust the focus by turning the focus wheel at the front bottom. See below arrow for "focus wheel."...
- Page 9 gET sTARTED TAKE A VIDEO Turn on the Binocular. Press Mode to enter video-recording mode. Check the left bottom corner of the screen for the recorder icon. If the recorder icon is not showing, press Mode until the icon shows Adjust the focus by turning the focus wheel.
- Page 10 DISPLAY INFORMATION 00001 2.00 Record Mode: Ready Magnification Level to take pictures IR Sensitivity Battery Level Media Recorded: Number of files Display Brightness (including photos and videos taken)
- Page 11 MENU Navigation Format Card Time Shut Off Date Time Flicker Date/Time Tag Enter To access the menu, press the Mode Button to cycle through Photo Mode, Video Mode, Playback, then Menu. Once the menu is open, press the IR Button to scroll to the next item.
- Page 12 MENU Settings MENU MODE This is to set up parameters for the binocular if you wish to change default settings. Press Mode multiple times until the Menu shows up. Press IR to go down the menu, or Zoom to go up the menu. Press the camera button to enter. Once the desired setting is selected, press the camera button to save it.
- Page 13 HEAD PIECE ASSEMBLY 4. Combine (A) to (D). There are 4 head piece accessories 2. Slide (A) into the top of the bino 5. Screw (C) into the slot. 3. Screw (B) into the slot.
- Page 14 TROUBLESHOOTINg Poor Image: If you wear glasses, please keep them on while using the binocular. During daylight hours, make sure the IR is off. For use during nighttime hours, make sure the IR is on. Adjust the focus by slowly turning the Focus Wheel at the front bottom of the binocular.
- Page 15 SPECIFICATIONS Night Distance: 200 YD Digital Zoom: 3 to 6x Field of View: 60ft @ 100yd Pixel Size: 12 µm Power Supply: Built-in Rechargeable Battery Photo and Video: Objective Lens: 20mm IR Output: 850nm Display Resolution: 320x240 LCD (TFT) Battery Life: 8hr Day/5hr Night IP Rating: IP54...
- Page 16 Contact Us 5140 Moundview Drive Red Wing, MN 55066 USA (833) 993-2383 (US) (651) 385-2276 (Canada) support@xvisionoptics.com Seize The Night XVISIONOPTICS.COM...
