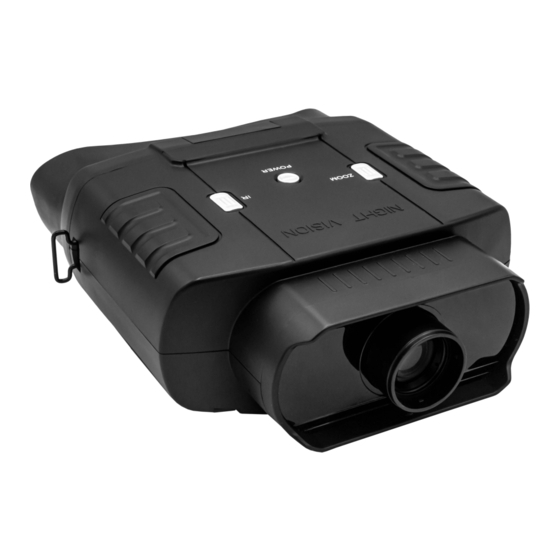

Night vision binocular

Advertisement

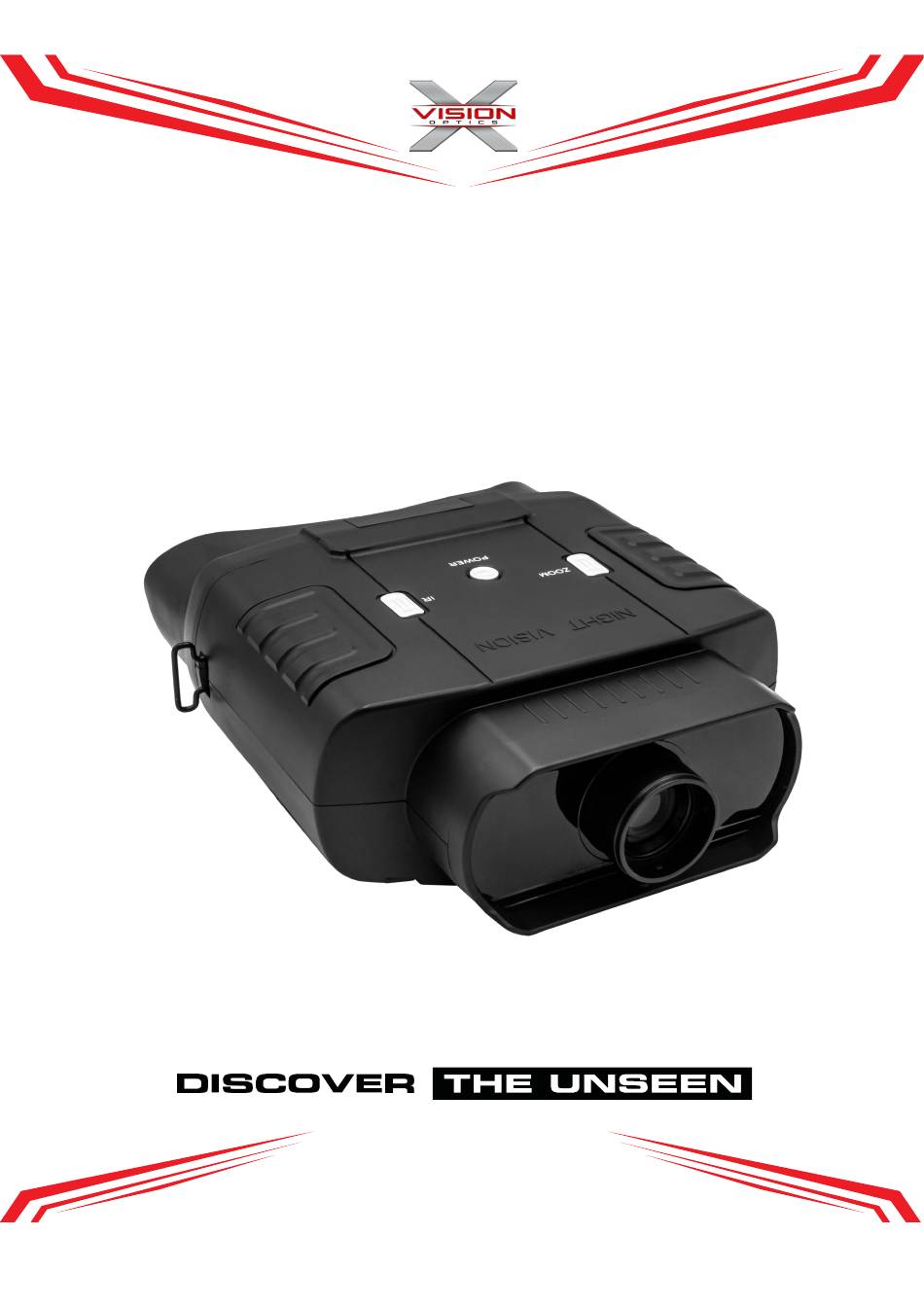

NIGHT VISION BINOCULAR
DELUXE XANB20
USER MANUAL
Edition, 2020-8-21
X-Vision Optics
|
5140 Moundview Dr.
|
Red Wing, MN 55066

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DELUXE XANB20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for X-Vision Optics DELUXE XANB20

  • Page 1 NIGHT VISION BINOCULAR DELUXE XANB20 USER MANUAL Edition, 2020-8-21 X-Vision Optics 5140 Moundview Dr. Red Wing, MN 55066...
  • Page 2 4. Display Information 5. Trouble Shooting 6. Appendix: Specifications 1. Package Contents Binocular Neck Strap X-Vision Optics 5140 Moundview Dr. Red Wing, MN 55066 Third Edition, August 2020. Published by X-Vision Optics, Red Wing, Minnesota © 2020 X-Vision Optics. All rights reserved.
  • Page 3 About the Binocular ③ ② ① ① Power Long press for power on and off. Short press for 3 levels of screen brightness Press IR for 4 levels of brightness ② IR (IR Off-> IR1->IR2->IR3->IR Off...) First time power on, IR is set to IR2.
  • Page 4 ④View area ⑤Strap Hook ⑤ ④ HOW TO FOCUS Turn Focus Wheel (6) ⑥Focus Wheel ⑦Battery Compartment ⑧Tripod Holder ⑥ ⑦ ⑦ ⑧ 2020-8-21 Version...
  • Page 5 3. Quick Start Install batteries  (1) Open the covers. (2) Put in 4 AA Alkaline batteries in each compartment in the directions of + and –. (3) Close the battery compartments. Turn on the Binocular:  Long press the Power button to turn on the binocular. Once the power is on, look into the LCD screen for preview.
  • Page 6 (3) For daytime use, make sure the IR is off. For night use, turn on the IR by pressing the IR button. Increase the brightness by pressing the button repeatedly. It has 4 levels of brightness (0->1->2->3->0…). (4) Long press the Power button to shut down the binocular. (5) If the screen brightness needs to be adjusted, short press the Power button.
  • Page 7 5. Trouble Shooting Binocular Power Off:  If the binocular fails to activate, check for defective, missing or improperly-installed batteries. Replace or install batteries correctly. Please make sure to use fresh Alkaline batteries. Poor Image:  If you wear glasses, please keep them on while using the binocular. ...
  • Page 8 6. Appendix: Specifications Viewfinder EVF mode Aspect ratio Aperture F1.4 with automatic Day and Night time dual mode Visual distance 150 yards at Night, 400 yards at Day Zoom Up to 6X Object lens Focus Manually adjust Visual angle 10° degrees Luminance IR LED / total 1W Power Supply...
