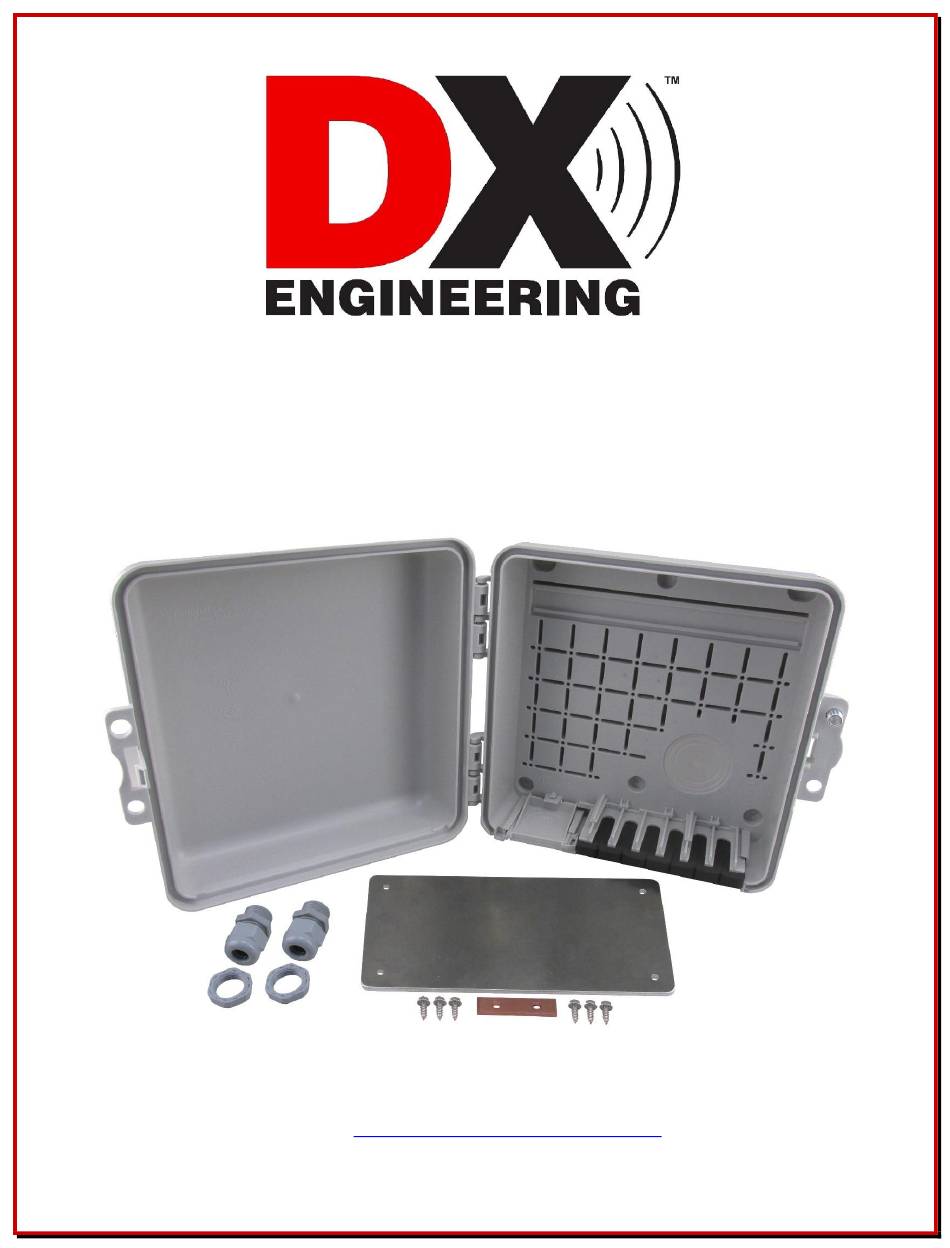

- Page 1 Grounding and Utility Enclosure DXE-UE-1P DXE-UE-1P-INS Rev 0a © DX Engineering 2025 1200 Southeast Ave. - Tallmadge, OH 44278 USA Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200 E-mail: DXEngineering@DXEngineering.com - 1 -...
- Page 2 The DXE-UE-1P is a weather-resistant, high impact thermoplastic enclosure which is ideal for outdoor mounting of all types of lightning protectors or other equipment. Its weather-resistant design protects the inside components against rain and direct water spray. The DXE-UE-1P is a smaller enclosure as compared to the DXE-UE-2P.
- Page 3 The optional copper strap runs through a slot that the user makes in the rear of the case to connect to the user’s Single Point Ground system. Inside view of the DXE-UE-1P shown with optional items installed - 3 -...
- Page 4 Installation The DXE-UE-1P can be mounted on exterior walls covered with wood, aluminum or vinyl siding or in the mortar joints of a brick or block wall. Use the mounting bosses as shown on page 6. If you are mounting to masonry, install masonry anchors in the mortar joints and use user supplied long screws.
- Page 5 This will ensure whatever you mount on the plate will fit. Mount the items to your plate, then mount the plate inside the DXE-UE-1P using the included four #8 x 1/2” screws. When installing the plate, insert and tighten the top 2 screws through the aluminum mounting plate into the horizontal slots on the enclosure first, then install the bottom 2 screws.
- Page 6 Additional Enclosure Views Note: On the left side of the enclosure bottom view and on the lower left of the enclosure rearview, there are marked round spots you can use for PVC conduit entry and exit points. These would be drilled out to fit your PVC conduit. Mounting points for the enclosure are best shown on the rear view.
- Page 7 Outside Dimensions Inch (mm) 9.4” x 9.2” x 4.1” (239.1 x 232.7 x 103.2) Inside Cavity Dimension Inch (mm) 8.3” x 8.1” x 3.9” (211.5 x 205.2 x 99.0) - 7 -...
-
Page 8: Technical Support
All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts, adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
