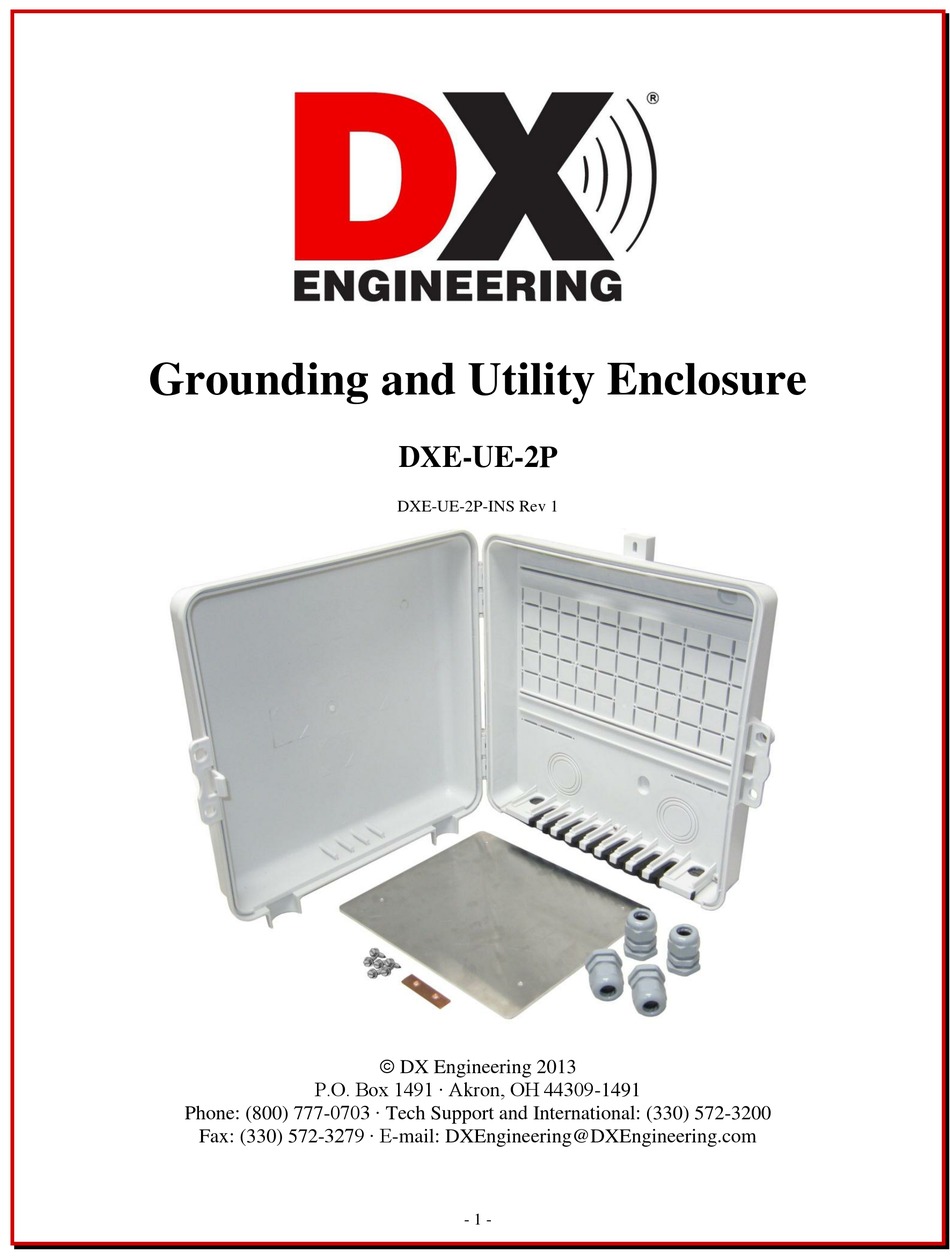

- Page 1 Grounding and Utility Enclosure DXE-UE-2P DXE-UE-2P-INS Rev 1 DX Engineering 2013 P.O. Box 1491 ∙ Akron, OH 44309-1491 Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200 Fax: (330) 572-3279 ∙ E-mail: DXEngineering@DXEngineering.com - 1 -...
- Page 2 Introduction The DXE-UE-2P is a weather-resistant, high impact thermoplastic enclosure which is ideal for outdoor mounting of all types of lightning protectors or other equipment. Its weather-tight design protects the inside components against rain and directed water spray. The thermoplastic housing and wire entrance materials used in the enclosure are fire retardant, UV stabilized and resists degradation from environmental contaminants, chemical fertilizers and insecticide sprays.
- Page 3 Installation The DXE-UE-2P can be mounted on exterior walls covered with wood, aluminum or vinyl siding or in the mortar joints of a brick or block wall. Use the three point mounting bosses as shown in Figure 2. If you are mounting to masonry, install masonry anchors in the mortar joints and use the appropriate screws.
- Page 4 Preparing the Aluminum Mounting Plate Because of the wide variety of applications and configurations, it would be prudent to layout the equipment that will be mounted on the aluminum plate before final mounting of the enclosure. Figure 3 - Example layout: Three PolyPhaser lightning protectors, one DXE-RLP-75FF - Receive Coaxial Protector, and cutting a slot to use 2”...
- Page 5 Figure 1, the included copper mounting bar is made to be used with 2” wide copper strap available from DX Engineering. Drill the appropriate mounting holes (Suggested drill size is #29) in the plate. You can use the included #8 x 1/2” self-tapping screws to hold the clamp and strap to the plate.
- Page 6 DXE-CFT-2P Weatherproof Cable Feed Through at the top. Additional information on grounding and lightning protection can be found on the DX Engineering website under “Lightning Protection”. - 6 -...
-
Page 7: Optional Items
DXE-CFT-1P/2P - Weatherproof Cable Feed Through for use with the Utility Enclosure 6 weather-tight coax feed through couplers for use with the DXE-UE-2P Utility Enclosure and coax types with an outside jacket diameter ranging from .230” to .530”(1P) or .170” to .450” (2P) ... - Page 8 DXE-RCT-BRKT - DX Engineering Right Angle Flange Mounting Brackets DX Engineering Right Angle Flange Mounting Brackets are handy accessories for mounting lightning protectors or other devices to a grounding panel. Specially made for the protectors that are sold only with a stud, these Right Angle brackets convert them to flange mounting to a flat panel.
- Page 9 DXE-P8A - Penetrox A Anti-Oxidant - 8 oz Squeeze Bottle Use Penetrox A electrical joint compound to affect a substantial electrical connection between metal parts such as telescoping aluminum tubing or other antenna pieces. Assures high conductivity at all voltage levels by displacing moisture and preventing corrosion or oxidation.
- Page 10 Tinned Copper Braid Quality tinned copper braid in 5 widths for grounding applications. Preassembled with lugs in selected widths and lengths - for both #10 and 1/4" bolt sizes. Contact Customer Service for special lengths or terminations. Sold per foot to accommodate almost any project.
- Page 11 Stainless Steel V-Clamp w/ground lug, 1/2" to 3/4" pipe - DXE-SSVC-1PG This V-Saddle is made in one size that fits steel tubing, pipe or rod from 1/2 to 3/4'' OD as used in antenna construction. The supplied U-bolt is long enough to attach tubing to thick plates and is made with anti-corrosive properties.
-
Page 12: Technical Support
Warranty All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...
