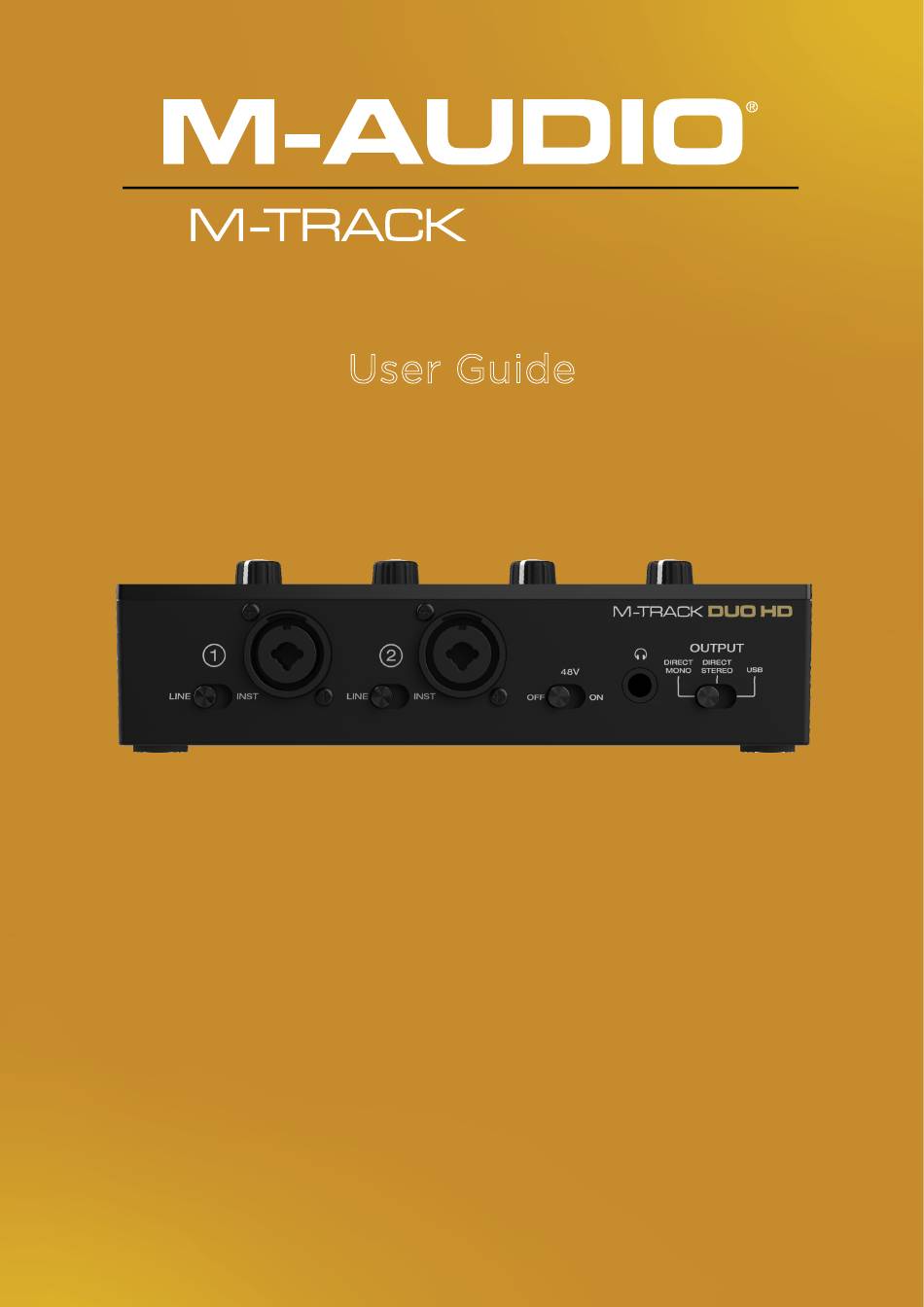

- Page 1 DUO HD User Guide...
-
Page 2: Table Of Contents
TABLE OF CONTENTS (1.0) INTRODUCTION ....................3 (1.1) Box Contents ..........................3 (1.2) Support ............................3 (2.0) SETUP ........................4 (2.1) Quick Start ..........................4 (2.2) Connection Diagram ....................... 5 (3.0) FEATURES ......................6 (3.1) Top Panel ........................... 6 (3.2) Rear Panel ...................... -
Page 3: (1.0) Introduction
M-Track Duo HD USB-C to USB-C Cable Software Download Card Quickstart Guide Safety & Warranty Manual (1.2) Support For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit m-audio.com. For additional product support, visit m-audio.com/support. -
Page 4: (2.0) Setup
The power available from an iOS device is not su cient to power M-Track Duo HD. Use the Apple Camera Connection Kit (sold separately), a USB break-out cable (sold separately), and a USB power adapter (sold separately) which will provide an additional USB connector to power M-Track Duo HD. -
Page 5: (2.2) Connection Diagram
(2.2) Connection Diagram Items not listed under Introduction > Box Contents are sold separately. Monitors Computer Rear Panel Headphones Microphone Guitar Front Panel Note: Use the +48V (Phantom Power) Switch only if a microphone requires phantom power. Most dynamic microphones and ribbon microphones do not require phantom power, but most condenser microphones do. Consult your microphone's documentation to find out whether it needs phantom power. -
Page 6: (3.0) Features
A. USB Port (Type C) This connection will allow you to send audio to and from a computer. Use the included USB-C to USB-C cable to connect the M-Track Duo HD to a computer. B. Main Outputs Use standard 1/4" (6.35 mm) TRS cables to connect these outputs to your powered monitors, amplifier system, etc. -
Page 7: (3.3) Front Panel
(3.3) Front Panel A. Combo Input Connect a microphone, a guitar or bass with an active pickup, or a line-level device to this input. For microphones, use an XLR or 1/4” (6.35 mm) TRS cable. For a guitar or bass with an active pickup, use a standard 1/4”... -
Page 8: (4.0) Appendix
(4.0) APPENDIX (4.1) Technical Specifications All specifications are measured at 20 kHz bandwidth. Specifications are subject to change without notice. Mic Input (balanced XLR) Frequency Response 20 Hz – 20 kHz (+0.1 dB) Signal-to-Noise Ratio 109 dB (A-weighted) THD+N 0.003% (min. gain, 0 dBu out, A-weighted) -128 dBu (max. -
Page 9: (4.2) Trademarks And Licenses
(4.2) Trademarks and Licenses M-Audio is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Macintosh and macOS are trademarks of Apple Inc., registered in the U.S. and other countries. - Page 10 Manual Version 1.1...
