HAWS AG • Bachweg 3 • CH-3401 Burgdorf • Switzerland • www.haws.ch
HAWS Corporation • P.O.Box 2070 • 1455 Kleppe Lane • Sparks,Nevada 89431/USA • www.hawsco.com
Model
7261 Axion
NOTE TO INSTALLER: please leave this information with the maintenance department.

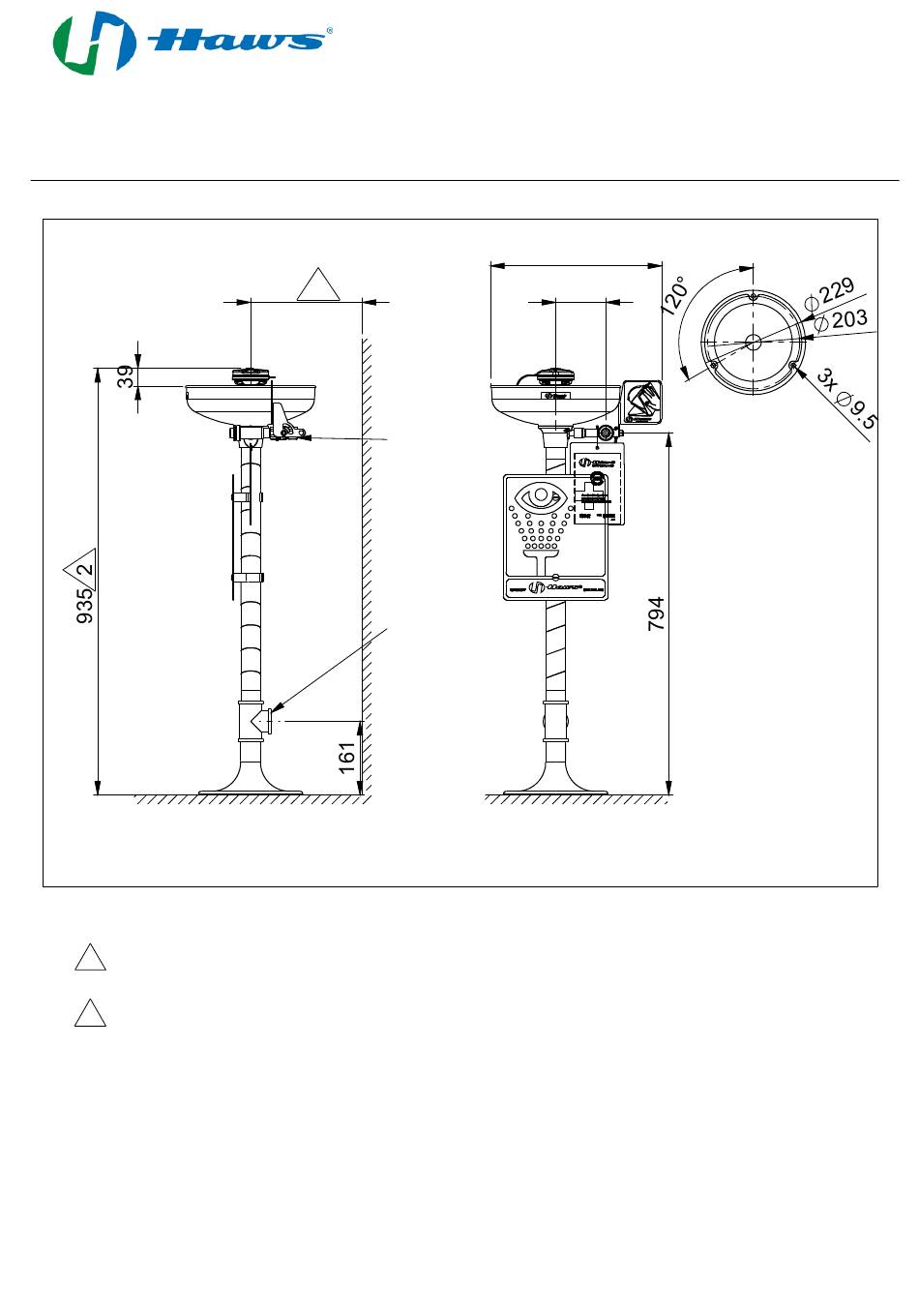

THESE DIMENSIONS MAY VARY +/- 12,7mm (1/2")
SCALE 1:10
Legally-stipulated dimensions:
Ensure that there is a minimum clearance of 150mm (6") with respect to the nearest
1
wall or obstacle.
Height above floor level: 800mm - 1200mm (2' 7 1/2" - 3' 11 1/4").
2
Free access to the eywash station 7261 Axion must be guaranteed all times. The operator
is responsible for the observance of this requirement.
Jeannine Ruf
HAWS DRINKING FAUCET COMPANY
INSTALLATION, OPERATION & MAINTENANCE INSRUCTIONS
Pedestal Eye Wash
244 1
1/2" G
Supply
1 1/4" G
Waste
7261 Axion
375
110
Floor Flange Detail
No.
2080043/4
1/4
30.09.2011
Advertisement
Related Manuals for Haws 7261 Axion
Summary of Contents for Haws 7261 Axion
- Page 1 Height above floor level: 800mm - 1200mm (2' 7 1/2" - 3' 11 1/4"). Free access to the eywash station 7261 Axion must be guaranteed all times. The operator is responsible for the observance of this requirement.
- Page 2 Pedestal Eye Wash 2080043/4 Shower location: The eyewash station 7261 Axion must be installed in the vicinity of potential danger zones. It must be highly visible and easily accessible. Connection conduit: You are recommended to use a 1/2" G conduit, capable of withstanding pressures of 2 - 6 BAR (30 - 90 PSI).
- Page 3 PART NO. 2080043/4 THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR HEREWITH IS NOT TO BE REPRODUCED, USED, OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT ECN NO. SHEET 3 OF 4 SCALE 1:5 THE PERMISSION OF HAWS CORPORATION.
- Page 4 PART NO. 2080043/4 THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR HEREWITH IS NOT TO BE REPRODUCED, USED, OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT ECN NO. SHEET 4 OF 4 SCALE 1:7 THE PERMISSION OF HAWS CORPORATION.
