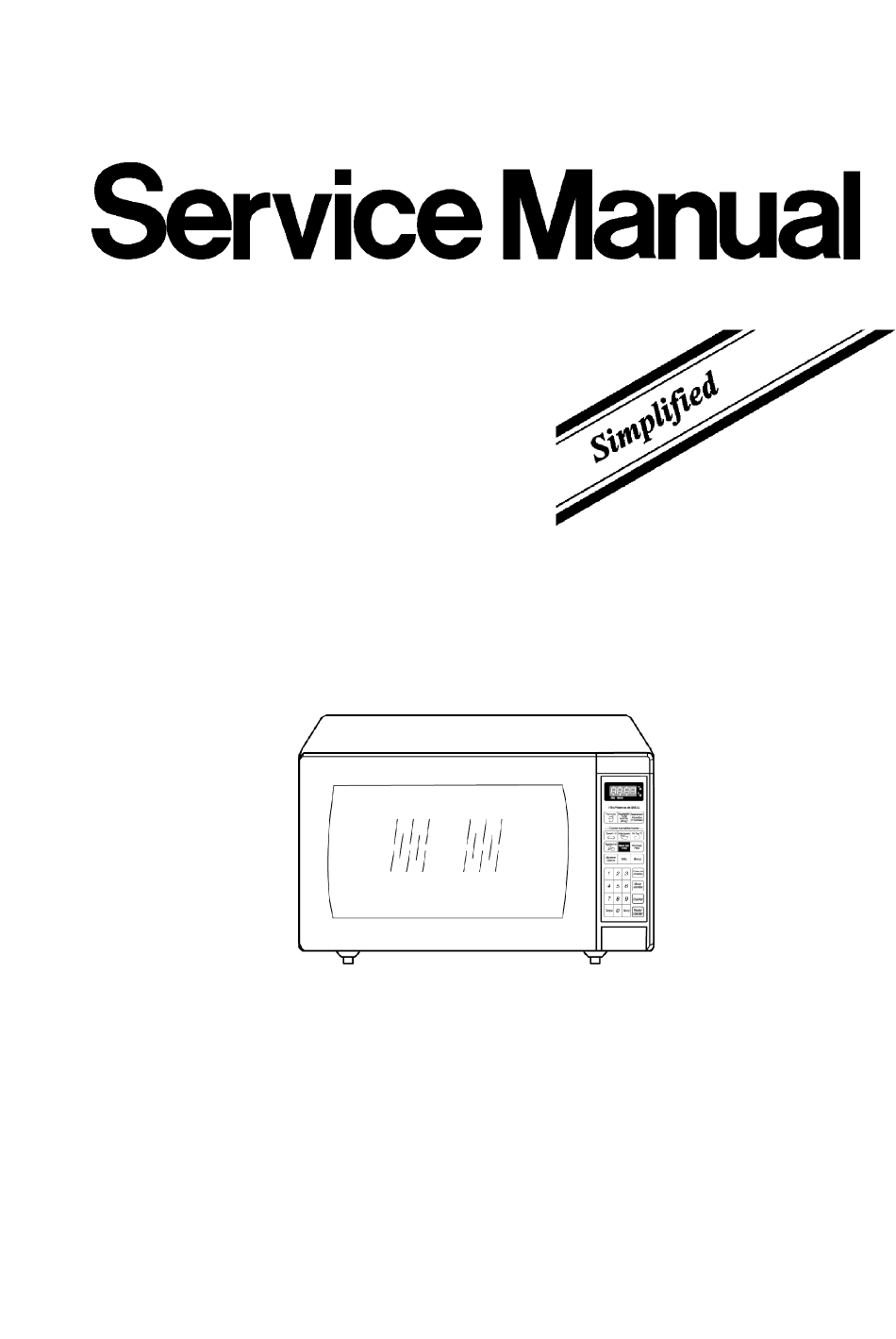

ORDER NO.SIMMC0401006A3
Microwave Oven
NN-T994SF / NN-T994SM / NN-S954WF / NN-S954WM / NN-
S944WM
RPH(Mexico/Latin American)
Please file and use this specified manual together with the service
manual for Model NN-S560BF/WF(ORDER NO. SIMMC0001002C3).
SPECIFICATIONS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NN-T994SF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic NN-T994SF

Summary of Contents for Panasonic NN-T994SF

  • Page 1 ORDER NO.SIMMC0401006A3 Microwave Oven NN-T994SF / NN-T994SM / NN-S954WF / NN-S954WM / NN- S944WM RPH(Mexico/Latin American) Please file and use this specified manual together with the service manual for Model NN-S560BF/WF(ORDER NO. SIMMC0001002C3). SPECIFICATIONS...

  • Page 6: Schematic Diagram

    1. SCHEMATIC DIAGRAM 2. MEASUREMENTS AND ADJUSTMENTS...
  • Page 7 2.1. Adjustment of primary latch switch, secondary latch switch and short switch. 1. Mount the Primary latch switch, the Secondary latch switch and the Short switch to the door hook assembly as shown in ILL. NOTE: No specific individual adjustments during installation of the Primary latch switch, Secondary latch switch or Short switch to the door hook are required.

  • Page 8: Measurement Of Microwave Output

    2.2. Measurement of microwave output The output power of the magnetron can be determined by performing IEC standard test procedures. However,due to the complexity of IEC test procedures, it is recommended to test the magnetron using the simple method outlined below. Necessary Equipment: *1 liter beaker *Glass thermometer / *Wrist watch or stopwatch NOTE:...

  • Page 9: Procedure For Measuring Microwave Energy Leakage

    RATED OUTPUT TEMPERATURE RISE 1200W(IEC705-88) Min. 18.5°F(10.3°C) 1300W(IEC705-88) Min. 19.8°F(11.1°C) 3. PROCEDURE FOR MEASURING MICROWAVE ENERGY LEAKAGE 3.1. Equipment - Electromagnatic radiation monitor - Glass thermometer 212 °F or 100 °C - 600cc glass beaker 3.2. Procedure for measuring radiation leakage Note before measuring.

  • Page 10: Record Keeping And Notification After Measurement

    4. Tap the start pad or set the timer and with the magnetron oscillating, measure the leakage by holding the probe perpendicular to the surface being measured. 3.2.1. Measurement with the outer panel removed. Whenever you replace the magnetron, measure for radiation leakage before the outer panel is installed and after all necessary components are replaced or adjusted.

  • Page 11: Parts List

    4.2. PARTS LIST NOTE: 1. When ordering replacement part(s), please use part number(s) shown in this part list. Do not use description of the part. 2. Important safety notice: Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacture’s specified parts.
  • Page 12 Ref. No. Part No. Part Name & Description Pcs/Set Remarks F00064W70AP CAUTION LABEL T994SF/SM RPH F00069660AP CAUTION LABEL S954WF/WM RPH, S944WM RPH F00076G50HRP NAME PLATE S954WF RPH F00076T10HRP NAME PLATE S954WM RPH F00076T30HRP NAME PLATE S944WM RPH F00334W00AP FUSE LABEL F10016G10AP BASE F10084T00AP...

  • Page 13: Escutcheon Base Assembly

    S954WF/WM RPH F630Y6T30HRP MEMBRANE SWITCH (U) S944WM RPH F80346G40HAP ESCUTCHEON BASE S954WF/WM RPH, S944WM RPH F80726G40HAP DOOR OPENING BUTTON S954WF/WM RPH, S944WM RPH F80375K00AP COOK BUTTON SPRING S954WF/WM RPH, S944WM RPH F82564M60AP DOOR OPENING LEVEL S954WF/WM RPH, S944WM RPH 4.3.2. NN-T994SF/SM...

  • Page 14: Packing And Accessories

    Ref. No. Part No. Part Name & Description Pcs/Set Remarks F603L6G00RP D.P.CIRCUIT (AU) T994SF/SM RPH F82565W00AP DOOR OPENING LEVEL T994SF/SM RPH F00076G00SRP NAME PLATE T994SF RPH F00076T00SRP NAME PLATE T994SM RPH F66164W20AP FLAT CABLE T994SF/SM RPH F603Y5W00CP D.P.CIRCUIT (DU) T994SF/SM RPH F83376G00SRP MEMBRANE SHEET T994SF/SM RPH F800L5W00BAP CONTROL PANEL (AU)

  • Page 15: Door Assembly

    Ref. No. Part No. Part Name & Description Pcs/Set Remarks F00036H70RP INSTRUCTION MANUAL T994SF/SM RPH F00036J40RP INSTRUCTION MANUAL S954WF/WM RPH F00036G60RP INSTRUCTION MANUAL S944WM RPH F01026G00SRP PACKING CASE, PAPER T994SF RPH F01026T00SRP PACKING CASE, PAPER T994SM RPH F01026G50HRP PACKING CASE, PAPER S954WF RPH F01026T10HRP PACKING CASE, PAPER S954WM RPH...

  • Page 16: Wiring Materials

    Ref. No. Part No. Part Name & Description Pcs/Set Remarks F3018-1200 DOOR KEY A F302A5W00SAP DOOR A (U) T994SF/SM RPH F30016G40HAP DOOR A S954WF/WM RPH, S944WM RPH F302K4U00AP DOOR E (U) F30215G10XN DOOR KEY SPRING F30854U00AP DOOR C F31454U00AP DOOR SCREEN A F31465W00SAP DOOR SCREEN B T994SF/SM RPH F31466G40HAP DOOR SCREEN B...

  • Page 17: Digital Programmer Circuit

    Ref. No. Part No. Part Name & Description Pcs/Set Remarks F030A6G30AP LEAD WIRE HARNESS F030E6G30AP H.V.LEAD WIRE 5. DIGITAL PROGRAMMER CIRCUIT 5.1. NN-T994SF/SM...
  • Page 18 5.2. NN-S954WF/WM, S944WM...
  • Page 20 5.3. PARTS LIST...
  • Page 21 Ref. No. Part No. Part Name & Description Pcs/Set Remarks BZ310 AEFBAT2001 BUZZER 2.0KHz C221 AECUU06F103Z CHIP CAPACITOR 0.01 F/50V C222, C486 AECUU06F103Z CHIP CAPACITOR 0.01 F/50V (T994SF/SM RPH) C484 AECUU06F103Z CHIP CAPACITOR 0.01 F/50V (T994SF/SM RPH) C343 AECUU06C101J CHIP CAPACITOR 100PF/50V C12, C340, C440 AECUT06F104Z...
  • Page 22 Ref. No. Part No. Part Name & Description Pcs/Set Remarks R320, R181 AERJ06J220R CHIP RESISTOR , 1/10W, 5% (T994SF/SM RPH) R220, R222, R223 AERJ06J222R CHIP RESISTOR 2.2K, 1/10W, 5% R310 AERJ06J332R CHIP RESISTOR 3.3K, 1/10W, 5% R330 AERJ06J333R CHIP RESISTOR 33K, 1/10W, 5% R487 AERJ06J433R...

  • Page 23: Microwave Oven

    ORDER NO. SIMMC 0001002C1 Service Manual Microwave Oven MODELS Canada NN-S560BF/WF NN-S550BF/WF NN-S540BF/WF NN-L530BF NN-L530WF NN-L520WF NN-S510WF * RPH Model refer to the last page. Specifications for APH : NN-S560BF/WF NN-S550BF/WF NN-S540BF/WF NN-L530BF/WF Model: Specifications: Power Source: * 120V AC Single Phase, 60Hz Power Requirement: 1370W 1370W...

  • Page 24: Table Of Contents

    5. Any serviceman who learns of any accident pertaining to microwave radiation leakage including the oven operating with open door should immediately notify the appropriate address listed below and Center for Devices and Radiological Health, DHHS. IN U.S.A. Panasonic Services Company IN PUERTO RICO (PASC) 50 Meadowland Parkway,...

  • Page 25: Inverter Warning

    DANGER OF HIGH VOLTAGE AND HIGH TEMPERATURE (HOT/LIVE) OF THE INVERTER POWER SUPPLY INVERTER WARNING This Inverter board looks like a regular PCB. However, this PCB drives the magnetron tube with extremely high voltage NEW HV and high current. IT HAS: 1. Very high voltage and high current circuits. It functions the same as the high voltage transformer and high voltage capacitor in ordinary microwave ovens.

  • Page 26: Feature Chart

    FEATURE CHART NN-S560WF NN-S550WF NN-S540WF NN-S510WF MODEL FEATURE NN-S530WF NN-S520WF Three Stage Cooking Inverter Turbo Defrost Auto Reheat Inverter Auto Cook Sensor Reheat Sensor Cook Quick Min Popcorn Timer Digital Clock CONTROL PANEL NN-S560(CPH) NN-S550 NN-S560(APH) a a a a a a a a a a Inverter Auto...
  • Page 27 CONTROL PANEL NN-S540 NN-L530 NN-L520 MN-S510 Display Windows Popcorn Pad Inverter Turbo Defrost Pad (4a) Sensor Reheat Pad (4b) Auto Reheat Pad Power Level Pad Number Pads Timer Pad Clock Pad Sensor Cook Pad (10) Inverter Auto Cooking Pads (11) Quick Min Pad (12) More /Less Pad (13) Cooking Guide (14) Auto Cook Pad...

  • Page 28: Operation And Digital Programmer Circuit Test Procedure

    OPERATION AND DIGITAL PROGRAMMER CIRCUIT TEST PROCEDURE When you pluge the power supply cord into the wall outlet, microwave oven automatically enter into the state of lb / oz. If you want to use g / kg state, please press Start pad after pluging the power source. 1.
  • Page 29 8. Auto Reheat OPERATION SCROLL DISPLAY OPERATION SCROLL DISPLAY 3. Press Serving / Weight pad. (Select 4. 6. 10. 14 slices) 1. Press Auto Reheat pad twice for two servings. 4. Press Start pad. 2. Press Start pad.Auto Reheat 4.10 cycle begins time counts down.

  • Page 30: Schematic Diagrams

    SCHEMATIC DIAGRAM (APH) SCHEMATIC DIAGRAM (APH) - 7 -...

  • Page 31: Schematic Diagram (Cph)

    SCHEMATIC DIAGRAM (CPH) SCHEMATIC DIAGRAM (CPH) - 8 -...

  • Page 32: Description Of Operating Sequence

    DESCRIPTION OF OPERATING SEQUENCE 1. Variable power cooking control Variable Power Cooking The coil of power relay B (RY1) is energized intermittently by the digital ON-OFF TIME OF OUTPUT programmer circuit, when the oven is set at any power selection except POWER RELAY B (RY1) POWER SETTING POWER(%)

  • Page 33: Sensor Cooking

    4. Sensor Cooking (NN-S560BFAPH/CPH NN- AUTO SENSOR COOKING/REHEAT PROCESS S560WFAPH/CPH) Auto sensor cooking is a revolutionary way to cook by microwave without setting a power level or selecting a time. All that is necessary is to select an Auto Sensor Program before starting to cook.

  • Page 34: Cautions To Be Observed When Troubleshooting

    CAUTIONS TO BE OBSERVED WHEN TROUBLESHOOTING Unlike many other appliances, the microwave oven is high-voltage, high WARNING current equipment. Though it is free from danger in ordinary use, extreme Never touch any circuit wiring with your hand nor with an care should be taken during repair.
  • Page 35 6.Confirm after repair (A) After repair or replacement of parts, make sure that the screws of the oven, etc. are neither loose nor missing. Microwaves might leak if screws are not properly tightened. (B) Make sure that all electrical connections are tight before inserting the plug into the wall outlet.

  • Page 36: Disassembly And Parts Replacement Procedure

    DISASSEMBLY AND PARTS REPLACEMENT PROCEDURE 1. Magnetron (A) Discharge the high voltage capacitors, as mentioned and shown on page 11. (B) Remove 1 screw holding air guide c to magnetron. (C) Disconnect 2 high voltage lead wires from magnetron filament terminals. (D) Remove 4 screws holding the magnetron.
  • Page 37 5. Door assembly DOOR (A) Remove door C from door E by carefully pulling outward starting from CCREEN B upper right hand corner using a flat blade screwdriver. DOOR A (B) Separate door E from tabs on door A and remove door A. DOOR (C) Open Door E at the opening angle of approximately 10°...

  • Page 38: Inverter Power Supply (U)

    8. Inverter Power Supply (U) CAUTIONS WHILE REPLACING INVERTER POWER SUPPLY (U) 1. Make sure to leave the grounding plate in its place. 2. Make sure to securely tighten grounding screw from the bottom of chasis (base). 3. Securely connect 3 lead wire connectors. 4.

  • Page 39: Component Test Procedure

    COMPONENT TEST PROCEDURE 5. Inverter Power Supply (U)for USA only CAUTION NEW. H.V. DO NOT try to REPAIR this H.V. Inverter power supply 1. High voltage is present at the high voltage terminal of (U).Replace as whole H.V. Inverter(U) Unit. the High Voltage Inverter (U) including aluminum heat sink during any cook cycle.
  • Page 40 6. Steam Sensor and Digital Programmer Circuit In order to determine if the steam sensor function of the digital programmer circuit is in working order or not, do the following test. 1) Place a water load (150 cc) in the oven. 2) Tap Sensor Reheat pad.

  • Page 41: Measurements And Adjustments

    MEASUREMENTS AND ADJUSTMENTS WARNING * For continued protection against radiation hazard, SWITCH replace only with identical replacement parts(For touch m o d e l s P a r t N o . A N E 6 1 4 2 - 1 4 5 0 , T y p e N o . V-16G-3C26-M for Primary latch switch;...

  • Page 42: Procedure For Measuring Microwave Energy Leakage

    PROCEDURE FOR MEASURING MICROWAVE ENERGY LEAKAGE (B) Should the radiation leakage be more than 2 mW/cm (1mW/cm WARNING for Canada) after determining that all parts are in good Check for radiation leakage after every servicing. Should condition, functioning properly, and genuine replacement parts as listed in this manual have been used, immediately the leakage be more than 2 mW/cm (1mW/cm...

  • Page 43: Troubleshooting Guide

    TROUBLESHOOTING GUIDE CAUTION 1. Check grounding before checking for trouble. 2. Be careful of high voltage circuit. 3. Discharge high voltage capacitor. 4. When checking the continuity of the switches or the high voltage transformer,disconnect one lead wire from these parts and then check continuity with the AC plug removed.
  • Page 44 Oven does not operate and return to plugged in 1. Defective DPC Check tighten screws on escutcheon mode as soon as start pad is pressed. base bracket, D.P.C. board. Loud buzzing noise can be heard. 1. Loose fan and fan motor Turntable motor does not rotate.
  • Page 45 Troubleshooting of Inverter Circuit (U) and Magnetron NEW H.V. This oven is programmed with a self diagnostics failure code system which will help for troubleshooting. H97, H98, and H99 are the provided failure codes to indicate magnetron and inverter circuit problem areas. This section explains failure codes of H97, H98, and H99. First, you must program the DPC by pressing Clock , Time , Start , Power Level .

  • Page 46: Trouble Related To Digital Programmer Circuit

    Trouble Related to Digital Programmer Circuit SYMPTOM STEP CHECK RESULT CAUSE/CORRECTIONS No display when oven is first plugged in. Fuse pattern of DPC Normal STEP 2 Oven is dead. Open (NOTE) Shorted Circuit of ZNR, L.V.T., Oven Lamp etc. Replace DPC Low voltage transformer (LVT) Abnormal 0V ➝...

  • Page 47: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST - 24 -...

  • Page 48: Schematic Diagram & Parts List Of Digital Programmer Circuit

    PARTS LIST NOTE 1: When ordering replacement part(s), please use part number(s) shown in this part list. Do not use description of the part. 2: Important safety notice: Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacture’s specified parts. Pcs/ Ref.No.
  • Page 49 Pcs/ Ref.No. Part No. Part name & Description Remarks AC120V, SINGLE PHASE, 60Hz F400A4T00AP FAN MOTOR F40084T00AP FAN BLADE F40254T00AP AIR GUIDE A F41444T00AP ORIFICE F64505540AP EXHAUST GUIDE B S560*F*PH A707S4T00AP STEAM SENSOR S560*F*PH F65434T00AP SENSOR BRACKET C S560*F*PH F612E9660AP INCANDESCENT LAMP(U) 125V, 60Hz, 20W ANE6142-1450...
  • Page 50 DOOR ASSEMBLY (S-4T0) Pcs/ Ref.No. Part No. Part name & Description Remarks B3018-1480 DOOR KEY ==#A DOOR A F30014T00BAP ****BF*PH F30014T00HAP DOOR A ****WF*PH F302K4T00AP DOOR E (U) DOOR KEY SPRING B30214000AP F30854T00AP DOOR C F31454T00AP DOOR SCREEN A F31464T00BAP DOOR SCBEEN B ****BF*PH DOOR SCREEN B...
  • Page 51 ESCUTHEON BASE ASSEMBLY (S-4T0) Part name & Description Pcs/ Ref.No. Part No. Remarks S560BFAPH/S560WFAPH RTL (W/COMPONENT) F603L4T00AP D.P.CIRCUIT S560BFCPH/S560WFCPH RTL (W/COMPONENT) F603L4T00CP D.P.CIRCUIT S550BFAPH/S550WFAPH RTL (W/COMPONENT) F603L4T10AP D.P.CIRCUIT D.P.CIRCUIT S540BFAPH/S540WFAPH RTL (W/COMPONENT) F603L4T20AP F603L4T20CP D.P.CIRCUIT S540BFCPH/S540WFCPH RTL (W/COMPONENT) L530BF/WFAPH RTL (W/COMPONENT) F603L4T30AP D.P.CIRCUIT L530WF/L520WFCPH...

  • Page 52: Packing And Accesories

    PACKING AND ACCESORIES OVEN WALL TRAY PAD Cut into three parts when packing. FRONT VIEW ROLLER RING(U) Cut into two parts when packing. (S-4T0) Pcs/ Ref.No. Part No. Part name & Description Remarks S560BFAPH/S560WFAPH INSTRUCTION MANUAL F00034T00AP S560BFCPH/S560WFCPH INSTRUCTION MANUAL F00034T00CP S550BFAPH/S550WFAPH INSTRUCTION MANUAL...

  • Page 53: Wiring Material

    WIRING MATERIAL (S-4T0) Pcs/ Ref.No. Part No. Part name & Description Remarks LEAD WIRE HARNESS F030A4T20AP ******APH F030A4T00CP LEAD WIRE HARNESS ******CPH F030E4T00AP H.V. LEAD WIRE ******APH H.V. LEAD WIRE F030E4T00CP ******CPH - 30 -...

  • Page 54: Digital Programmer Circuit

    DIGITAL PROGRAMMER CIRCUIT (NN-S560BFAPH/CPH,S560WFAPH/CPH) PARTS LIST Pcs/ Ref.No. Part No. Part name & Description Remarks BZ310 AEFB22EP20TL BUZZER 2.0KHz C12,C290,C291,C300,C301 AECUB2F104ZK CAPACITOR 0.1µF/25V C330 AECUB5C102KK CAPACITOR 0.1µF/50V C340 AECUB5F103ZK CAPACITOR 0.01µF/50V ECEA1VM471B ELECTROLYTIC CAPACITOR A 470µF/35V ECEA1CKA100B ELECTROLYTIC CAPACITOR A 10µF/16V AEEMXF01505W CONNECTOR...
  • Page 55 DIGITAL PROGRAMMER CIRCUIT (NN-S530BFAPH/CPH,S540BFAPH/CPH,S540WFAPH/CPH,L530BFAPH/CPH, L530WFAPH/CPH,L520WFAPH/CPH,L510WFAPH/CPH) PARTS LIST Pcs/ Ref.No. Part No. Part name & Description Remarks BZ310 AEFB22EP20TL BUZZER 2.0KHz C12,C290,C291,C300,C301 AECUB2F104ZK CAPACITOR 0.1MF/25V C330 AECUB5C102KK CAPACITOR 0.1MF/50V C340 AECUB5F103ZK CAPACITOR 0.01MF/50V ECA1VM471B ELECTROLYTIC CAPACITOR AL 470MF/35V ECEA1CKA100B ELECTROLYTIC CAPACITOR AL 10MF/16V AEEMXF01505W CONNECTOR...
  • Page 56 -33-...
  • Page 57 -34-...
  • Page 58 Model for Latin America & Mexico MODELS Mexico Latin America NN-S540BF/WF NN-540BF/WF * This product is based on NN-S540BF/WF APH model, the different parts are listed as followings: * Any serviceman who has any quiries or order service parts, please contact own area’s service company Pcs/ Ref.No.

This manual is also suitable for:

Nn-t994smNn-s954wfNn-s954wmNn-s944wmNn-s560bfNn-s560wf

Table of Contents
