ProBreeze PB-03-US Manual

FEATURES

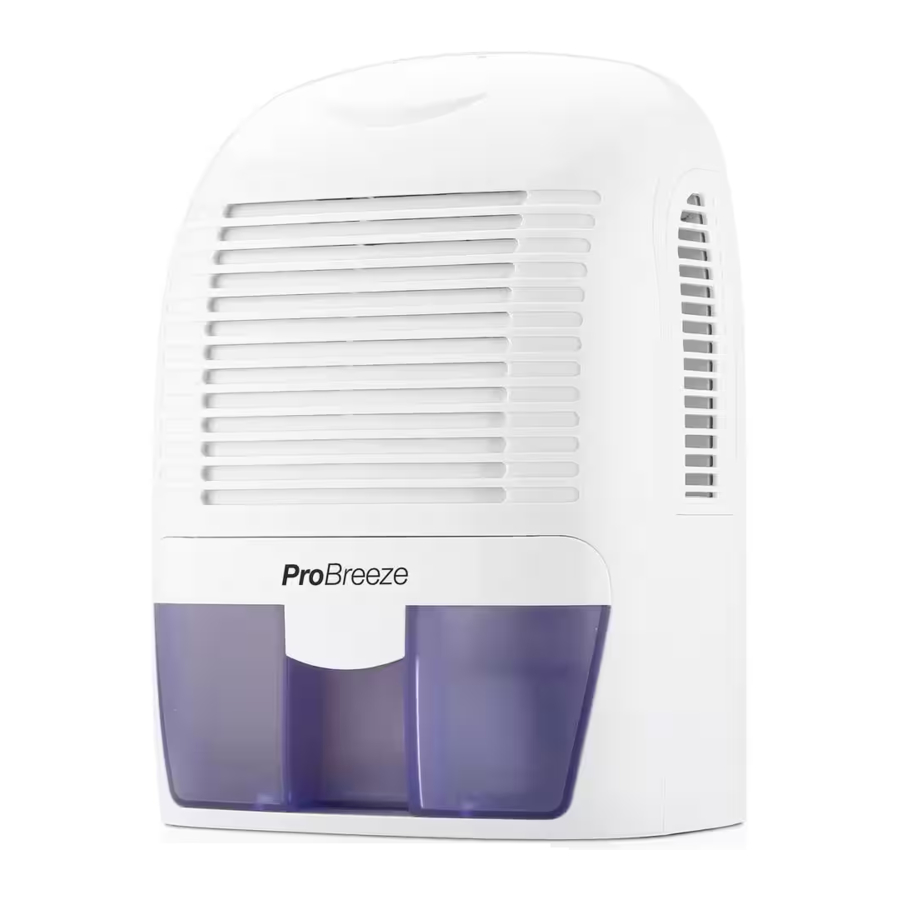

This dehumidifier uses Peltier Technology (no compressor) making it lightweight and quiet. It is perfect for small rooms and poorly ventilated areas such as wardrobes, cabinets and storage rooms that are susceptible to damp odours. Using this dehumidifier will help eliminate unwanted moisture from the air.

SWITCHING ON

  1. Plug the dehumidifier directly into a wall socket.
  2. Switch the dehumidifier ON using the ON/OFF switch. The green LED will illuminate and you should feel a light breeze blowing out of the dry air outlet.
  3. To switch OFF, press the ON/OFF switch again.

REMOVING THE WATER TANK

When the water tank is full, the LED light will turn yellow and the dehumidifier will turn off. To empty the water tank, make sure the dehumidifier is off and gently pull out the water tank. Remove the black plug from the top of the tank. Pour the water out by tilting the tank until it is completely empty. Firmly place the black plug back into the hole. Please do not try to remove the white lid of the water tank. Carefully slot the water tank back into the dehumidifier.
The water tank can hold a maximum of 1500ml (52 fl oz) of water. Your dehumidifier can collect up to 500ml (9 fl oz) of water per day in its ideal environment, which is 30°C (86°F) and 80% relative humidity.

CLEANING & STORAGE


ALWAYS TURN THE APPLIANCE OFF, UNPLUG THE POWER CORD FROM THE ELECTRICAL OUTLET BEFORE HANDLING OR CLEANING IT.

DO NOT ALLOW WATER OR OTHER LIQUIDS TO RUN INTO THE INTERIOR OF THE APPLIANCE, AS THIS COULD CREATE A FIRE AND/OR ELECTRICAL HAZARD.

DO NOT USE ANY ABRASIVE CLEANERS OR SOLVENTS, AS THIS CAN DAMAGE THE APPLIANCE.

  • Do not attempt to clean the appliance in any other way than that detailed by the manufacturer.
  • Clean the exterior surface of the appliance by wiping it with a soft, damp cloth. Dry the appliance with a soft, clean cloth.
  • Always empty the water tank, clean and dry the appliance when not in use to prevent mould.

Cleaning the water tank:

  • Remove and empty the water tank as per the instructions above.
  • Clean the water tank with warm tap water and mild detergent (e.g. washing up liquid).
    Note: Do not use boiling water to clean the water tank.
  • Ensure to remove any scale or deposits that have formed inside the water tank.
  • Wipe all surfaces dry before placing the water tank back into the appliance.

Storage:

  • To store your product, we recommend using the original or a similar-sized box.
  • Store the appliance in a safe, clean and dry place, away from direct sunlight and out of reach of children when not in use.

SPECIFICATIONS

  • Product dimension: 8.66" x 6.29" x 11.81"
  • Net Weight: 4.08 lb
  • Operating Capacity: Approx 500ml (18oz) per day at 30°C (86°F), 80%
  • Cooling Element: Thermo-Electric Peltier Module
  • Fan: Brushless Motor
  • Power: 100-240~
  • Max Tank Capacity: 1500ml/52oz

IMPORTANT INSTRUCTIONS

PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS.
When using electrical appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons, including the following:

TO AVOID THE RISK OF ELECTRICAL SHOCK, FIRE, OR INJURY TO PEOPLE, ALWAYS TURN THE APPLIANCE OFF, UNPLUG THE POWER CORD FROM THE ELECTRICAL OUTLET AND EMPTY THE WATER TANK BEFORE HANDLING, CLEANING OR SERVICING THE APPLIANCE.

  • Read all instructions before using this appliance.
  • Do not cover the appliance whilst in use.
  • Use this appliance only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to person.
  • Always unplug the appliance when not in use.
  • Do not expose the appliance to direct sunlight, heat sources or extreme cold.
  • Keep the appliance out of reach of children and pets.
  • Do not leave children alone or unattended in the area where the appliance is in use.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Cleaning and user maintenance shall not be made by children unless continuously supervised.
  • Dispose of water held by the appliance. This water is not drinkable
  • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • When moving the appliance, ensure it is kept in an upright position.
  • The appliance must have a minimum 50cm clearance around all sides.
  • Never leave the appliance unattended while in use. Always turn the appliance off and disconnected from the power supply when not in use.
  • Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
  • Place the appliance on a flat, stable and dry surface and always keep the appliance in an upright position. Operating the appliance in any other position could cause a hazard.
  • Never place anything on top of the appliance.
  • Ensure that the mains supply (including voltage, frequency and power) complies with the rating label of the appliance.
  • There may be trace of odour during the first few minutes of initial use. This is normal and will quickly disappear.
  • Do not place the appliance against a wall or other appliances.
  • Do not cover the appliance or restrict the air flow of the inlet or exhaust grills whilst in use.
  • Do not cover, obstruct or push objects into the vents and opening of the appliance as this may cause an electric shock, fire or damage the appliance.
  • Do not operate the appliance with wet hands.
  • Do not use this appliance near water or in the immediate surroundings of a bath, shower or a swimming pool. Never place the appliance where it may fall into a bathtub or other water container.
  • Do not allow water or other liquids to run into the interior of the appliance, as this could create a fire and/or electrical hazard.
  • This appliance is intended for indoor household use and similar applications. Do not use outdoors.
  • Do not use the appliance near petrol, paints, flammable gases, ovens, or other heating sources.
  • The mains cable should not hang down from the surface on which the appliance is placed in order to prevent the appliance from being pulled down.
  • To avoid a circuit overload when using this appliance, do not operate another high-wattage appliance on the same electrical circuit.
  • Always plug the appliance directly into a wall socket. Avoid using extension leads where possible as they may overheat and cause a risk of fire.
  • Do not use this appliance with an external programmer, timer switch or any other device which would switch the appliance on automatically unless this has already been pre-built into the appliance by the manufacturer.
  • Do not pull on the power cord. Never move, carry, or hang the appliance by the power cord.
  • Do not kink or wrap the power cord and plug around the appliance, as this may cause the insulation to weaken or split, particularly where it enters the appliance.
  • Do not operate the appliance with the water tank removed.
  • Ensure the mains cable is fully extended before use and arrange it so that it is not in contact with any part of the appliance.
  • Do not operate the appliance with any safety guards removed.
  • Do not operate the appliance if there are signs of damage to the appliance, power cord, or any of the accessories supplied. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
  • Do not attempt to repair or adjust any electrical or mechanical elements in the appliance. Doing so may be unsafe and will void your warranty.
  • The appliance is only to be used with the power adapter provided. Do not use other chargers or power adapters as this may damage the appliance.
  • Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the appliance.
  • Household use only.

SYMBOLS EXPLAINED

For indoor use only.
Please read instruction manual and retain for future use.
