IM Series Ice Machine
Installation and maintenance instructions
This manual contains the following models
IM180, IM210, IM280
Contents
1.Features ...................................................................... 3
2.Size and Appearance ............................................. 3
3.Unpacking .................................................................. 4
4.Installation location .................................................. 4
5.Level Adjustment ....................................................... 4
6. Water supply/Drainage ........................................... 4
6.1 Water Supply ................................................. 4
6.2 Drainage .......................................................... 5
7.Power supply ............................................................. 5
8. Cleaning After Installation ....................................... 5
9. Check After Installation ............................................ 5
10. Operation ................................................................ 6
10.1 Power on/off ............................................... 6
10.2 Ice making .................................................... 6
10.3 Ice Thickness Adjustment ............................ 6
10.4 Forced de-icing ............................................ 6
10.5 Manual cleaning ........................................... 6
10.6 Reserve ice making ..................................... 6
10.7 Set up function ............................................ 6
11.Ice-Making Workflow ............................................. 7
12.Operation Inspection .............................................. 7
13. Routine cleaning ..................................................... 7
13.2.Evaporator cleaning .................................... 8
13.3 Sink cleaning ............................................... 9
13.4 Condenser cleaning .................................... 9
14.Cleaning and Disinfection ..................................... 11
15.Deactivation/overwintering of ice machine ........ 15
16.Maintance ............................................................... 15
17.Circuit diagram ...................................................... 17
18.Explosive view ....................................................... 18
1 / 20
Contents
Advertisement
Table of Contents
Related Manuals for Empura Equipment IM Series
Summary of Contents for Empura Equipment IM Series
-
Page 1: Table Of Contents
Contents Contents IM Series Ice Machine 1.Features ..............3 2.Size and Appearance ..........3 Installation and maintenance instructions 3.Unpacking ..............4 4.Installation location ..........4 5.Level Adjustment ............4 This manual contains the following models 6. Water supply/Drainage ........... 4 IM180, IM210, IM280 6.1 Water Supply .......... -
Page 2: Safety Tips
Safety Tips When you operate and maintain the ice machine, please be sure to pay attention to the safety instructions in the manual. Ignoring these tips may cause personal injury and damage to the ice machine. In this manual, you will see safety prompts in the following form: ！Warning Potential personal injury. -
Page 3: Features

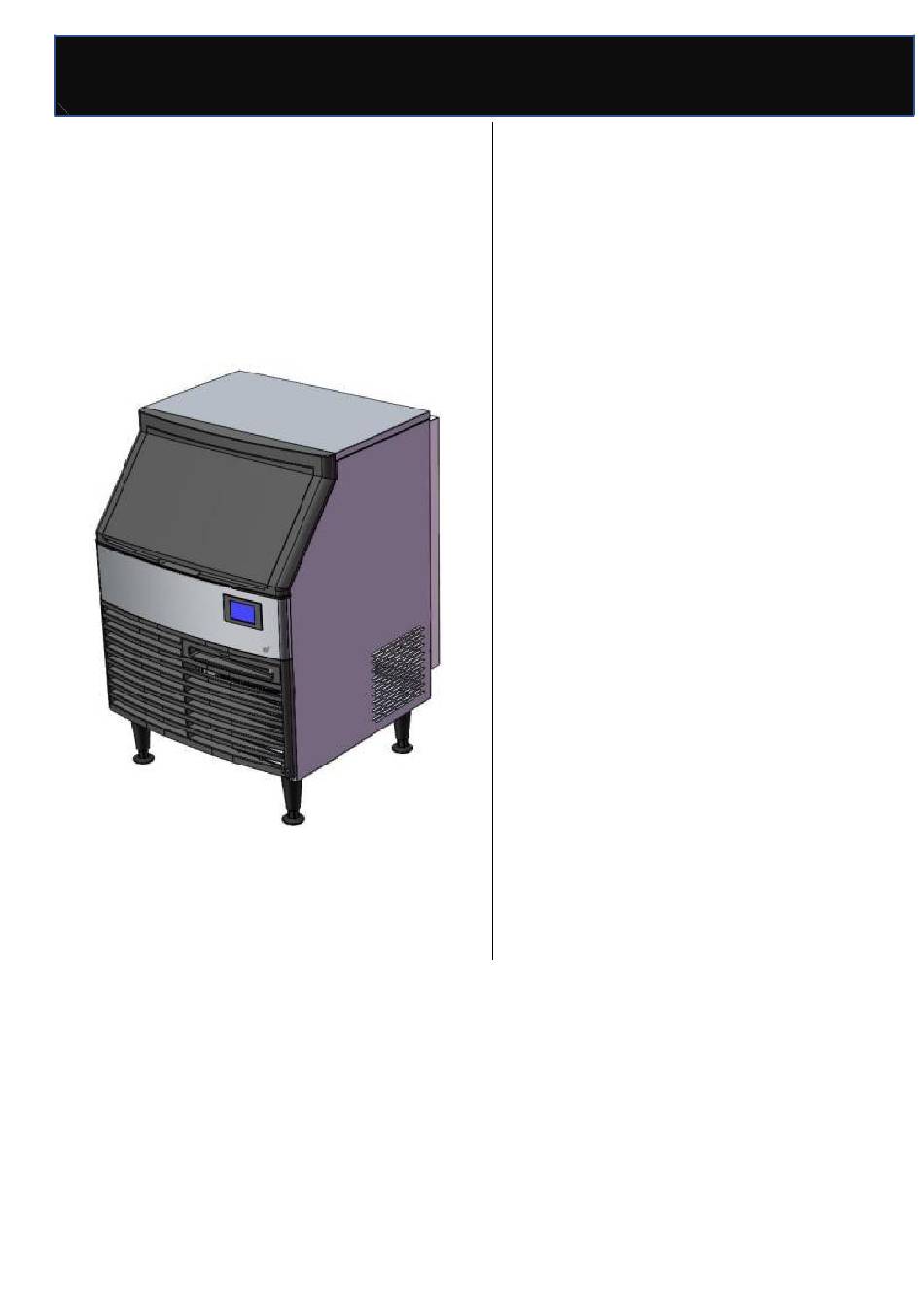

Features Appearance 1. Features IM series ice maker has a number of patented control systems, simple operation and precise control, suitable for different water quality conditions; ； The key components are all internationally renowned brands to ensure reliable work in harsh environments ；... -
Page 4: Unpacking
Unpacking supply pipeline from malfunctioning, when the 3. Unpacking temperature is below zero, please drain the Before unpacking, check whether the water in the ice maker (see "Preparations for anti-tilting signs (if any) are intact, whether the long-term storage of the ice maker")。 outer packaging of the machine is intact, and whether the model of the machine is consistent 5. -
Page 5: Drainage
Water Supply/Drainage If the water pressure exceeds the maximum ！Warning allowable water inlet pressure (1~5bar), please purchase a water pressure regulating The power supply must be grounded ； valve reliably, and the wiring used must comply A manual water supply valve must be ... -
Page 6: Operation
Operation 10. Operation In the ice-making state, press " "or “ "can see the screen" ”count display number 10 . 1 Power on/off Power on：Connect water supply and drainage, start flashing, each press ” "can increase the plug in power plug, press power switch, touch screen ice-making time for 1 minute, each press”... -
Page 7: Set Up Function
Operation 10.7 Set up function 11.4After the ice is taken off, if the ice in the storage refrigerator is not full, it will enter the ice making state Standby state (screen display OFF), long press and start a new cycle. If the refrigerator is full of ice, it "... -
Page 8: Routine Cleaning
Routine cleaning ▲Notice It is strictly forbidden to flush the ice maker with a water jet. Do not use any alcohol-containing liquid to clean or disinfect the ice machine, otherwise it may cause cracks in the plastic parts； Remove the top plate and back plate, but should be disassembled by maintenance personnel with appropriate knowledge；... -
Page 9: Sink Cleaning
Routine cleaning theevaporator; Use a soft material such as a brush or sponge dipped in descaling agent or vinegar to scrub the sink. 13.3 Sink cleaning ” key to be in standby mode, the Press the” screen displays "OFF", unplug the power plug, use a screwdriver to remove the two screws on the water pump box, loosen the three screws on the inner wall of ！Warning... - Page 10 Routine cleaning ★Important After cleaning, please reinstall the top cover and install it correctly.。 Pull the filter on the ventilation window upwards Use a nylon brush to remove dust from the filter; Brush the condenser fins up and down with nylon brushes to remove dust;...
-
Page 11: Cleaning And Disinfection
Cleaning And Disinfection 14.Cleaning and Disinfection ▲Notice Do not mix disinfectant and cleaning solution; Do not use sharp objects to clean the surface of the evaporator; 2．Take out all ice cubes in the refrigerator with an It is recommended to perform this ... - Page 12 Cleaning And Disinfection recommended to soak for more than 10 minutes). cleaning stops and starts to drain. While soaking the parts, use a nylon brush Drainage is completed after 30s; or soft cloth dipped in cleaning fluid to wipe the surface of the parts that are in contact with water and ice, such as evaporator ice trays, ice shields, ice storage buckets, etc.
- Page 13 Cleaning And Disinfection 9. Take out the soaked parts and rinse them with clean water (rinse 5 times). 14.2 Disinfection process 1. Mix 8 warming water (45 ~ 50℃) and 2 packages of disinfectant (KAY5, 28.4/package) into a disinfectant (the amount of disinfectant is adjusted according to the amount of parts that Brush the bottom of the water pump need to be cleaned).
- Page 14 Cleaning And Disinfection Unplug the water pipe 4. Plug in the power plug, and then press the key to put the ice maker in a standby state, the screen displays "OFF"; press the " " button, the ice maker enters the cleaning phase, the water inlet valve opens, and the screen displays Start timing.
-
Page 15: Deactivation/Overwintering Of Ice Machine
Deactivation/Overwintering Of Ice Machine 15. Deactivation/overwintering of ice machine If the ice machine is out of service for a long time or is exposed to an environment of 0°C or Note In an environment below 0°C, if water is left in the machine, it may cause serious damage to the machine parts. -
Page 16: Maintenance
Maintenance Before reporting for repairs, please consider the following aspects in order to quickly determine and improve the efficiency of machine recovery. a) . Whether the water supply is normal, including whether the faucet is open, whether the inlet valve is blocked, and whether the water pressure is too low or too high. -
Page 17: Circuit Diagram
Circuit Diagram 17. Circuit diagram 17 / 20... -
Page 18: Explosive View
Explosive View 18 Explosive view Stuctural Explosive view Figure Figure IM180 IM210 IM280 IM180 IM210 IM280 Serial Seria Top cover plate Wind screen The guard B PP sheets Postnotum Filter net The guard A Ventlight After-poppet Decorative sheet Left-side plate Door frame Adjustable foot Ice pail... - Page 19 Explosive View Explosion diagram of refrigeration system Figure IM180 IM210 IM280 Serial Evaporator Solenoid Valve Compressor Condenser Water system explosion diagram Figure IM180 IM210 IM280 Serial Ice pail Inlet valve Drain-pipe Inlet pipe Intake pipe joint Water pump Water supply pipe Water tank Water pipe 19 / 20...
- Page 20 Explosive View Explosion diagram of electrical control system Figure IM180 IM210 IM280 Serial Compressor Inlet valve Water pump Solenoid Valve Winding Circuit board Dispaly 20 / 20...
