EINHELL TE-DY 18 Li Manual

Layout and items supplied

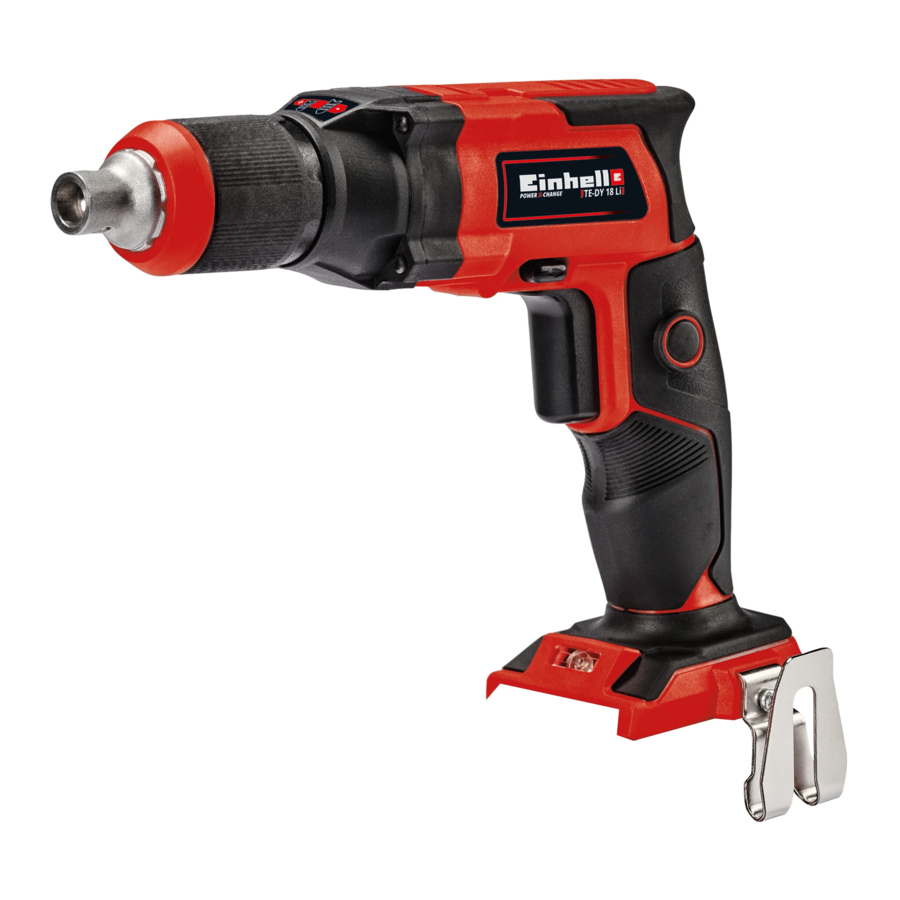

Layout

Layout

  1. Screwing depth stop
  2. Depth setting ring
  3. Changeover switch
  4. On/Off switch
  5. Locking button
  6. Removable holding clip
  7. Battery pack (not supplied)
  8. Pushlock button
  9. LED lamp
  10. Battery charge level indicator
  11. Charger (not supplied)

Items supplied

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

  • Open the packaging and take out the equipment with care.
  • Remove the packaging material and any packaging and/or transportation braces (if available).
  • Check to see if all items are supplied.
  • Inspect the equipment and accessories for transport damage.
  • If possible, please keep the packaging until the end of the guarantee period.


The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

  • Cordless drywall screwdriver
  • Original operating instructions
  • Safety instructions

Proper use

The screwdriver is designed for the screw-fi tting of plasterboard and particleboard panels in drywall construction.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Technical data

Motor power supply: 18 V DC
Idling speed: 0-4000 rpm
Clockwise and counter-clockwise operation: Yes
Bit mount: ¼ " (6.35 mm)
Weight: 1.0 kg

Sound and vibration
Sound and vibration values were measured in accordance with EN 62841.
LpA sound pressure level 73.4 dB(A)
KpA uncertainty 3 dB
LWA sound power level 84.4 dB(A)
KWA uncertainty 3 dB

Wear ear-muffs.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions) determined in accordance with EN 62841.

Screwing without hammer action
Vibration emission value ah = 1.148 m/s2 K uncertainty = 1.5 m/s2
The stated vibration emission levels and stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.
The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.

The vibration and noise emission levels may vary from the level specifi ed during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.

Keep the noise emissions and vibrations to a minimum.

  • Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
  • Have the appliance serviced whenever necessary.
  • Switch the appliance off when it is not in use.
  • Wear protective gloves.


Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

  1. Lung damage if no suitable protective dust mask is used.
  2. Damage to hearing if no suitable ear protection is used.
  3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

Limit the time it takes to fi nish the job.
When considering the total time, all steps in the job cycle need to be taken into account (for example, times in which electric tools are switched off and times in which tools are switched on but not doing any work, i.e. when they are running without a load).

Before starting the equipment

Be sure to read the following information before you start using the cordless impact drill:

  1. Charge the battery pack with the charger supplied.
  2. Only use screwdriver bits that are suited to the task and in perfect condition.
  3. Before you begin screwing into walls and masonry, check for concealed electric wiring, gas pipes and water pipes.

Note:
The screwdriver is equipped with a jaw clutch. The spindle will only start to rotate once the screw is pushed into the workpiece.

Operation

Charging the Li battery pack

Charging the Li battery pack

  1. Remove the battery pack (7) from the handle. To do this, press the pushlock button (8) downward.
  2. Check that your mains voltage matches the voltage shown on the rating plate of the battery charger. Insert the power plug of the charger (11) into the socket outlet. The green LED will start to fl ash.
  3. Push the battery pack onto the battery charger.

Section (Charger indicator) includes a table with explanations of what the LED indicators on the charger mean. If the battery pack fails to charge, please check:

  • whether there is voltage at the power socket, and
  • whether there is good contact at the charging contacts of the charging unit.

If the battery pack still fails to charge, please send

  • the charger and charging adapter
  • and the battery pack to our customer service center.

To ensure that items are properly packaged and delivered when you send them to us, please contact our customer service or the point of sale at which the equipment was purchased.
When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fi res.
To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the performance of the device drops. Never allow the battery pack to become fully discharged. This will cause it to develop a defect.

Changeover switch

(Fig. 4 / item 3)
The slide switch above the On/Off switch is for setting the direction of rotation of the cordless screwdriver and for preventing the cordless screwdriver from being switched on inadvertently. You can select between clockwise and counterclockwise rotation. To avoid causing damage to the gearing, the direction of rotation must only be changed when the equipment is at a standstill. When the slide switch is in the middle position, the On/Off switch is blocked.

On/Off switch

(Fig. 4 / item 4)
Infinitely variable speed control is possible with the On/Off switch. The further you push in the switch, the higher the speed of the cordless screwdriver.

Switching on:
Press the On/Off switch (4).

Continuous operation:
Secure the ON/OFF switch (4) with the locking button (5).

Switching off:
Press the On/Off switch (4) briefl y or release it.

Battery charge level indicator

(Fig. 5 /Item 10)
Press the switch for the battery charge level indicator (a). The battery charge level indicator (10) uses 3 LEDs to show the charge status of the battery.
Battery charge level indicator

All 3 LEDs are lit:
The battery is fully charged.

2 or 1 LED(s) are lit:
The battery has an adequate remaining charge.

1 LED fl ashing:
The battery is empty – you need to recharge the battery.

All LEDs blink:
The battery temperature is too low. Remove the battery from the equipment, keep it at room temperature for one day. If the fault reoccurs, this means that the rechargeable battery has undergone exhaustive discharge and is defective. Remove the battery from the equipment. Never use or charge a defective battery.

LED light

(Fig. 5 / item 9)
The LED light (9) can be used in poor lighting conditions to illuminate the working area. The LED light (9) will come on automatically as soon as you press the On/Off switch (4).

Setting the screwing depth

The depth setting ring (2) off ers latching settings for pre-selecting the depth to which the screw is screwed into the workpiece.
Setting the screwing depth

PLUS direction: Increased screwing depth
MINUS direction: Shorter screwing depth

The best way to establish the required depth setting is to perform a screwing test. Press the tip of the screw fi rmly against the material in question until the screwing depth stop (1) comes up against the workpiece and the coupling disengages.

Changing the tool insert

To change the tool insert, rotate the screwing depth stop (1) with the depth setting ring (2) to the maximum screwing depth and pull off the tool insert to the front (use pliers if necessary).

Screws

It is best to use self-centering screws (e.g. Torx, cross recessed head), as these will enable you to work safely and reliably. Always make sure that the tool insert used is of the same size and shape as the screw.

Removable holding clip

(Fig. 1 / item 6)
When the holding clip (6) is mounted, the device can be attached e.g. to a belt. The removable holding clip can be screwed either to the left or righthand side of the equipment. It is optional – it does not need to be attached if you do not need it.

Cleaning, maintenance and ordering of spare parts


Always pull out the battery pack before starting any cleaning work.

Cleaning

  • Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
  • Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

Maintenance

There are no parts inside the equipment which require additional maintenance.

Ordering spare parts and accessories

Please contact the dealer that near home or contact through company www.zinsano.com
LINE: @zinsano or scan this QR Code

Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30°C. Store the electric tool in its original packaging.
T he reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.
Subject to technical changes.

Charger indicator

Indicator status Explanations and actions
Red LED Green LED
Off Flashing Ready for use
The charger is connected to the mains and is ready for use; there is no battery pack in the charger
On Off Charging
The charger is charging the battery pack in quick charge mode. The charging times are shown directly on the charger.

The actual charging times may vary slightly from the stated charging times depending on the existing battery charge.
Off On The battery is charged and ready for use. (READY TO GO)
The unit then changes over to gentle charging mode until the battery is fully charged.
To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer.
Action:
Take the battery pack out of the charger. Disconnect the charger from the mains supply.
Flashing Off

Adapted charging
The charger is in gentle charging mode.
For safety reasons the charging is performed less quickly and takes more time. The reasons can be:

  • The rechargeable battery has not been used for a very long time.
  • The battery temperature is outside the ideal range.

Action:
Wait for the charging to be completed; you can still continue to charge the battery pack.

Flashing Flashing Fault
Charging is no longer possible. The battery pack is defective.
Action:
Never charge a defective battery pack.
Take the battery pack out of the charger.
On On Temperature fault
The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0°C).
Action:
Remove the battery pack and keep it at room temperature (approx. 20°C) for one day.

Service information

We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Battery
Consumables* Bit inserts
Missing parts

* Not necessarily included in the scope of delivery!
Please register the product warranty of Einhell brand products. Customers must scan the QR Code of the Serial number in the product or QR code on the box, to additional 6 months warranty for the whole battery and battery charger
(Note: Promotion is change without prior notice. Please contact with the company and dealers nearby. home) at https://www.zinsano.com/
Please scan the QR Code of the Serial number in the product or QR code on the box
For ask about how to use the tool, Please scan the QR Code, add Line, add friends to report product problems via LINE.
Ask information, report product, recommend How to use the product and other services Please contact the service center.

Safety



Read the operating instructions to reduce the risk of injury



Wear ear-muff s. The impact of noise can cause damage to hearing.



Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!



Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.


Only store the batteries in a dry room at an ambient temperature between +10°C and +40°C. Only place charged batteries in storage (minimum charge level: 40%).


W hen using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Read all safety warnings, instructions, illustrations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury.
Save all warnings and instructions for future reference.
