INSTALLATION INSTRUCTIONS
Connecting windows
Connecting windows
Artwork cutter
Cloth-based
adhesive tape
●

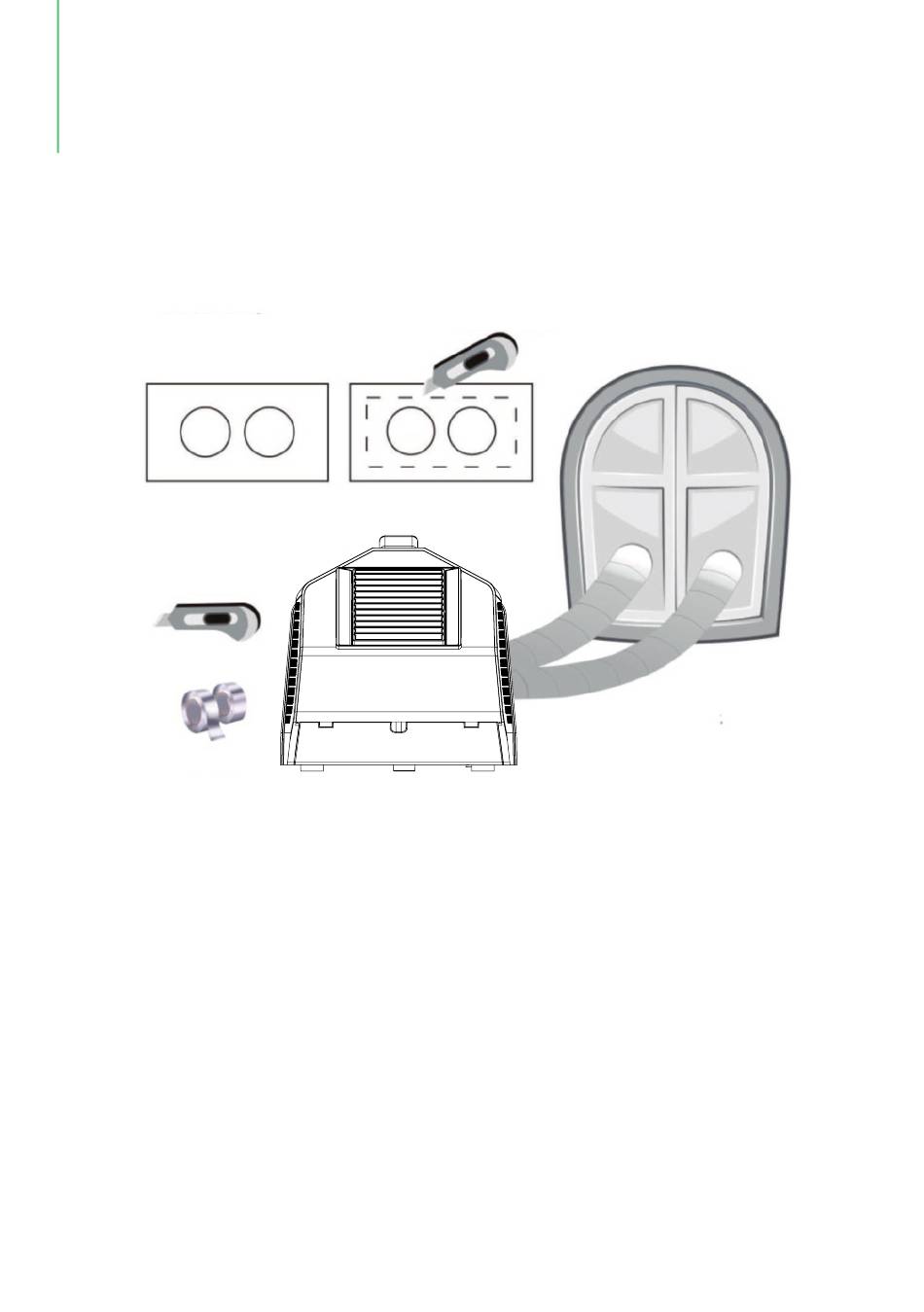

You can use a piece of pearl cotton suitable for the size of the window, cut out two
3.15in diameter round holes with a cutter, the two holes are about 4.72in apart, adjust
the appropriate angle to the window.
●
Adjust the appropriate angle and paste it onto the window. Close the window and insert
the two exhaust pipes of the air conditioner into the two round holes.
Note on the placement of the exhaust pipe:
●
To ensure proper function, do not over extend or bend the hose.
●
Make sure there are no obstructions around the exhaust hose outlet (within 20in) for the
exhaust system to work properly.
●
All illustrations in this manual are for illustration purposes only. Your air conditioner
may be slightly different, based on the actual shape.
Artwork cutter to cut tape
