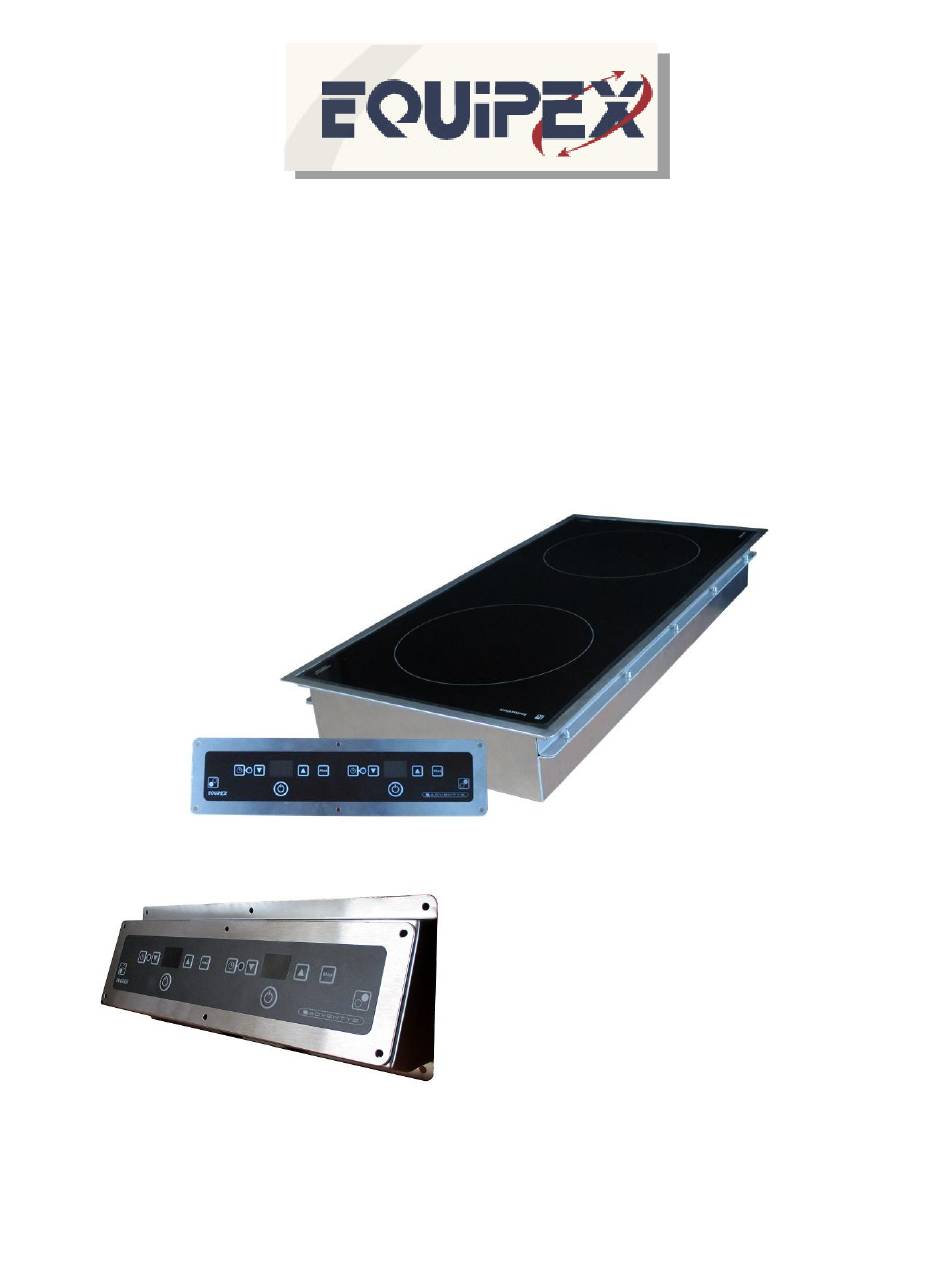

- Page 1 Operation Manual GEOLINE BUILT IN Two Zone (Control panel with optional mounting frame) 100 Niantic Ave; Ste 104 Providence, Rhode Island 02907 U.S.A. Tel: (401) 273-3300 Fax: (401) 273-3328...
-
Page 2: Important Safeguards
2/19/25 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all the instructions before use. 2. The appliance should not be used to store anything. 3. Never use appliance with a cracked glass surface. If the glass surface should crack, disconnect the appliance immediately to avoid the risk of electric shock. - Page 3 19. SAVE THESE INSTRUCTIONS FOR LATER USE! GARANTIES IMPORTANTES Lorsque vous utilisez les appareils électriques, des précautions de base doivent toujours être suivies, y compris les suivants: 1. Lire toutes les instructions avant de l'utiliser. 2. L'appareil ne doit pas être utilisé pour stocker n'importe quoi. 3.
- Page 4 19.CONSERVEZ CES INSTRUCTIONS POUR UNE UTILISATION ULTÉRIEURE INTRODUCTION Models GL2-3500 DI, GL-5000 DI, GL-6000 DI and GL-7000 DI induction hobs are designed to offer fast, high quality cooking. They are constructed of food service quality stainless steel for commercial applications, and tinted tempered (safety) vitroceramic glass.
-
Page 5: Installation
INSTALLATION The Induction cooker needs to be connected to a grounded outlet of proper voltage of 208/240V, single-phase, 50/60Hz. DO NOT place the unit in a damp area or near steam sources, or where heat from other equipment may affect the unit, by raising its internal temperature. - Page 6 Step 3: Sealing the unit to the countertop Remove the unit, turn it upside down and place it on a surface which will protect the glass from being scratched. Place a bead of NSF approved high temperature sealant entirely around the outer edge of the underside of the unit to create the joint.
- Page 7 Step 4: Ventilation To insure proper ventilation, make sure there is 8” between the bottom of the unit and the surface below. A clearance of 2” is recommended on all sides. If necessary, a vent pipe can be added to the unit to bring cooler air directly to the air intake of the induction hob.
- Page 8 Step 5: Filtration...
- Page 10 Insert the drawer with the filter in it. Remove and clean at least once a month: DO NOT USE THE PRODUCT WITHOUT FILTER. Separate Control Panel The control panel will need to be mounted in the same fashion as the base unit.
-
Page 11: Operation
The cutout dimension for the separate control panel is 11-1/8” x 2-5/8”. Maximum distance from the base unit is determined by the length of the included ribbon cable. NSF approved high temperature sealant is still required. Attach the nuts and connect the ribbon cable to the base unit. ASSEMBLY The Induction Hob comes from the factory completely assembled. - Page 12 Touch the On/Off button, marked with the familiar vertical line within a circle symbol, to turn the unit on. The unit will perform a power on self test, and then the display will read 0. The appliance will not heat a pan at this stage. Press and hold the up button until desired power level is reached.
- Page 13 Touch the power button again to turn the unit off. The fan will continue to run for a short time to cool the unit, and then will shut off. COOKWARE Your induction cooker operates using induction ready cookware. There are two methods to test if your cookware is induction ready.
- Page 14 If you have trouble locating a service agency in your area, please consult our website at http://www.equipex.com/, or call us at 1-800-649-7885 and ask for customer service. Entretien et maintenance •...
-
Page 15: Troubleshooting
à l'opération. Si vous n'arrivez pas à trouver un organisme de service dans votre région, veuillez consulter notre site web à http://www.equipex.com/, ou appelez-nous au 1-800-649-7885 et de demander au service à la clientèle. - Page 16 Make sure fan is “F” then “7” appears on The circuit board is operating and unit is the control panel overheating properly ventilated The appliance is not functioning, another code Problem with circuit board Call service center is displayed After turning unit on the Cookware not induction set cook level indicator See cookware section...
- Page 17 LIMITED TWO-YEAR WARRANTY - INDUCTION Your new EQUIPEX product is warranted to the original purchaser for a period of TWO years from the date of shipment by Equipex. All non-mechanical products such as pans are warranted for defects for a period of 90 days from shipment by Equipex.
