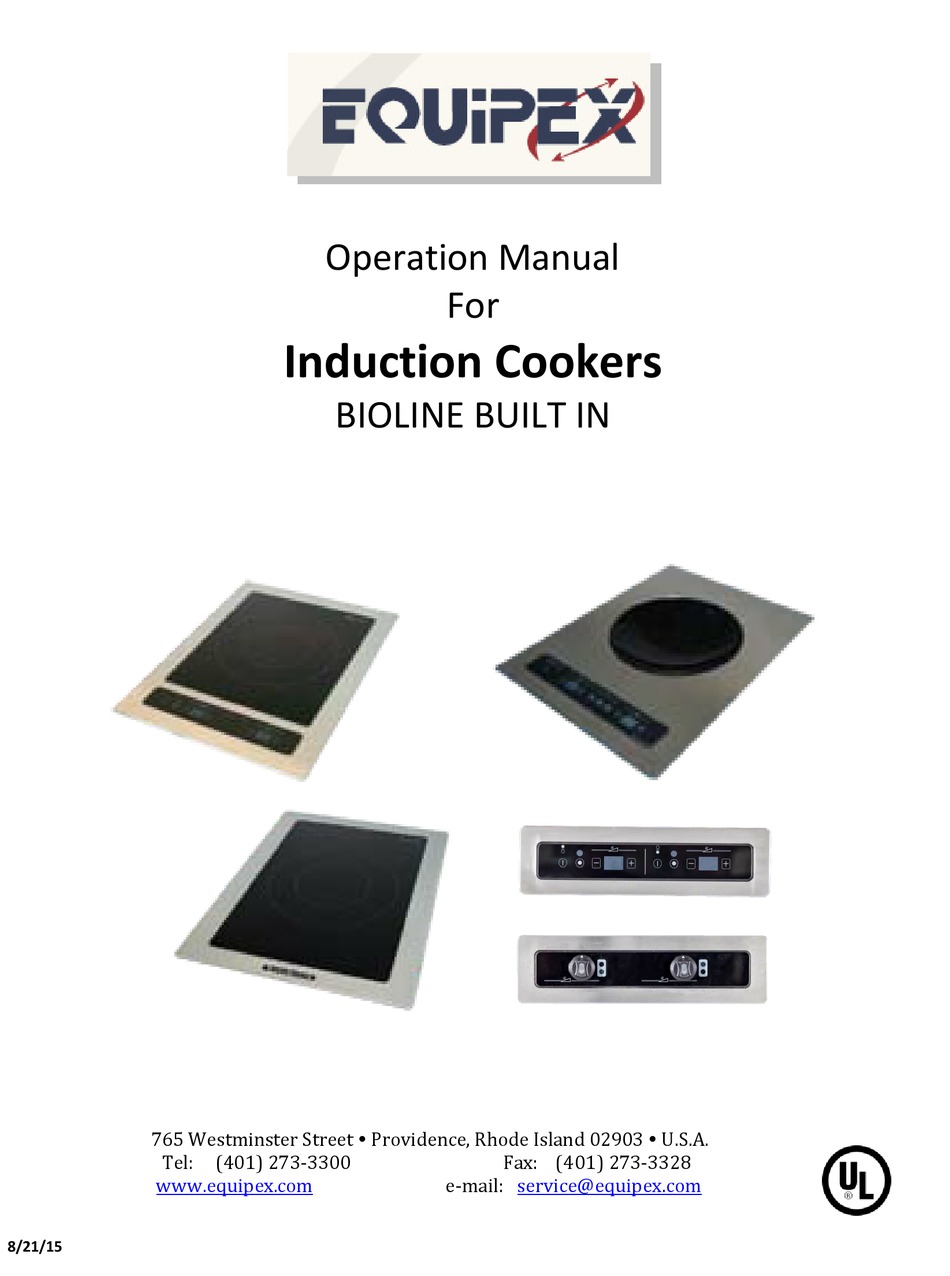

- Page 1 Operation Manual Induction Cookers BIOLINE BUILT IN 765 Westminster Street Providence, Rhode Island 02903 U.S.A. Tel: (401) 273-3300 Fax: (401) 273-3328 www.equipex.com e-mail: service@equipex.com 8/21/15...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all the instructions before use. 2. The appliance should not be used to store anything. 3. Never use appliance with a cracked glass surface. If the glass surface should crack, disconnect the appliance immediately to avoid the risk of electric shock. -
Page 3: Garanties Importantes
GARANTIES IMPORTANTES Lorsque vous utilisez les appareils électriques, des précautions de base doivent toujours être suivies, y compris les suivants: 1. Lire toutes les instructions avant de l'utiliser. 2. L'appareil ne doit pas être utilisé pour stocker n'importe quoi. 3. Ne jamais utiliser appareil avec un fissuré surface en verre. Si la surface de verre devrait crack, débrancher l'appareil immédiatement afin d'éviter le risque de choc électrique. -
Page 4: Installation
Display indicators allow for precise control of the temperature/power and timer settings. Specifications: Model Electrical Plug Configuration DRIC-2500 208/240V, 50/60 Hz, 1 PH, 2.5KW, 10.5/12A NEMA-6-20P DRIC-3000 208/240V, 50/60 Hz, 1 PH, 3KW, 12.5/14.5A NEMA-6-20P DRIC-3600 208/240V, 50/60 Hz, 1 PH, 3.6KW, 15/17.5A... - Page 5 La cuisson par induction doit être connecté à une prise de terre de tension correcte de 208/240V, monophasé, 50/60 Hz. NE placez PAS l'appareil dans un endroit humide ou à proximité de vapeur sources, ou où la chaleur provenant d'autres appareils peut avoir une incidence sur l'unité, en augmentant sa température interne.
- Page 6 Step 2: Insert the unit Carefully place the unit into the opening to check fit. If any adjustments to the opening size are necessary, make them before proceeding to the next step.
- Page 7 Step 3: Sealing the unit to the countertop Remove the unit, turn it upside down and place it on a surface which will protect the glass from being scratched. Place a bead of NSF approved high temperature sealant entirely around the outer edge of the underside of the unit to create the joint.
- Page 8 Step 4: Mounting Mounting Hardware included. Hardware placement, four locations.
- Page 9 Place the mounting bracket over the screw as shown. Thread the nut over the screw and hand tighten. Do this for all four locations, and then tighten firmly being careful not to over tighten.
- Page 10 Step 5: Ventilation To insure proper ventilation, make sure there is 13 cm (5”) between the bottom of the unit and the surface below. If necessary, a vent pipe can be added to the unit to bring cooler air directly to the air intake of the induction cooker.
- Page 11 Step 6: Filtration Insert the drawer with the two filters in it. Remove and clean at least once a month: DO NOT USE THE PRODUCT WITHOUT FILTERS.
- Page 12 Optional: Separate Control Panel If using the optional separate control panel, it will need to be mounted in the same fashion as the base unit. The panel can be mounted horizontally in the countertop, or vertically in the face of the counter if the countertop supports this method.
-
Page 13: Operation
The cutout dimension for the separate control panel is 370 mm (14- 9/16”) x 72 mm (2-7/8”). Maximum distance from the base unit is determined by the length of the included ribbon cable. Mounting is slightly different, as six 6 mm (15/64”) holes will need to be drilled for the mounting bolts to pass through the countertop. - Page 14 For all modles except the separate remote with knob(s) only, Touch the On/Off button, marked with the familiar vertical line within a circle symbol, to turn the unit on. The unit will perform a power on self-test, and then the display will read 0. The appliance will not heat a pan at this stage.
- Page 15 In addition, your Equipex Induction Cooker has a handy feature, which allows you to test the quality of the pan, as detailed below. Cookware with a thick flat base is more desirable, as it will heat better.
- Page 16 You should inspect all parts on a regular basis to ensure that all is in proper working order. If a part is damaged, have the unit repaired by the manufacturer prior to returning the unit to operation. If you need any further assistance, please consult our website at http://www.equipex.com/, or call us at 1-800-649-7885 and ask for customer service.
- Page 17 Si une pièce est endommagée, faire réparer l'appareil par un service agréé agence avant de renvoyer l'unité à l'opération. Si vous n'arrivez pas à trouver un organisme service dans votre région, veuillez consulter notre site à http://www.equipex.com/, ou appelez-nous au 1-800-649-7885 et de demander au service à la clientèle.
-
Page 18: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSES ACTION A light blinks when Normal operation Nothing switching on No power when turning No power at outlet or Correct problem and test unit on outlet wiring bad again Fan runs for a few The unit is cooling down; minutes after the Nothing normal operation... -
Page 19: Limited Warranty
In many cases, the unit or parts requiring service may be replaced with a new or rebuilt unit/part at the discretion of Equipex. Equipex will pay for the freight both ways on the unit/part requiring service and the replacement unit/part. Customer is responsible for packing the unit/part being returned in the packaging sent by Equipex, affixing shipping labels and noting appropriate RMA designation on the exterior of the box. - Page 20 WARRANTIES, EXPRESSED OR IMPLIED, FOR MERCHANT ABILITY AND FOR FITNESS TOWARD A PARTICULAR PURPOSE AND CONSTITUTES THE ONLY WARRANTY MADE BY EQUIPEX, LLC. IT NEITHER ASSUMES, NOR AUTHORIZES ANY PERSON TO ASSUME FOR US, ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THE SUBJECT EQUIPMENT.
