HART HAC07 Quick Start Manual

For use with HART HLAUG01A and HGAUG01 Hole Augers.
NOTE: These instructions supplement the Assembling the Hole Auger
instructions in your operator's manual.
WARNING:
This insert sheet is not a substitute for reading the
operator's manual. To reduce the risk of injury or death,
user must read and understand operator's manual before
using this product.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always remove the battery pack from the
product when assembling parts.
WARNING:
Always close battery cover when using the auger in snow,
ice, or wet conditions. Do not allow snow, ice, or rain on
the auger housing or battery pack. Wipe the auger clean
with a dry cloth occasionally. If the cover begins to leak,
replace the cover before using the auger.
 The ice blade is extremely sharp. Use extreme caution when
drilling a hole or replacing the blade. Install the blade guard
after each use. Always store with blade guard attached.
 Wear non-slip, heavy-duty protective gloves. Wear non-skid,
protective footwear that will protect your feet and improve
your footing on slippery surfaces.
 Dress properly. Do not wear loose clothing or jewelry. Keep
your body, hair, drawstrings, scarves, hats, gloves, and loose
clothing away from moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
 Do not operate any power tool under the influence of alcohol
or drugs.
 This product translates considerable rotational forces to the
operator. Make sure your feet are firmly planted. Hold both
handles firmly while operating the auger.
 Do not leave the auger unattended outdoors. Store indoors
while not in use.
 When drilling ice, do not push down on the auger. If the auger
begins to drill slowly the bit may need to be sharpened or
replaced.
 KEEP THE POWERHEAD AND BATTERY DRY AT ALL TIMES.
After the ice bit breaks through the surface, water may
overflow through the hole. To minimize water splash, slow
the speed before the drill breaks through the ice surface, then
raise the tool slowly.
 Do not expose the auger powerhead or battery to water.
 Always keep the blade guard on the auger except when in
use. Use caution when removing or installing the blade guard.
The cutting blades are very sharp.
 Never use a hose, water, or any liquids to clean or rinse off the
auger powerhead. Corrosive liquids, water, and chemicals can
enter the auger powerhead and/or battery pack and damage
the electronic components, which can result in a short circuit,
increased risk of fire, and serious personal injury.
SYMBOLS
Some of the following symbols may be used on this prod-
uct. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the
product better and safer.
SYMBOL NAME
Slippery
Surface
Wet
Conditions
Alert
HAC07
8 in. Ice Auger Bit
EXPLANATION
Exercise caution to
slipping or falling.
Risk of fire and burns. Do not
expose battery, battery com-
partment, or electronic compo-
nents to rain, water, or liquids.
Close cover during use. Do not
operate on wet ground.

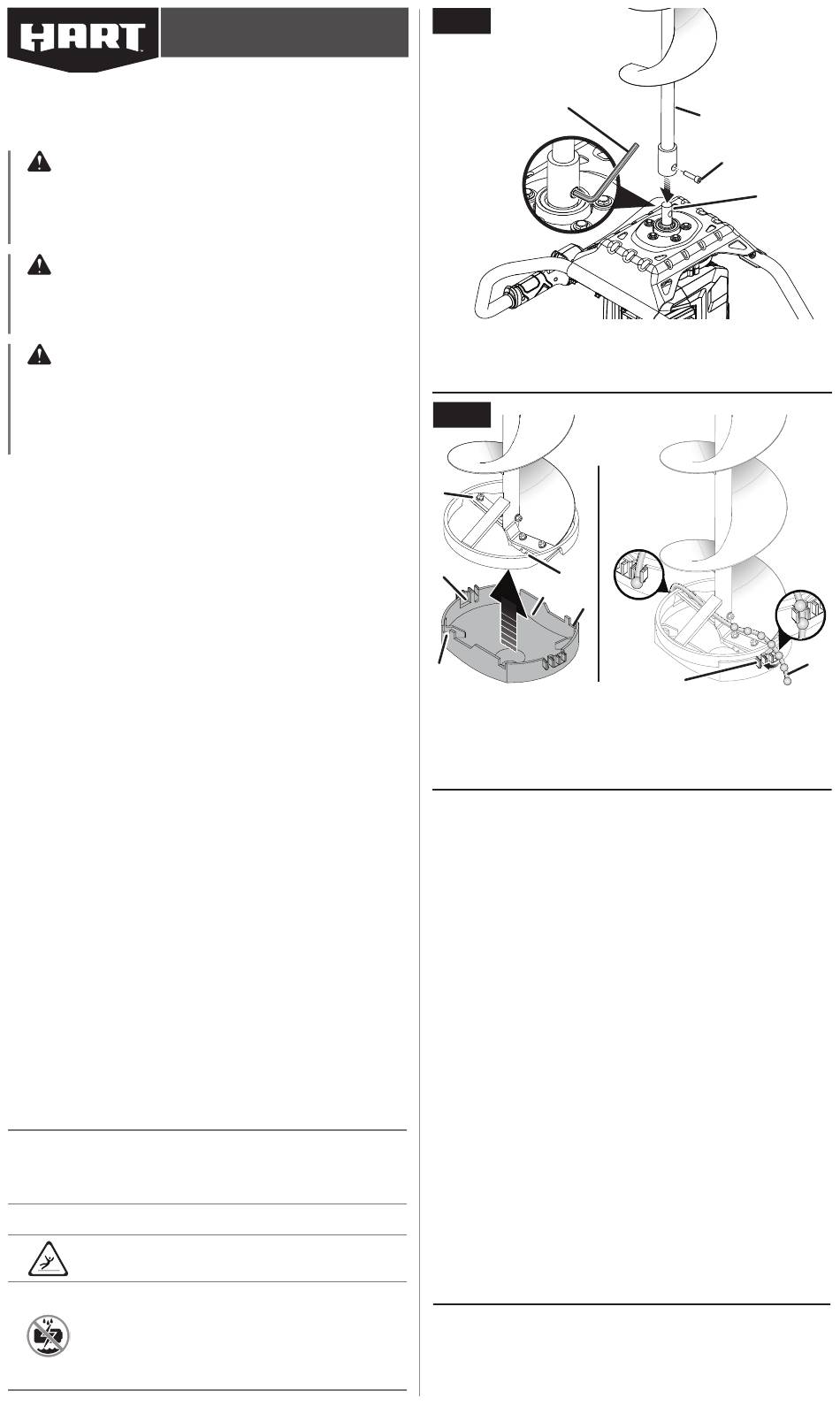

FIG. 1
A - Screw (vis, tornillo)
B - Auger bit (mèche à bois, broca de berbiquí)
C - Hex key (clé hexagonale, llave hexagonal)
D - Drive shaft (arbre moteur, eje de impulsión)
FIG. 2
A
B
C
A - Blades (lames, hojas)
B - Blade Cover (fourreau de lame, cubierta de la hoja)
C - Notches (loquets, muescas)
D - Cover (couvercle, cubierta)
E - Rubber lanyard (cordon en caoutchouc, cordón de goma)
F - Channels
ASSEMBLING THE HOLE AUGER
See Figure 1.
 Stand the auger bit upright with tip pointing up.
 Remove the screw from the auger bit.
 Install the drive shaft into the auger bit.
 Align the holes on the auger bit and drive shaft.
 Insert the screw and tighten with included hex key.
Please consult your operator's manual for further information or
contact HART Customer Service at 1-800-776-5191.
ATTACHING THE BLADE COVER
See Figure 2.
 Align the blades with the recessed pockets inside the blade
cover.
 Insert the notches on the cover onto the blade guard.
 Rotate cover slightly to the left to tighten in place.
 Insert one end of the rubber lanyard into the channels on the
blade cover.
 Secure rubber lanyard across the top of the blade guard.
 Insert the other end of the rubber lanyard into the channels
on the opposite side of the blade cover to secure.
avoid
Hart Consumer Products, Inc.
P.O. Box 1348, Anderson, SC 29622
C
A
D
C
F
www.HARTtools.com / 1.800.776.5191
B
A
D
E
998000919
7-8-22 (REV:02)
