HART HHPJS1 Quick Start Manual

WARNING:
To reduce the risk of injury, do not attempt to use this product until you
have read thoroughly and understand completely this operator's manual
and the operator's manual for any power tools used. Always wear eye
protection with side shields marked to comply with ANSI Z87.1. Ensure
compatibility and fit before using this accessory. Do not use this acces-
sory if a part is damaged or missing.
WARNING:
Clamp the workpiece and the jig securely so that they will not move dur-
ing operation. Do not use your hands to hold the jig and/ or workpiece.
Improperly securing the jig or the workpiece could cause an accident
resulting in possible serious injury.

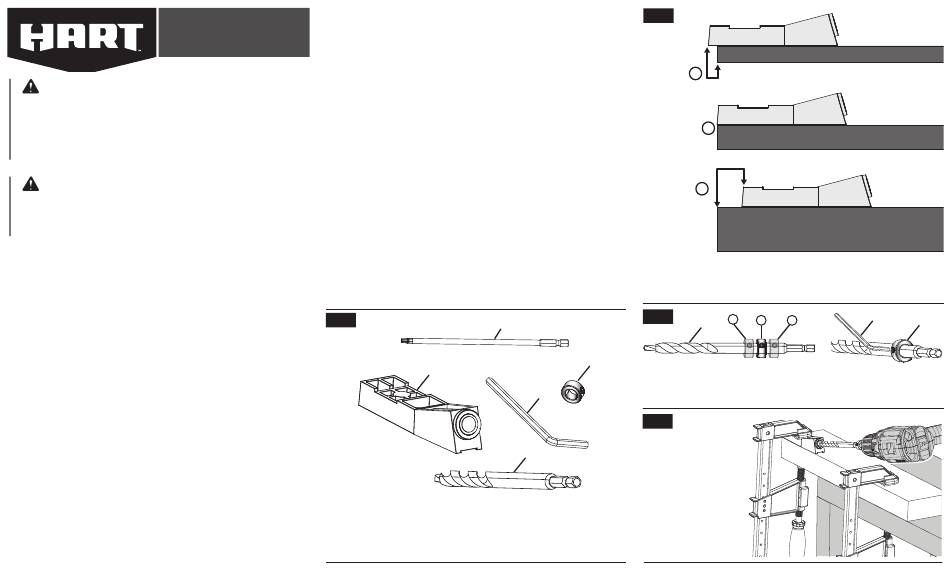

PACKING LIST
See Figure 1.
Pocket Hole Jig, Drill Bit, Driving Bit, Hex Key and Collet
DRILLING POCKET HOLES
See Figures 2 - 4.
This product is designed to help you quickly and accurately drill pocket
holes in workpieces that are no greater than 1-1/2 in. thick.
 Place the jig near the edge of the workpiece and position it according
to the thickness of the material. For 1/2 in. workpieces, the jig should
have a 1/4 in. overhang. For 3/4 in. workpieces, the jig should be flush
with the edge. For 1-1/2 in. workpieces, the jig should be 1-1/4 in. away
from the edge. If the workpiece is a different size, use scrap material to
determine the required positioning.
 Secure the jig to the workpiece using clamps. Do not use your hands to
hold the jig and/ or workpiece.
 Clamp the workpiece to a stable surface so that the workpiece will not
move during operation. Do not use your hands to hold the jig and/ or
workpiece.
 Place the collet onto the drill bit and position it according to the thickness
of the material. For 1/2 in. workpieces, the collet should be in position 1.
For 3/4 in. workpieces, the collet should be in position 2. For 1-1/2 in.
workpieces, the collet should be in position 3. If the workpiece is a dif-
ferent size, use scrap material to determine the required positioning.
 Using the hex key provided, tighten and secure the collet to the bit.
998000780
8-23-21 (REV:01)
 Install the bit into a drill or impact driver (not included).
HHPJS1
 Set your drill or impact driver to a low speed setting and ensure that it
is set to rotate forward.
Pocket Hole Jig
NOTE: If the speed is too high, the jig and/ or workpiece could be dam-
aged or broken.
NOTE: If you are using a hammer drill, ensure that the tool is in "drill
mode". Using the tool in "hammer mode" could damage the jig and/or
the workpiece.
 Place the tip of the bit inside the jig and depress the switch trigger to
start the drill.
 Move the bit inside the jig and into the workpiece, applying only enough
pressure to keep the bit cutting. Do not force the drill. Let the tool do
the work.
 Stop drilling when the collet bottoms out on the jig.
 Repeat this process to drill additional pocket holes.
To make a pocket joint:
 Place the workpiece with the pocket holes against a second workpiece.
 Install screws with the driving bit to make a pocket joint. The size of the
screw required to make the joint will vary based on the thickness of the
material. For 1/2 in. workpieces, use 1 in. screws. For 3/4 in. workpieces,
use 1-1/4 in. screws. For 1-1/2 in. workpieces, use 2-1/2 in. screws.
FIG. 1
A - Driving bit (embout de vissage, punta para atornillar)
B - Collet (collet, portabroca)
C - Hex key (clé hexagonale, llave hexagonal)
D - Pocket hole jig (gabarit de trou à angle, plantilla de orificios bolsillo)
E - Drill bit (foret, broca)
www.HARTtools.com / 1.800.776.5191
Hart Consumer Products, Inc.
P.O. Box 1348, Anderson, SC 29622
A
D
C
E
FIG. 2
1/2 in. workpiece (piece de 13 mm, pieza de trabajo de 13 mm)
A
B
(piece de 19 mm, pieza de trabajo de 19 mm)
C
(piece de 38 mm, pieza de trabajo de 38 mm)
A - 1/4 in. overhang [excédent de 6,4 mm (1/4 po), sobresalir de 6,4 mm (1/4 pulg.)
B - Flush with the edge (près du bord, cerca del borde)
C - 1-1/4 in. away from the edge [31,8 mm (1 1/4 po) du bord, 31,8 mm (1 1/4 po) del
borde]
FIG. 3
1
2
C
B
A - Collet (collet, portabroca)
B - Hex key (clé hexagonale, llave hexagonal)
C - Drill bit (foret, broca)
FIG. 4
A - Driving bit (embout
de vissage, punta para
atornillar)
B - Pocket hole jig (gabarit de
trou à angle, plantilla de
orificios bolsillo)
3/4 in. workpiece
1-1/2 in. workpiece
B
3
A
