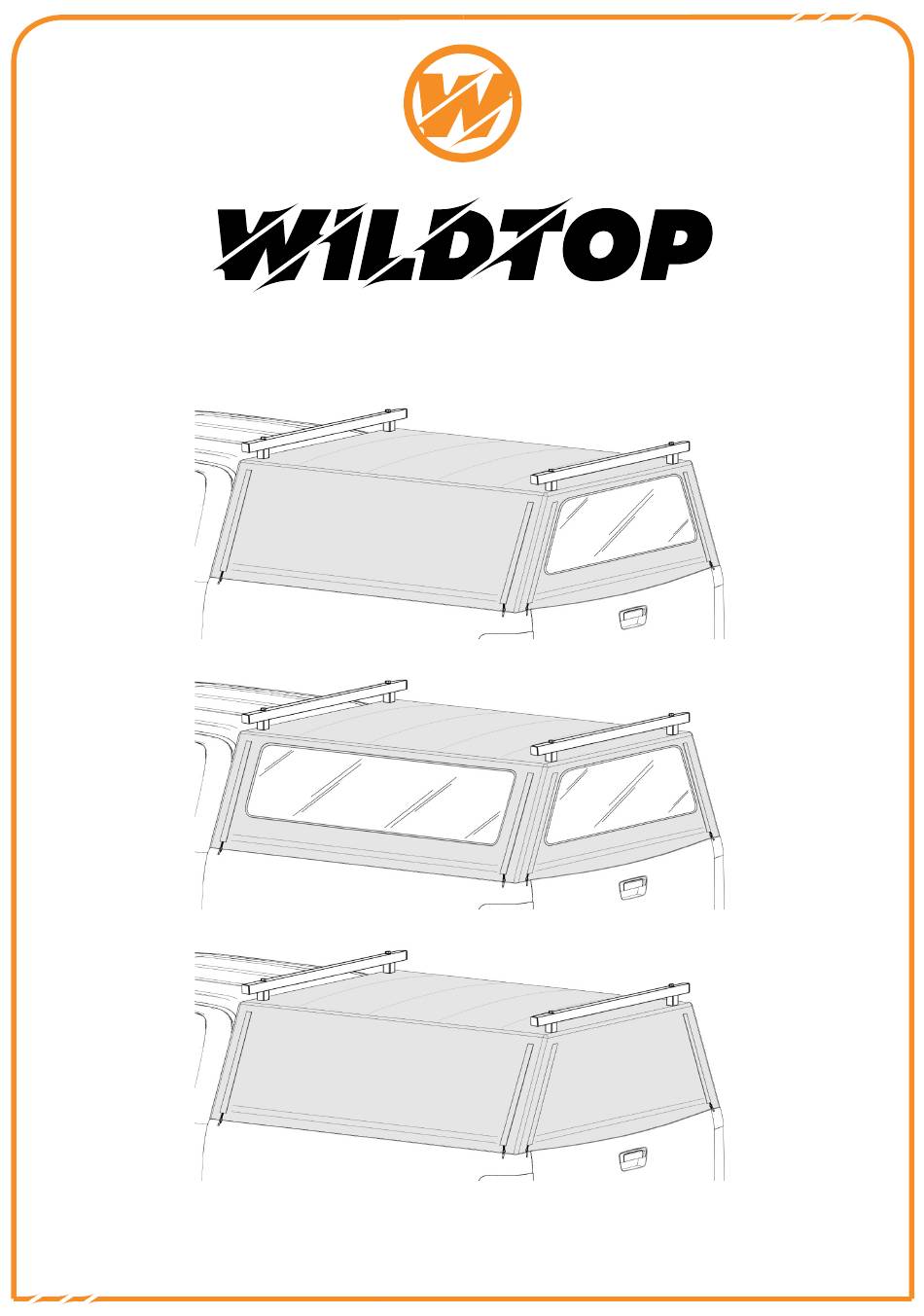

- Page 1 TRUCK CAPS INSTALLATION GUIDE 1 of 10...
- Page 2 PART NO: WT11749 PART DESCRIPTION: Toyota Tacoma, 2024-Current 60.3in Bed, Wildtop Truck Cap PARTS IN THE BOX HARDWARE IN THE BOX Note: Some supplied hardware in the kit may not be needed. Self Paint Square Rubber Surface Bolt Washer Hex Head...
- Page 3 OVERVIEW Check the orientation of VERY IMPORTANT! these corner connectors. All press studs face inwards These holes remain unused at this stage, for the Ladder Rack to be installed in a later step. 17mm A x12 B x12 C x12 17mm A x8 B x8...
- Page 4 OVERVIEW All press studs face inwards 17mm A x8 B x8 C x8 4 of 10...
- Page 5 OVERVIEW Drill Phillips Tape Drill F x8 Drill Bit Marker Measure 5 of 10...
- Page 6 OVERVIEW 13mm D x8 E x8 Ensure the canopy frame assembly sits aligned with edge of the beds front plastic trim as shown below. VEHICLE CABIN J x8 13mm D x8 E x16 L x8 6 of 10...
- Page 7 Refer to next page on how to attach front of cap to front edge of truck bed. �Ensure the canvas roof's seam lines match the frame's top edges, especially the front and back edges, since the roof is cut to the same length as the frame.
- Page 8 HOW TO ATTACH THE FRONT OF CAP TO TRUCK BED Clean any dust or dirt from top front edges of truck bed with clean cloth and then wipe down with surface cleaning wipe. Let the surface dry. Then apply Velcro strips with even firm pressure.
-
Page 9: Maintenance & Care Instructions
MAINTENANCE & CARE INSTRUCTIONS Thank you for choosing a Wildtop truck cap for your vehicle! Our caps are built to last, providing you with the durability and functionality you need. However, to ensure the longevity of your truck cap, it is crucial that you follow these maintenance and care instructions carefully. - Page 10 Send us a photo of your WildTop! Happy with how your truck top turned out? Please send us a photo to: info@wild-top.com IMPORTANT INFORMATION Safety � Ensure the truck cap is completely closed before driving. � Regularly check the tightness of the fasteners.
