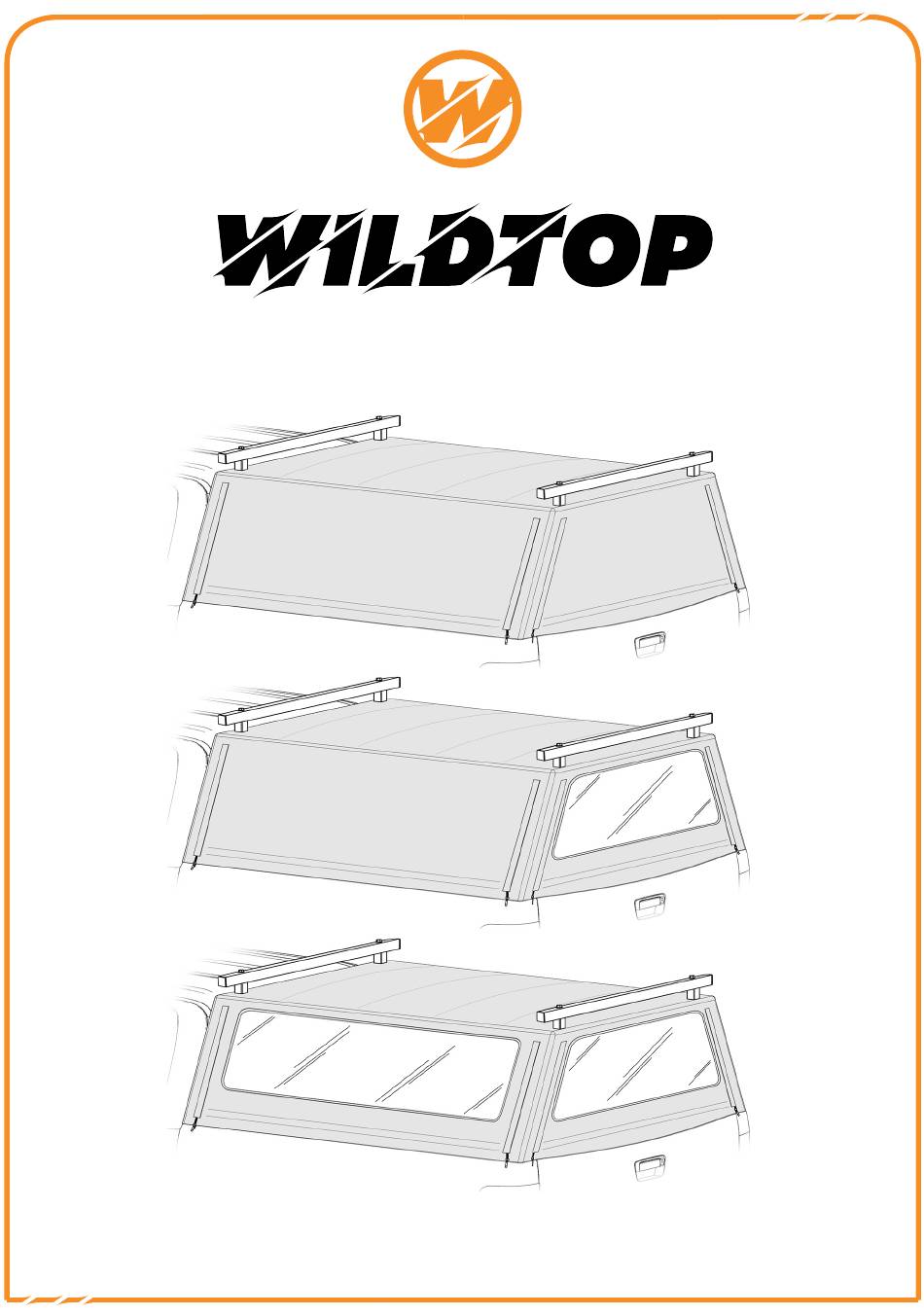

- Page 1 TRUCK CAPS INSTALLATION GUIDE 1 of 11...
- Page 2 PART NO: WT11636 PART DESCRIPTION: Ford Ranger, 2023-Current, 61.0in Bed, Wildtop Truck Cap PARTS IN THE BOX CATEGORY LEGEND - Bracket Frame Exterior Rack Canvas PART NAME PART DESCRIPTION QUANTITY ILLUSTRATION Base Bracket The base bracket connects the frame to the Lower Longitudinal (LH + RH) Rail of canopy frame.
- Page 3 HARDWARE IN THE BOX Note: Some supplied hardware in the kit may not be needed. Self Paint Spacer Rubber Surface Velcro Bolt Washer Hex Head Galvanized Tapping Protection Bolt Fiber Gasket Bolt Cleaning Bolt Washer Screw Disc Washer Wipe TOOLS REQUIRED Phillips Head Drill Bit Hex Key...
- Page 4 OVERVIEW Check the orientation of VERY IMPORTANT! these corner connectors. All press studs face inwards These holes remain unused at this stage, for the Ladder Rack to be installed in a later step. 17mm A x12 B x12 C x12 17mm A x8 B x8...
- Page 5 OVERVIEW All press studs face inwards 17mm A x8 B x8 C x8 5 of 11...
- Page 6 OVERVIEW Drill Phillips Tape Drill F x8 Marker Drill Bit Measure 6 of 11...
- Page 7 OVERVIEW REAR OF FRAME/VEHICLE The bottom longitudinal rails have asymmetrical mounting nutserts. Check the nutserts as shown for correct front to back orientation to the frame. BOTTOM VIEW OF THE RAILS 13mm D x8 E x8 REAR OF FRAME/VEHICLE Remove the 4 plastic covers from each corner as shown below and store them away.
- Page 8 Refer to next page on how to attach front of cap to front edge of truck bed. �Ensure the canvas roof's seam lines match the frame's top edges, especially the front and back edges, since the roof is cut to the same length as the frame.
- Page 9 HOW TO ATTACH THE FRONT OF CAP TO TRUCK BED Clean any dust or dirt from top front edges of truck bed with clean cloth and then wipe down with surface cleaning wipe. Let the surface dry. Then apply Velcro strips with even firm pressure.
-
Page 10: Maintenance & Care Instructions
MAINTENANCE & CARE INSTRUCTIONS Thank you for choosing a Wildtop truck cap for your vehicle! Our caps are built to last, providing you with the durability and functionality you need. However, to ensure the longevity of your truck cap, it is crucial that you follow these maintenance and care instructions carefully. - Page 11 Send us a photo of your WildTop! Happy with how your truck top turned out? Please send us a photo to: info@wild-top.com IMPORTANT INFORMATION Safety � Ensure the truck cap is completely closed before driving. � Regularly check the tightness of the fasteners.
