Summary of Contents for Golden Technologies PR766

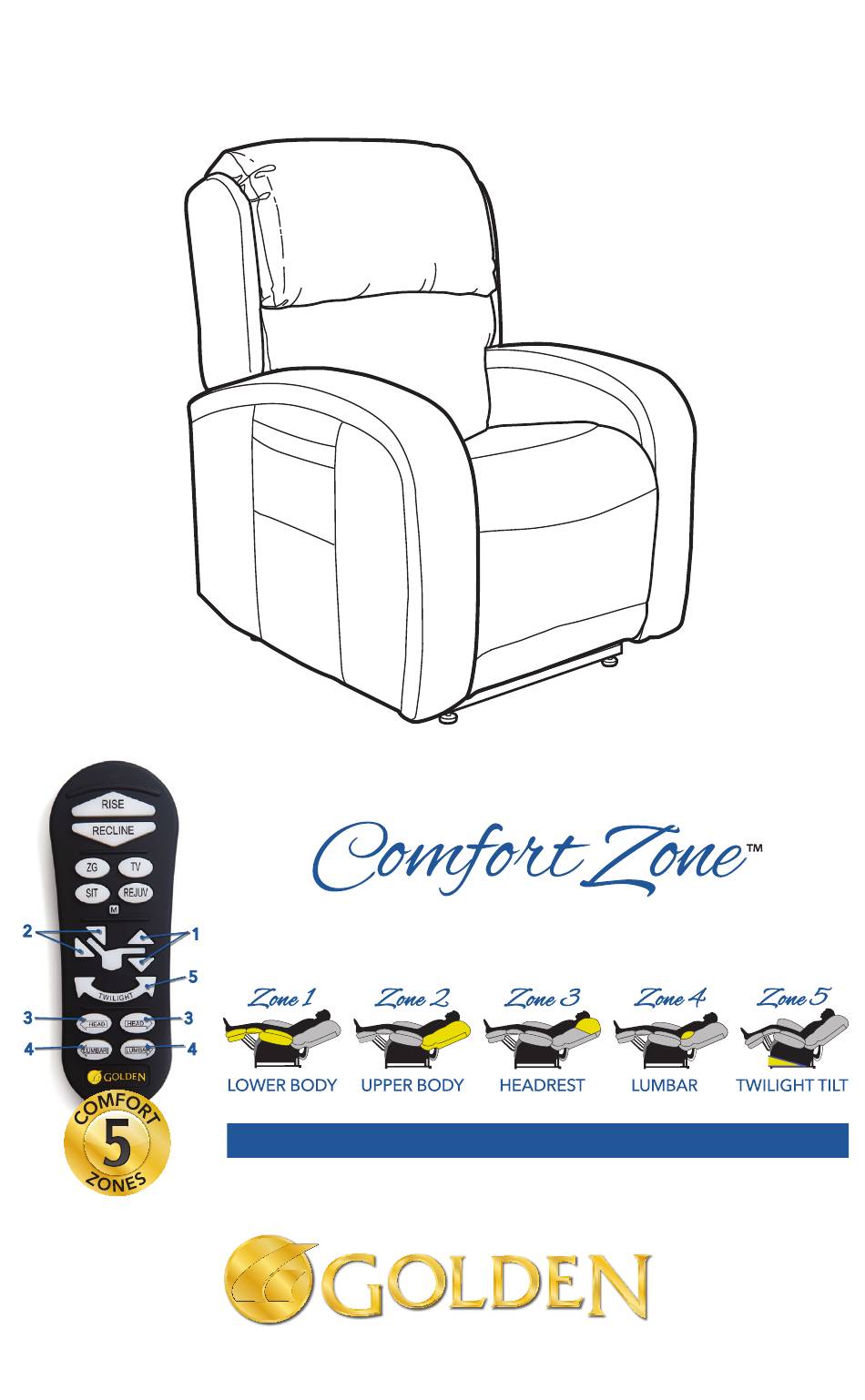

- Page 1 OWNER’S MANUAL by GOLDEN Zone 1 Zone 1 WE PATENTED COMFORT ™ LOWER BODY LOWER BODY Zone 2 Golden Technologies • 401 Bridge Street • Old Forge, PA 18518 Tel: 800-624-6374 • Fax: 800-628-5165 • www.goldentech.com Zone 2...
-
Page 2: Table Of Contents
Intended Use: The intended use of this device is to serve as an electric positioning chair with motorized positioning controls intended for medical purposes. The device may be used in environments such as hospitals and nursing homes, as well as residential homes. The device is used to provide patients with additional stability when rising from a seated position as well as alter postural positions. -
Page 3: Introduction
I. INTRODUCTION Dear Valued Customer, Thank you for purchasing this Golden Technologies recliner. As a family-owned and operated company, we are proud to be the leading manufacturer of power lift recliners in the furniture industry. Our hope is that with this recliner, you will... -
Page 4: Safety
II. SAFETY Safety Guidelines The symbols below are used in the owner’s manual and/or on the product to identify warnings and notify you of important safety information. Make sure you read and understand them completely. WARNING! Indicate(s) a hazardous situation which, if not avoided, could result in death or serious injury. - Page 5 II. SAFETY Class II electrical equipment according to IEC 61140 Indoor use only! Do Not Smoke! Electrical hazard! Do not dispose in trash! Batteries required!
- Page 6 II. SAFETY MANDATORY READ THIS MANUAL FIRST BEFORE INSTALLING OR OPERATING YOUR POWER LIFT AND RECLINE CHAIR. Your power lift and recline chair has been engineered from the leg levelers up to provide the ultimate in strength and reliability. Great care has been taken to provide you with total comfort and safety. Golden Technologies thoroughly inspects and tests each unit prior to shipment.
- Page 7 II. SAFETY Do not operate the chair if there are any persons, pets or other obstructions under or in front of the footrest, under the chair or behind the chair. Do not position yourself, child and/or pet too high on the chair while the chair back is reclined. This can cause a tip over hazard.
- Page 8 II. SAFETY If the lift chair user is unconscious or sleeping the hand control may inadvertently become activated in a way that may force the user out of the chair. Should you ever encounter a problem with the operation of your power lift chair, discontinue all use of the product upon discovery of the problem.
-
Page 9: Your Chair
III. YOUR CHAIR CHAIR COMPONENTS Chairs are equipped with a metal frame, wooden frame, and electrical components. These components vary by model, and electrical components function differently in various models. Please refer to figure 1 below as a reference only. HAND CONTROL: UPHOLSTERED COMPONENTS: Operates the chair via buttons... -
Page 10: Installation
IV. INSTALLATION There are three external power source scenarios depending on the model of your chair. 1. Transformer without battery back up. (Note: An uninterruptible power supply or UPS, may be purchased from an outside source as a battery backup). 2. - Page 11 IV. INSTALLATION CHAIR LOCATION 4. Place your chair in the room where it will be most convenient for you, such as near the television, radio, reading light, end table, or other furniture. Leave enough space between back of chair and wall or other obstruction to allow the chair to recline unobstructed.
- Page 12 IV. INSTALLATION SmartTek™ (Power Indication) Your power lift chair is equipped with either a backlit hand control or a LED light on the hand control indicating power to the hand control. Your power lift chair also comes with a power indicator (LED light) on the transformer and on the power cord connecting the motor to the transformer.
- Page 13 IV. INSTALLATION Back Installation Your chair may come with the back installed or may need to be installed depending on the model of chair. There are three types of back installation: bolt (without back motor), bolt (with back motor) & bracket. If your chair requires back installation, refer to the proper instructions below.
-
Page 14: Bracket Installation
IV. INSTALLATION Back Installation - continued Bracket Installation To install seat back: 1. Align both brackets, located on opposite sides of the seat back under the fabric and the seat. 2. Push the seat back down to lock it into place. Note: An audible click will be heard indicating the brackets are locked. -
Page 15: Operation
Please refer to device manufacturer’s charging requirements before using as some device may not be compatible. Golden Technologies excludes liability for any damages or data loss regarding the charging device on a computer or other electronic device connected to the USB port. - Page 16 V. OPERATION: 6 Button Independently Independently moves moves the backrest the backrest forwards. backwards. Independently Independently lowers raises the footrest. the footrest. If held down long enough, the chair will raise. Lowers the chair. Raises the chair. 1. Getting into your lift chair. While standing next to your chair, press button ( ) and raise the chair to a height you can sit against.
- Page 17 V. OPERATION: This section will cover the following hand controls. Getting into your lift chair. While standing next to your chair, press button (RISE) and raise the chair to a height you can sit against. Raise the chair high enough so you do not have to flop down into the chair. Flopping down into the chair may damage it and could cause personal injury.
- Page 18 V. OPERATION: Tilting Adjustments If your chair is equipped with a cradle, you will be able to tilt the chair with the following buttons. Will tilt the chair Will tilt the chair forward. backward. Headrest and Lumbar Adjustments If your chair is equipped with headrest and lumbar capabilities, you can adjust them with the following buttons.
- Page 19 V. OPERATION: Preprogrammed Memory Positions NOTE:If your chair is equipped with a cradle you will have ZG+ and REJUV. IF you chair is not equipped with a cradle you will have ZG and SLEEP. ZG – Zero Gravity offers a supportive feeling of weightlessness. ZG+-Zero Gravity + offers a supportive feeling of weightlessness combined with the tilting motion of the cradle.
- Page 20 V. OPERATION: Hand Control Disable Disables all functions on the hand control. 1. Hold the M button until the hand control back light starts to flash. 2. Press the buttons in sequential order as shown in the photo to the right. 3.
-
Page 21: Compartments And Features
VI. COMPARTMENTS AND FEATURES Your chair may be equipped with some of the following compartments and features. Storage Compartment Storage Compartment USB Port Some chairs may have a Wireless Charger and Device Mount or a Cup Holder Cup Holder Device Mount Cup Holder Wireless Phone... -
Page 22: Care And Maintenance
VII. CARE AND MAINTENANCE Your lift chair will require routine maintenance checks. You can perform some of these checks, while others may require assistance from a retailer. By following these maintenance checks, you can make sure your lift chair gives you years of trouble-free operation. -
Page 23: Emi/Rfi
EMI/RFI. • If unintended movement, turn your lift chair off as soon as it is safe to do so. • Report all incidents of unintended movement to your Golden Technologies representative or to Golden Technologies. - Page 24 VIII. EMI/RFI Continued...
-
Page 25: Fcc Rules Part
VIII. EMI/RFI Continued FCC Rules Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 26: Questions And Answers
IX. QUESTIONS AND ANSWERS Lift Chair FAQS What is a three-position lift chair? With a three-position lift chair, when the chair is reclining and the footrest is going up, the backrest reclines back farther, opening the angle between the backrest and the seat. -
Page 27: Basic Troubleshooting
X. BASIC TROUBLESHOOTING Problem Possible Cause Solution Lift chair does Transformer not • Check that all wire(s) are fully connected. not function plugged into wall. • Reconnect wire(s) if needed. at all. Wire(s) from transformer to lift chair unplugged. Wall outlet does not •... - Page 28 X. BASIC TROUBLESHOOTING Problem Possible Cause Solution Hand control Hand control • Visually check hand control for physical buttons do damaged. damage. not illuminate. • Contact retailer for replacement if necessary. Hand control • Contact retailer for replacement. defective. Lights Out feature •...
-
Page 29: Product Registration
PRODUCT REGISTRATION Cut along dotted line and mail to: Golden Technologies, 401 Bridge Street, Old Forge, PA 18518 CUSTOMER INFORMATION RETAILER INFORMATION FIRST NAME LAST NAME RETAILER NAME ADDRESS RETAILER ADDRESS ADDRESS 2 ADDRESS 2 CITY STATE CITY STATE EMAIL ADDRESS... - Page 31 Notes...
-
Page 32: For Your Records
FOR YOUR RECORDS Please fill in your Power Lift & Recline Chair information below. This information will be useful in the event that you should ever need to contact Golden Technologies, Inc. concerning your lift chair. Date of Purchase ____________________________________________ Model _____________________________________________________ Serial Number ______________________________________________ Your Golden Technologies, Inc.
