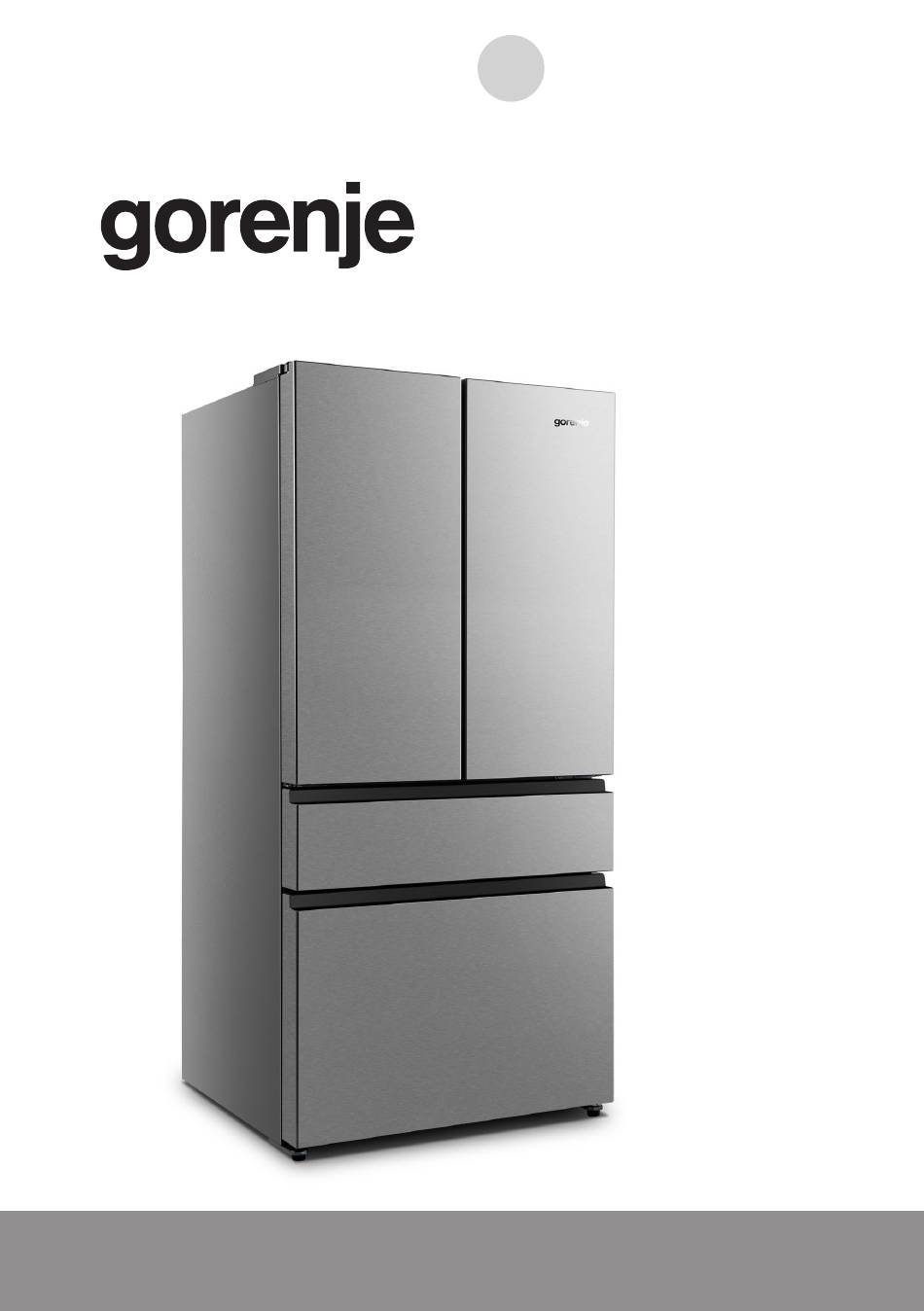

- Page 1 DETAILED INSTRUCTIONS FOR USE OF UPRIGHT REFRIGERATOR AND FREEZER www.gorenje.com www.gorenje.com...
- Page 2 Please visit our website where you can enter your appliance model number, indicated on the rating plate or the warranty sheet, to find detailed description of your appliance, tips on use, troubleshooting, service information, instructions for use etc. http://www.gorenje.com Important safety warning...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION 4 IMPORTANT NOTES AND PRECAUTIONS 4 SAFETY AND WARNING INFORMATION APPLIANCE 11 INSTALLING YOUR NEW APPLIANCE DESCRIPTION 13 APPLIANCE DESCRIPTION 14 OPERATING THE APPLIANCE 17 USING YOUR APPLIANCE DEFROSTING 21 HELPFUL HINTS AND TIPS AND CLEANING THE APPLIANCE 22 CLEANING AND CARE MISCELLANEOUS 24 TROUBLESHOOTING... -
Page 4: Important Notes And Precautions
IMPORTANT NOTES AND PRECAUTIONS SAFETY AND WARNING INFORMATION For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. - Page 5 According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
- Page 6 • WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •...
- Page 7 flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. • WARNING — Refrigerators contain refrigerant andgases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition.
- Page 8 • You must not operate the appliance without the interior lighting lamp cover. • The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C.
- Page 9 • Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. • The appliance is intended for keeping food stuff and/ or beverages in normal household as explained in this instruction booklet The appliance is heavy.Care should be taken when moving it.
- Page 10 Installation Important! • For electrical connection carefully, follow the instructions given in this manual. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.
-
Page 11: Installing Your New Appliance
INSTALLING YOUR NEW APPLIANCE • Before using the appliance for the fi rst time, you should review the following tips. Ventilation of appliance In order to improve effi ciency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. - Page 12 • Stand you appliance in a dry place to avoid damage moisure. • Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as stoves, fi res or heaters. Leveling of appliance •...
-
Page 13: Appliance Description
APPLIANCE DESCRIPTION 1. Door Rack 10. Moisture Fresh Crisper 2. Rotary Separator 11. Pantry 3. Door Rack 12. Convert 4. Door Rack 13. Freezer 5. Pantry Cover 14. Freezer Upper Drawer 6. Electronic Control 15. Freezer Lower Drawer 7. Tempered Shelves 16. -
Page 14: Operating The Appliance
OPERATING THE APPLIANCE Use your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the control panels showed in the pictures below. When the appliance is powered on for the first time, the backlighting of the icons on the display panel starts working. If no buttons have been pressed and the doors are closed, the backlighting will turn off. - Page 15 1. Fridge Press »ZONE« repeatedly until Fridge icon lights up and then press »TEMP« repeatedly to set your desired fridge temperature between 8 °C and 2 °C, the temperature will decrease 1 °C with each press and the fridge temperature indicator will display corresponding value according to the following sequence.
- Page 16 5. Super Freeze Super Freeze can rapidly lower frozen temperature and freeze your food substantially faster than usual. This feature also helps to keep vitamins and nutrition of fresh food for longer periods. Press 'MODE' to activate this function. The "Super Freeze" icon will be illuminated, and the freezer temperature indicator will display -24 °C.
-
Page 17: Using Your Appliance
USING YOUR APPLIANCE Your appliance has the accessories as the »Description of the appliance” showed in general, with this part instruction you can have the right way to use them. Door rack It is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. - Page 18 Crisper cover • It is for avoiding the vegetable losing moisture. You can adjust the humidity inside the crispers by using the sliding block. Crisper and humidity control • The humidity control adjust the airfl ow in the crisper; higher airfl ow results in lower humidity.
- Page 19 To avoid contamination of food, please respect the following instructions • Opening the door for long periods can cause a signifi cant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Page 20 –6 0 0 star Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably not later than 3 days) . Partially packed/wrapped up encapsulated processed foods (non-freezable foods) –2 +3 Chill Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.
-
Page 21: Helpful Hints And Tips
HELPFUL HINTS AND TIPS Energy saving tips We recommend that you follow the tips below to save energy. • Try to avoid keeping the door open for long periods. • Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.) •... -
Page 22: Cleaning And Care
CLEANING AND CARE For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months). Warning! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket. - Page 23 Warning! Do not use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket. Door seals cleaning Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door.
-
Page 24: Troubleshooting
TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service. Warning! Don't try to repair the appliance yourself. - Page 25 Problem: Possible cause & Solution It is normal to frequently hear the sound of the motor, it will need to run more during following circumstances: • Temperature setting is set colder than necessary. The motor runs • Large quantity of warm food has recently been continuously stored within the appliance.
-
Page 26: Disposal Of The Appliance
Gorenje, d.o.o. Partizanska 12 SI - 3320 Velenje, Slovenija info@gorenje.com...
