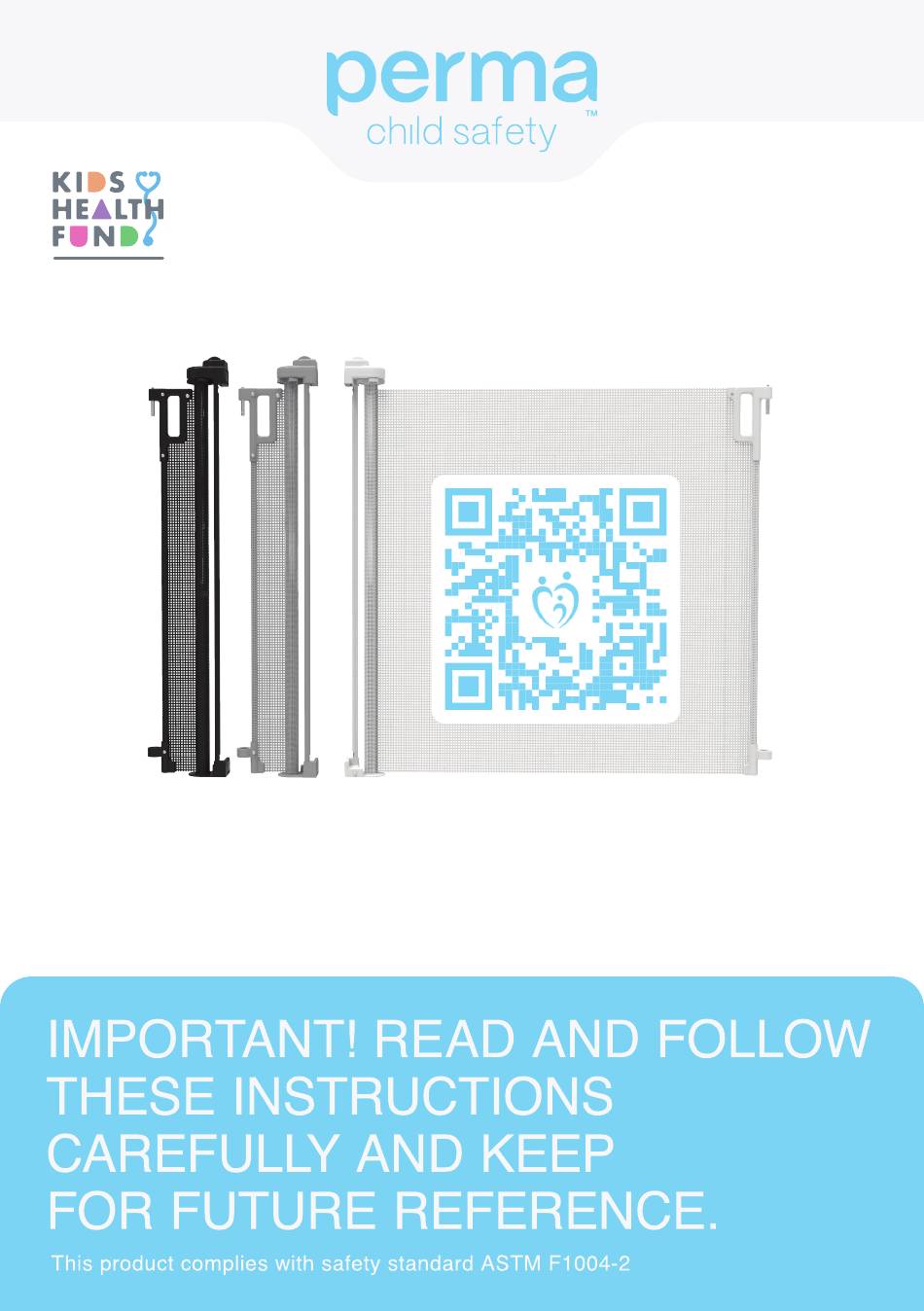

- Page 1 White #2691 Ultimate Black #2692 Gray #2693 Better Lives for Kids Retractable Gate Quick & Easy Install Video Min 33cm - Max 200cm Wide / 98cm Tall (Min 13” - Max 79” Wide / 38.6” Tall)
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION General Maintenance Warnings - Installation Warnings - Operation / Maintenance Mountings Stair Mounting Wall Mounting WHAT’S IN THE BOX Parts INSTALLATION Gate Placement Spacers for Skirting or Baseboard Installation Guides Gate Mounts / Catch Mounts Attach / Remove OPERATION Locking Mechanism / Mesh Tensioning... -
Page 3: Safety Information
SAFETY INFORMATION GENERAL The correct use, installation and maintenance of this product is crucial. Carefully read this instruction manual and keep in a safe place for future reference. MAINTENANCE Regularly check that the gate is functioning correctly, lubricate hinges and moving components. Tighten and adjust mounts to ensure secure smooth operation. -
Page 4: Warnings - Installation
WARNINGS INSTALLATION Adult assembly required. Incorrect installation can be dangerous. The safety barrier must not be fitted across windows. Barrier must be fitted between rigid surfaces such as plaster board, timber or hard wall. To prevent serious injury or death, securely install gate or enclosure and use according to manufacturer's instructions. -
Page 5: Warnings - Operation / Maintenance
WARNINGS OPERATION Before using this product, carefully inspect for any loose parts and whether parts needs to be tightened. Do not use the safety barrier if any components are damaged or missing. Use only with the locking/latching mechanism securely engaged. Danger to older children if climbing over the product. -
Page 6: Tools Required
SAFETY INFORMATION TOOLS REQUIRED PHILLIPS HEAD PENCIL SCREW DRIVER DRILL MOUNTINGS Gate must be installed in a structurally sound opening. Ensure mounting surface (wall, door, stair post, etc.) is strong, rigid and has an even mounting surface. If unsure, check with a qualified builder or trades person that the installation you intend is suitable and safe. -
Page 7: Stair Mounting
SAFETY INFORMATION STAIR MOUNTING Suitable placement on stairs TOP OF STAIRS If safety barrier is used at top of the stairs, it should not be positioned below the top level. NOTE: Ensure gate is mounted minimum 25cm / 10” from top step tread. MIN 25cm / 10”... -
Page 8: Wall Mounting
SAFETY INFORMATION WALL MOUNTING Select the appropriate fixing method from the list below. DRYWALL - WITHOUT SUPPORT CAUTION: Do not mount without support. Suitable dry wall / plasterboard fixings are required DRYWALL / PLASTERBOARD MOUNTING Use included Screws NOTE: Locate the stud / support, ensure to drill through 2. -
Page 9: What's In The Box
WHAT’S IN THE BOX PARTS 1 x Upper Catch Mounts 1 x Gate Assembly 2 x Installation Guides 1 x Lower Catch Mounts 3 x Gate 3 x Catch 2 x Gate Mounts Mount Spacers Mount Spacers 4 x 50mm (2”) 4 x 50mm (2”) 8 x Anchors Gate Mount... -
Page 10: Installation
INSTALLATION GATE PLACEMENT INSIDE OPENING OR DOORWAY NOTE: This placement is easier to operate gate from both sides. OUTSIDE OPENING OR DOORWAY NOTE: Catch Mounts & Gate Mounts are outside of the opening or doorway. Suitable for some stair installs. ANGLED OPENING OR DOORWAY NOTE: Mount up to 180˚. -
Page 11: Spacers For Skirting Or Baseboard
INSTALLATION SPACERS FOR SKIRTING OR BASEBOARDS For base board /skirting boards, Spacers may be required on the upper mounts to create an even mounting surface. Measure the base board / skirting board and use the appropriate number of Spacers for the closest fit. -
Page 12: Installation Guides
INSTALLATION 1. INSTALLATION GUIDES Align Installation Guides vertically, ensuring they are outstretched. Align the ‘Floor’ side level with the floor. Mark the hole position and remove. NOTE: Leave at least 20mm (3/4”) between the Installation Guides and the edge of the opening to ensure gate won’t overhang edge. -
Page 13: Gate Mounts / Catch Mounts
INSTALLATION 2. GATE MOUNTS 3. CATCH MOUNTS Align Upper & Lower Gate Align Upper & Lower Catch Mounts with marked holes. Mounts with marked holes. Secure with Screws. Secure with Screws. Use counter Use pan sunk screw for head screw for Gate Mounts Catch Mounts NOTE:... -
Page 14: Attach / Remove
INSTALLATION 4. ATTACH GATE Align gate above the gate mounts, slide downwards and ‘click’ in place. Always check gate is locked firmly on the mounts. NOTE: Gate may be twisted, fitting gate to mounts will resolve. TO REMOVE Push & hold lower button, simultaneously slide gate upwards. -
Page 15: Operation
OPERATION LOCKING MECHANISM Quick Full Unlock Unlock Push & twist Push & twist knob, release & knob to unlocked extend mesh. position, release & extend mesh. NOTE: Allows quick pull, gate NOTE: Allows pull will lock when back & forth, ensure you stop pulling. -
Page 16: Quick Release
OPERATION EXTENDING Simultaneously guide the upper & lower portions . 1. EXTEND MESH 2. ALIGN PIN 3. PRESS + CLIP IN PLACE RETRACTING Simultaneously guide the upper & lower portions 1. PRESS + HOLD 2. LIFT 3. SLOWLY RETRACT CAUTION: Never let go of the handle QUICK RELEASE while extending / retracting. -
Page 17: Cleaning Instructions / Spare Parts
CLEANING INSTRUCTIONS Simply use a soft damp cloth to wipe gate, then wipe down with a clean cloth to dry. Do not use chemical or abrasive cleaners. SPARE PARTS Catch Mounts Gate Spacers Gate Mounts Banister Kit Scan the QR code to see Spare Parts or visit: permachildsafety.com... -
Page 18: Warranty Certificate
WARRANTY CERTIFICATE Congratulations! You have made an excellent choice of this quality product. Our commitment to quality also includes our service. Should you, contrary to expectations, experience defects due to manufacturing faults, we will provide you with a warranty against defects as follows: WARRANTY Our goods come with guarantees that cannot be excluded under the Consumer Law. -
Page 19: Warranty Card
WARRANTY CARD SUPPORT DETAILS: PRODUCT NAME: Ultimate Retractable Gate PRODUCT NUMBER: White #2691 / Black #2692 / Gray #2693 YOUR NAME: ADDRESS: PHONE: EMAIL: DATE OF PURCHASE: LOCATION OF PURCHASE: We recommend that you keep a copy of your receipt, showing the date of purchase, with this warranty certificate and keep for your reference.
