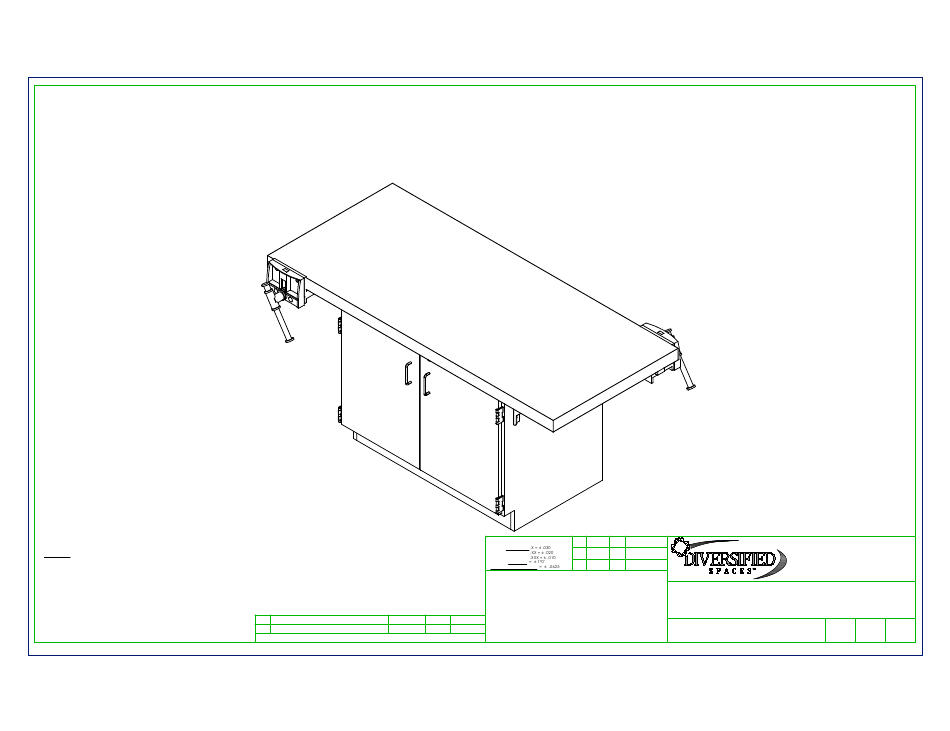

IN HOUSE ASSEMBLY TEMPLATE
WOOD WORKBENCH
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\AutoCAD\Assembly Instructions\WW231 & WW232 SERIES.dwg, 11/3/2021 12:12:18 PM, DWG To PDF.pc3
WW231-0V, WW231-1V, WW231-2V, WW232-0V, WW232-1V, & WW232-2V
ASSEMBLY INSTRUCTIONS
A
CREATED ASSEMBLY INSTRUCTIONS
3/7/14
REV.
DESCRIPTION
DESCRIPTION
DATE
DATE
REVISION LEVEL
ALL DIMENSIONS ARE IN INCHES UNLESS
DWN
EMR
NOTED OTHERWISE
BY:
DWN:
DECIMALS:
APR
BY:
ANGLES:
APR
CABINET SQUARENESS
BY:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
EMR
-
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
NAME
NAME
ECN NO.
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
DATE
3/7/14
DATE
APR:
DATE
APR:
diversifiedwoodcrafts.com
TITLE:
WOOD WORKBENCH
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
WW231 & WW232
300 South Krueger Street
Suring, WI 54174
SCALE:
SHEET:
REVISION:
REV A
NTS
1 OF 10
Advertisement
Related Manuals for DIVERSIFIED SPACES WW231-0V
Summary of Contents for DIVERSIFIED SPACES WW231-0V
- Page 1 IN HOUSE ASSEMBLY TEMPLATE WOOD WORKBENCH WW231-0V, WW231-1V, WW231-2V, WW232-0V, WW232-1V, & WW232-2V ASSEMBLY INSTRUCTIONS ALL DIMENSIONS ARE IN INCHES UNLESS DATE 3/7/14 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE: DATE APR: Suring, WI 54174 ANGLES: DATE CABINET SQUARENESS APR: diversifiedwoodcrafts.com...
-
Page 2: Tools Required
**XX** INDICATES ITEMS USED ONLY FOR THE WW231 UNITS. CONFIDENTIAL: ALL DESIGN RIGHTS RESERVED 1.1. WW231-0V, WW231-1V, & WW231-2V TITLE: THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED WOOD WORKBENCH IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE COMPONENTS VARY WITH STYLE OF WOOD WORKBENCH THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC. -
Page 3: Base Cabinet
IN HOUSE ASSEMBLY TEMPLATE BASE CABINET STEP 1: POSITION BASE CABINET IN DESIRED LOCATION. LEVEL THE CABINET. ANCHOR CABINET TO FLOOR. **NOTE** CABINET MUST BE LEVELED OR DOORS AND DRAWERS MAY NOT OPEN OR CLOSE CORRECTLY. ALL DIMENSIONS ARE IN INCHES UNLESS DATE 3/7/14 NOTED OTHERWISE... - Page 4 IN HOUSE ASSEMBLY TEMPLATE STEP 2: GUSSET - TYPICAL PLACE GUSSET 2" TOWARDS CENTER OF WORKBENCH FOR A TOTAL 2.00 OF 15.50" IN BETWEEN. TOP EDGE OF GUSSET SHOULD BE FLUSH WITH TOP EDGE OF CABINET. ATTACH STEEL GUSSETS TO CABINET WITH HARDWARE PROVIDED. PRE-DRILL HOLES IN SIDES TO PREVENT CRACKING .
- Page 5 IN HOUSE ASSEMBLY TEMPLATE STEP 3: PLACE TOP ON CABINET WITH PROPER OVERHANG (CENTERED ON WORKBENCH). ATTACH TOP TO CABINET AND GUSSETS WITH HARDWARE PROVIDED. SCREW THROUGH INSIDE OF CABINET TO THE TOP. PRE-DRILL HOLES IN TOP TO PREVENT CRACKING . MAKE SURE SCREWS ARE TIGHT AND TOP IS SECURE.
- Page 10 Butcher Block (Varnished Tops) Maintenance & Repair PRODUCT SPILLS • Be sure any spills are cleaned up immediately. Excessive moisture and certain chemicals allowed to stand on a finished surface can cause damage. •. Clean spills or soiled areas with a damp cloth and dry thoroughly. • Periodically, apply a coat of spray wax, paste wax, or lemon oil to finished surface. This will enhance and protect the finish and insure a moisture barrier is intact in the event the finish becomes scratched or worn. SCRATCHES & DENTS • Minor scratches and dents can be easily repaired by rubbing the affected area with steel wool or fine grit (#220) sandpaper. Remember, when rubbing or sanding always sand with the grain of the wood. Feather edges of repair in to the surrounding area. Remove all dust and residue and apply a coat of clear lacquer type finish or paint. Clear lacquer type finish can be purchased at most paint or hardware stores. Small cans of touch-up paint are available form your dealer or representative. Paint colors can easily be matched at most paint stores. Confine touch-up only to the area that was sanded. Remember, follow manufacturing directions on product label when refinishing. • Major scratches and gouges where large portions of wood have been removed or damaged should be handled by a professional experienced in furniture repair with the proper tools and equipment. MINERAL STREAKS • Mineral Streaks – Natural Coloring of wood due to mineral deposits in the tree. Repair is not required and will add to the individuality of your table. Sizes can range up to a 1/4" wide and up to 3" in length.
